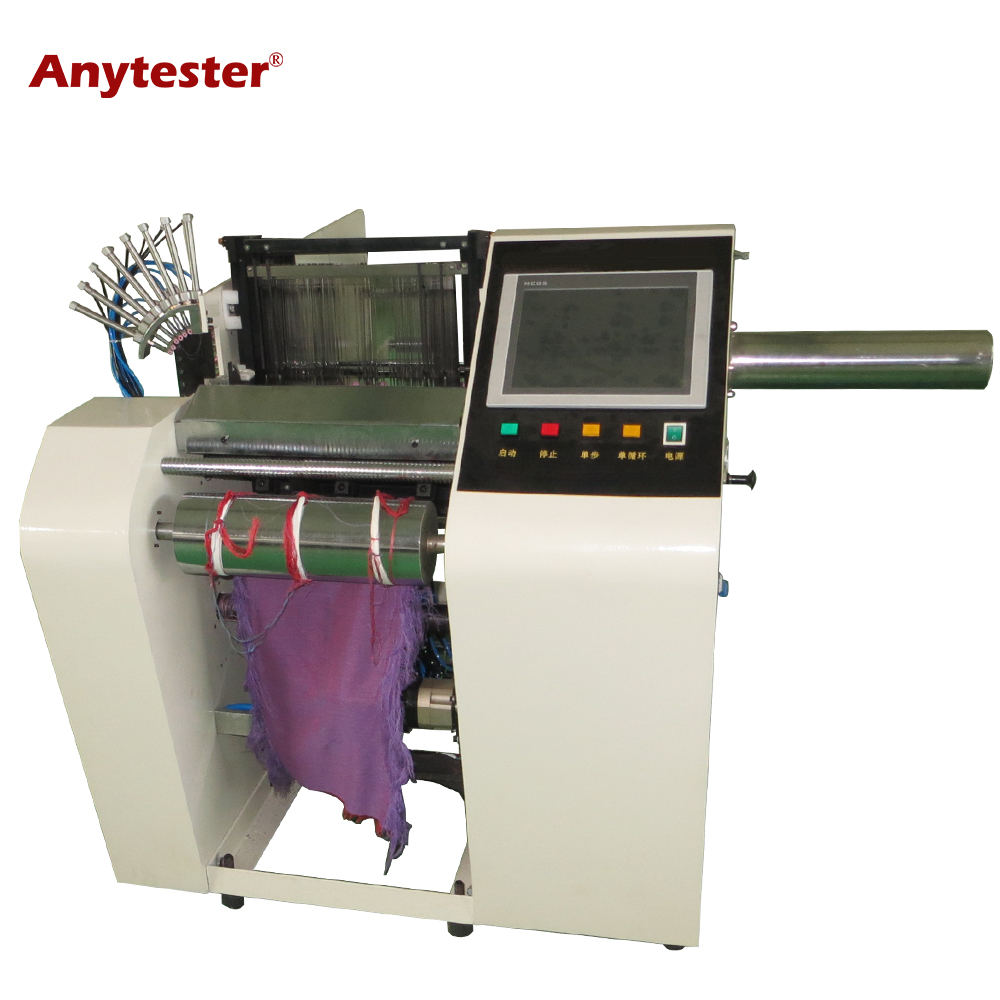

AT248 Automatic Rapier Sample Loom

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
  • AT248

  • Anytester

Availability:

Product Description

AT248 Automatic Rapier Sample Loom is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.


Features

«  PLC control touch screen with 2G memory capacity to store designed patterns;

«  Designable and editable patterns and USB interface to share designed patters;

«  Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;

«  Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;

«  Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;

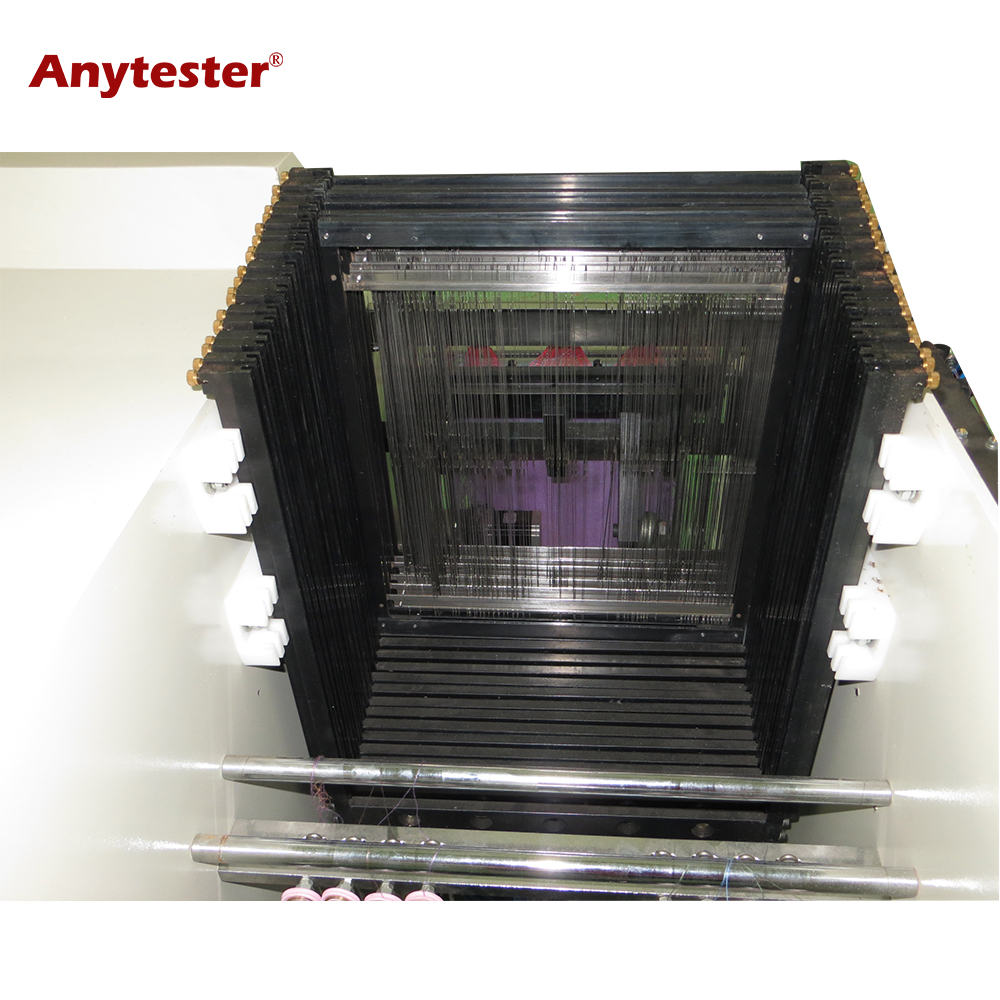

«  Heald frames up to 20pcs, easy to mount and dismount;

«  Automatic pneumatic selection of weft yarns up to 8 colors;

«  Professional software for designing or editing patterns;


Specification

Model

AT248

Reed width

12inches (16, 20, and 24inch, optional)

Yarn linear density range

5~500tex

Weft density

30~45weft/min, selectable

No. of heald frame

4~20

Color selection

8 color, automatic pneumatic control

Let-off

Active electronic control

Take-up

Motor control

Shedding

Dobby shedding, pneumatic control

Beating-up

Motor control

Air pressure

0.45~0.8Mpa

Air consumption

Max. 200L/min

Power

A220V 50Hz, single-phase
