Section 1 Common Dyeing Equipment – part 2

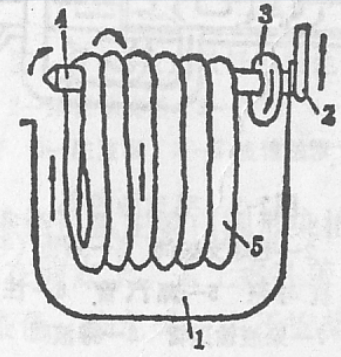

Hank dyeing machine

1. Dyeing tank 2. Support plate 3. Support turntable 4. Triangle rod 5. Hank yarn

Processing characteristics: The dyeing bath ratio is relatively large, and manual operation is required for dyeing and yarn lifting. Open equipment and high steam consumption.

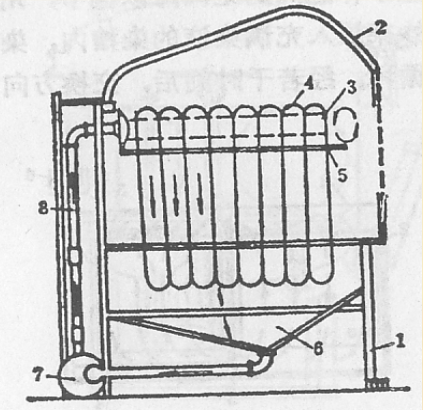

Jet yarn dyeing machine

1- Rack 2- Machine cover 3- Support 4- Hank yarn

5-Rotating rod 6-Dyeing solution tank 7-Water pump 8-Infusion tube

Processing characteristics: The dyeing tank has a small volume; The dyeing bath ratio is relatively small; The dye is not immersed in the dye solution; The loading and unloading operation of hank yarn is convenient; Cover and seal during operation, resulting in relatively less steam consumption; But it is necessary to regularly clean the spray hole to prevent it from being blocked by fiber plush.

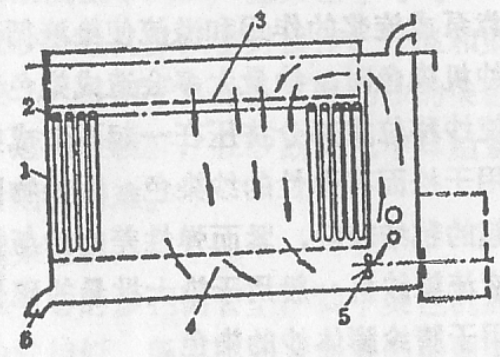

Flow type dyeing machine

1. Dyeing tank 2. Yarn carrier 3. Porous cover plate

4-false bottom 5-propeller 6-discharge hole

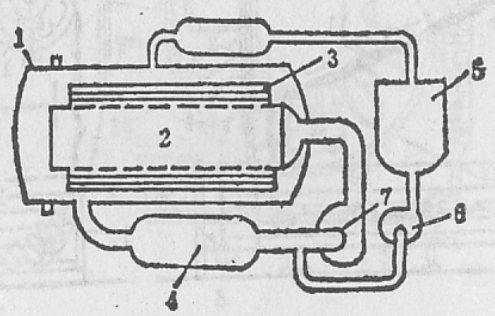

Warp dyeing machine

1. Dyeing tank 2- warp shaft 3- warp yarn 4- circulation pump

5-heater 6-expansion tank 7-distribution tank

The warp dyeing machine is also commonly used for dyeing light and thin fabrics, such as headscarves and warp knitted shirts. Light and thin fabrics have been dyed in a flat roll shape, which is not easy to stretch or crease, and the dyeing effect is good.
