AT235
Anytester
Product Description

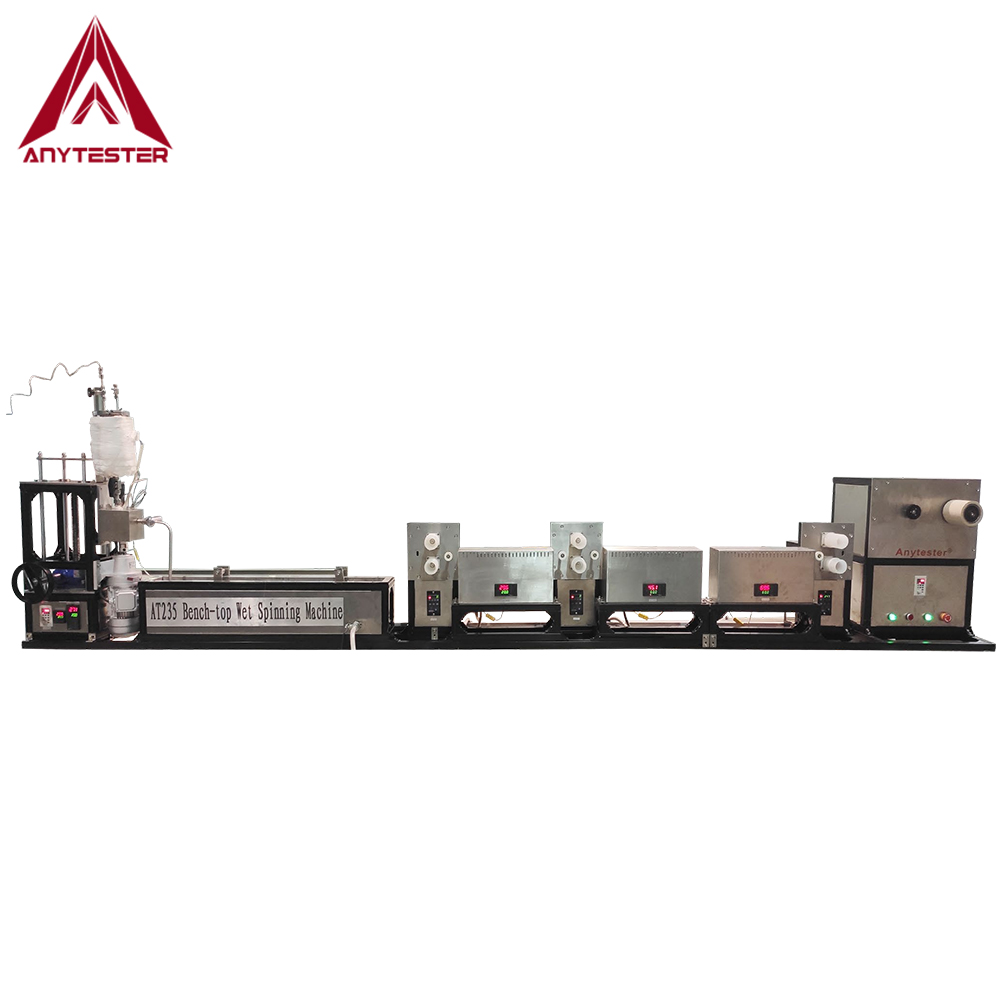

AT235 Bench-top Wet Spinning Machine is used for the production of polymers that need to be dissolved in a solvent to be spun. It is specially designed for researching new material in the field of textile, macromolecule and other material. It consists of pressure vessel, metering pump, gooseneck, spinneret, coagulating bath, conveying rollers, air-heating device, conveying, washing bath, slow drawing rolls and thermal-setting device, fast drawing rolls and winding device.
Features
★ Manual lifting platform to move the spinning solution tank, dosing pump, gooseneck and spinneret up or down together;

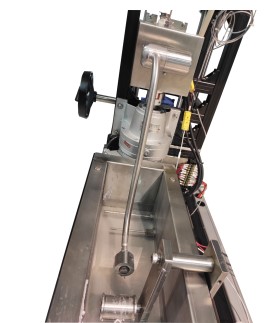

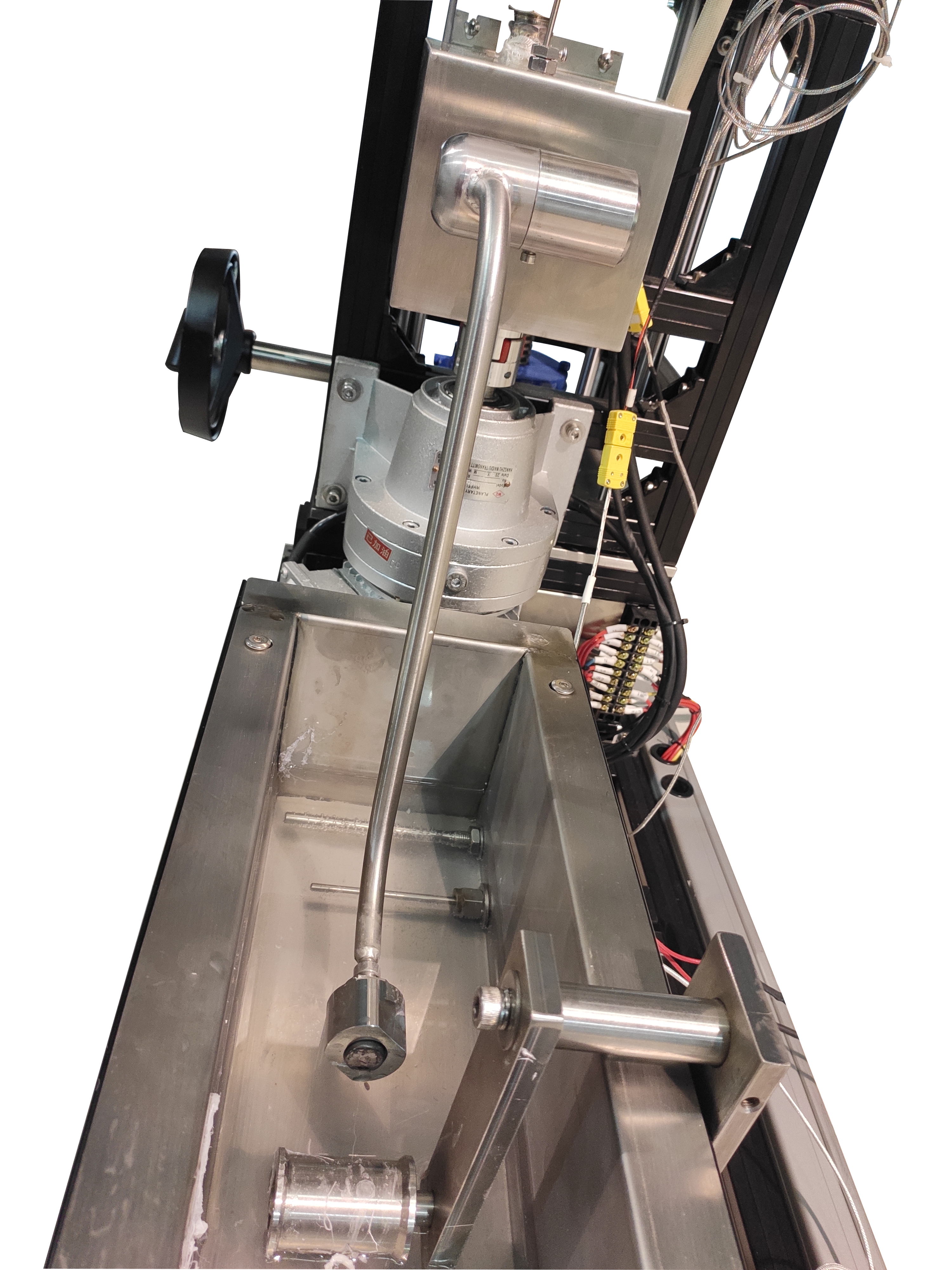

★ 316L stainless steel gooseneck and coagulating bath;
★ Coagulating bath with two filament pressing rollers and optional heating system;
★ Optional heating system for coagulating bath;

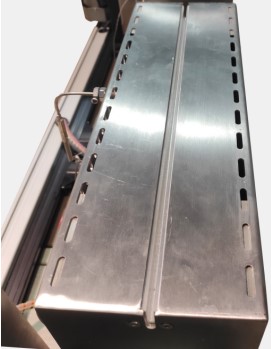

★ Heating slot adopts non-touch air heating;
★ Nylon drafting rollers with adjustable rotation speed;
★ The whole line adopt quick joint connecting, it’s easy to assemble;
★ It can simulate the whole process;
★ Mini size, save space;
Technical Specification
Model | AT235 customized | |
Solution tank | Capacity: 3 Liter | |
Material: 316L stainless steel | ||
Maximum pressure: 1Mpa (10Bar) | ||
Temperature range R.T ~ 95℃ | ||
Metering pump | Flow rate: 0.6CC/rev | |
Maximum speed: 40rpm | ||
Gooseneck material | 316L stainless steel | |
No. of spinneret | 1 | |
Spinneret nut | 100 holes, hole dia.: 0.07mm | |
Material: tantalum | ||
Coagulating bath | Inner size | 1700×200×200mm (L×W×H) |
Material | 316L stainless steel | |
Temperature | Max. 70℃ | |
Conveying rolls 1st | Material | Nylon |
Size | Ø70×100mm | |
Number of rollers | 3 | |
Speed | 10~100m/min, adjustable | |
Heating bath 1st | Heating bath length | 458mm |
Temperature | Max. 170℃ | |
Yarn cross way | 3 round trip | |
Conveying rolls 2nd | Temperature range | Max. 150℃ |
Material | Stainless steel | |
Size | Ø70×100mm | |
Number of rollers | 3 | |
Speed | 10~100m/min, adjustable | |
Conveying rolls 3rd | Material | Nylon |
Size | Ø70×100mm | |
Number of rollers | 3 | |
Speed | 10~100m/min, adjustable | |
Heating bath 2nd | Heating bath length | 1000mm |
Temperature | Max. 150℃ | |
Conveying rolls 4th | Material | Nylon |
Size | Ø70×100mm | |
Number of rollers | 3 | |
Speed | 10~100m/min, adjustable | |
Vacuum Chamber | Chamber size | Approx.250*600*150mm |
Mini stretch system | Number of rolls | 5 |
Temperature | Max. 150℃ | |
Size | Ø70×100mm | |
Speed | 10~100m/min, adjustable | |
Winding device | Speed | 10~100m/min, adjustable |
Transverse displacement | 50mm | |
Display method | LCD display | |
Power supply | AC220 50Hz, single-phase | |
