Section 1 Common Dyeing Equipment – part 3

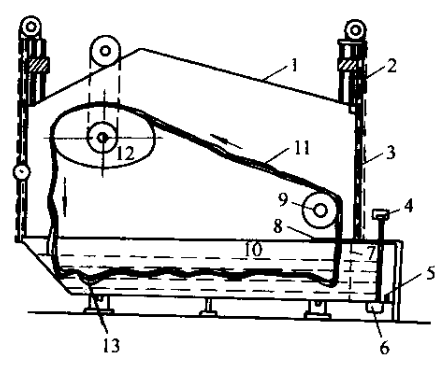

Winch rope dyeing machine

1. Slot cover 2. Pulley 3. Window door 4, 5, 6- Drainage valve 7- Porous plate

8- Distribution grid 9- Passive guide roller 10- Dyeing solution 11- Fabric

12- Elliptical guide plate 13- Dyeing tank

Processing characteristics: The equipment has a simple structure, low price, convenient operation, few mechanical failures, and is easy to maintain. However, entering and exiting the dyeing machine for fabrics requires manual operation, which results in high labor intensity and low output. Its minimum dyeing bath ratio is 1:20 Mainly used for dyeing knitted fabrics.

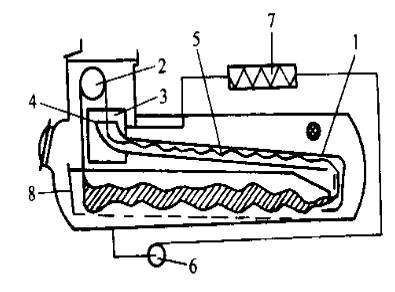

Overflow dyeing machine

1. Fabric 2. Active guide roller 3. Overflow port 4. Overflow groove

5-Overflow distribution pipe 6-Circulation pump 7-Heat exchanger 8-Immersion tank

Processing characteristics: The equipment has a high degree of automation, is easy to operate, and the fabric is in a relaxed state during dyeing, with less tension, uniform dyeing, and a soft hand feel. It can be dyed at room temperature and pressure, and can also be used for high-temperature and high-pressure dyeing. It is mainly suitable for dyeing synthetic fiber knitted fabrics, elastic fabrics, and thin, loose, and elastic cellulose fiber products.

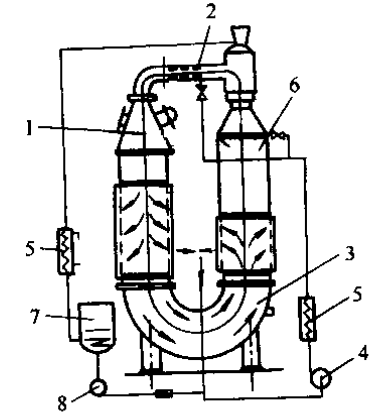

Jet dyeing machine

1. Fabric 2. Nozzles 3. Immersion zone 4. Circulation pump

5-heat exchanger 6-backwash nozzle 7-batching drum 8-feeding pump

The difference between jet dyeing machine and overflow dyeing machine

The main difference is that the rise of the fabric in the overflow dyeing machine is driven by the active guide roller, while the rise of the fabric in the jet dyeing machine is driven by the jet dye, so the tension on the fabric is smaller, the tension on each part is more uniform, and the dyeing feel is softer. But the operation requirements of this device are high, and suitable nozzles need to be selected according to different specifications of fabrics. If not mastered properly, it is easy to cause fabric blockage.

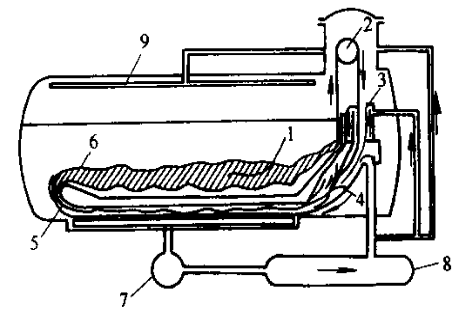

Jet overflow dyeing machine

1. Fabric 2. Guide roller 3. Overflow port 4. Nozzles 5. Cloth conveying pipeline

6-impregnation tank 7-circulation pump 8-heater 9-spray pipe

Features: The dyeing machine has both an overflow device and a spraying device. Compared with overflow dyeing machines, fabrics are subjected to less tension, have a smaller dyeing bath ratio, have faster circulation speed between dye solution and fabric, and have better levelness. Compared with jet dyeing machine, the operation is relatively simple, but it is easy to produce a lot of foam.
