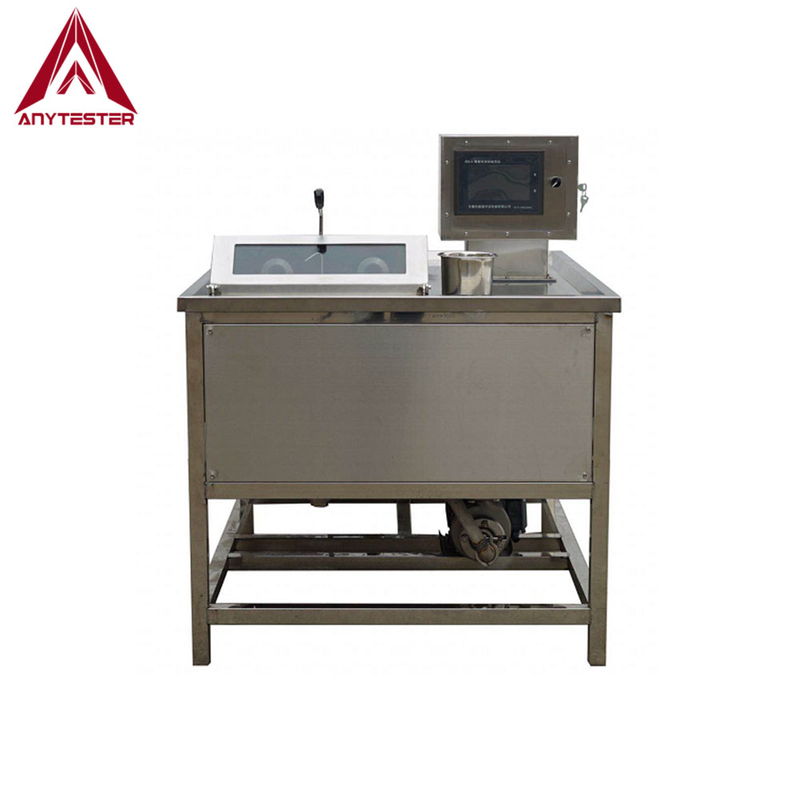

AT275 Lab Winch Dyeing Machine

AT275 Lab Winch Dyeing Machine is designed for laboratory use of dyeing, boiling off, bleach and washing, etc. processing for all kinds of fabric of blinding up to 100℃, and for the application of dyeing and processing for rayon, polyacry-nitrile fiber, and blended fabric under normal temperature& normal pressure
  • AT275

  • Anytester

Availability:

Product Description

AT275 Lab Winch Dyeing Machine is designed for laboratory use of dyeing, boiling off, bleach and washing, etc. processing for all kinds of fabric of blinding up to 100℃, and for the application of dyeing and processing for rayon, polyacry-nitrile fiber, and blended fabric under normal temperature& normal pressure


Features

★ New dye split flow system in the dyeing bath, ensuring the stable and sequential flow of fabric in the dyeing bath, no knotting, enhancing the time of fabric in the dyeing bath and the dyeing capacity;

★ Applicable to fabrics of 25dtex~600dtex polyester filament PFY, polyester elastic yarn, polyamide filament, polyamide elastic yarn, composite filament and super-fine fiber;

★ Whole body made of stainless steel, solid and durable, reasonable structure, stable running and no mechanical noise;

★ Full-close dyeing, no pollution to the working environment;

★ Microcomputer and touch screen control, complete function, simple operation, convenient to adjust dyeing process and strong adaptability;

★ Full protection to motor default phase, over-current and water lack;

★ Temperature sensor with high precision temperature controlling accuracy and temperature measurement resolution;

★ HMI operation interface and touch screen display of the whole process and parameters of dyeing process, convenient to operate and manage.


Technical Specification

Model No.

AT275

Applicable range

Fabrics made of 25dtex~600dtex polyester filament PFY, polyester elastic yarn, polyamide filament, polyamide elastic yarn, composite filament and super-fine fiber

Dyeing capacity

2×1000g fabric belt/batch

Or 2×(60m~100m) fabric belt/batch

Nozzle specification

Ф20mm, Ф25mm or Ф35mm

Volume of dyeing bath

80L

Liquid ratio

1:20

Temperature controlling accuracy

0.1℃

Temperature resolution

0.1℃

Dyeing time

About 100minute

Power supply

AC380V±10% 50Hz, 13KW

Dimensions

1250×1000×1280mm (L×W×H)
