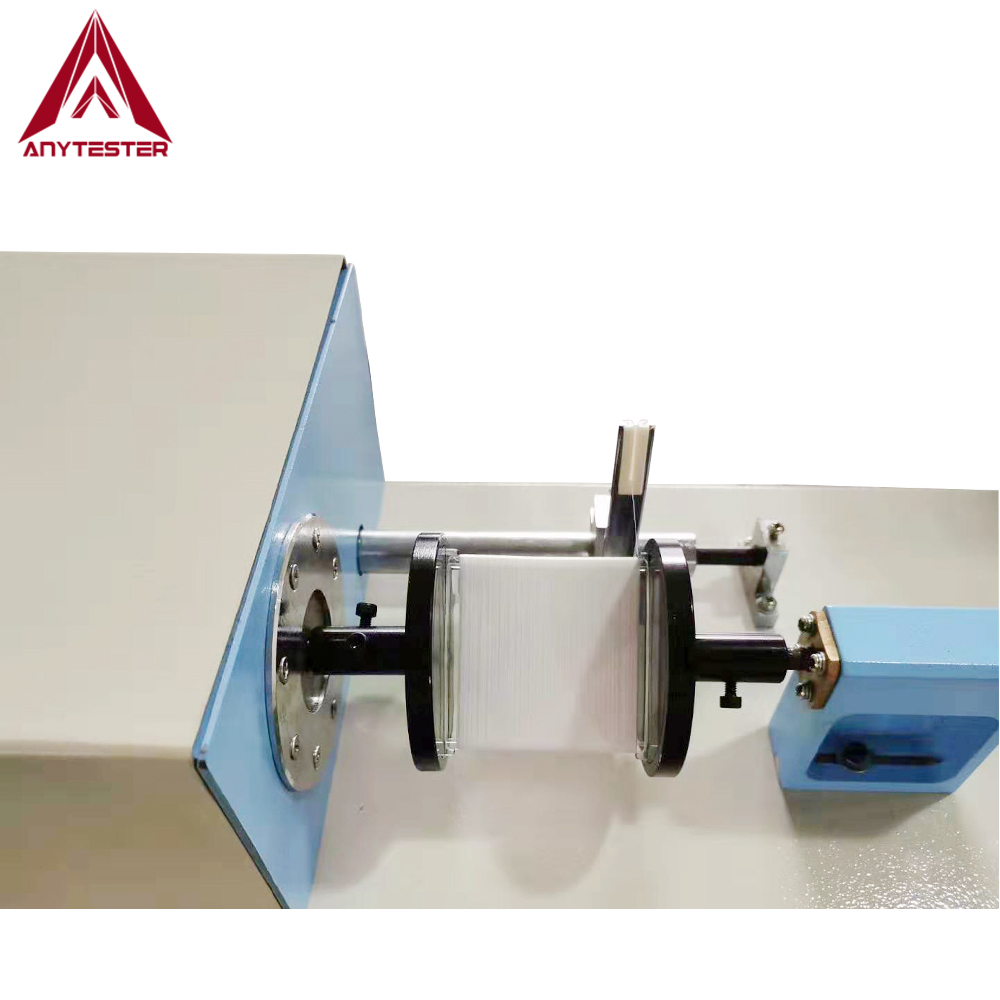

HY0108 Yarn Sample Winder

HY0108 Yarn Sample Winder is used for production of colored sample cards. It is suitable for winding various yarns, such as woolen yarn, cashmere, decorative thread or other common yarns.

  • HY0108

  • Anytester

Availability:

Product Description

HY0108 Yarn Sample Winder is used for production of colored sample cards. It is suitable for winding various yarns, such as woolen yarn, cashmere, decorative thread or other common yarns.


Features

★It adopts 16 digit SCM control system, LCD displayer with back light, variable-frequency regulating technology to make sample cards more beautiful and regular.

★ It can set and display yarn diameter, winding width, winding speed, etc.

★ 1~30 working position selectable according to customer’s different requirement.

★ Equipped with mechanical pretension device, control system and yarn creel.

★ Easy to operate and maintain, more intelligent


Technical Specification

Model

HY0108

Winding position

1~20 or customized

Winding width

0~80mm or customized

Winding length

≤300mm or customized

Winding speed

0~1100r/min adjustable

Suitable yarn diameter

0.03~3.58mm

Winding mode

Can store 6 groups of winding mode

Power supply

AC220V, 50Hz

Weight

60kg
