AT010
Anytester
Product Description
AT010 Series Rotawash Color Fastness Tester is used to determine color fastness to washing or day cleaning
Standards
AATCC 61 /86 /132 /151 /190 | NEXT 2/3/5 | BS 1006 |
M&S C4A /C5 /P3B /C10A/C11/C26/C37/C49A/P137 | ISO105-C01/C02/C03/C04/C06/C07/C08/C09/D01/E03/E12 | IWSTM 7/ 115/ 177/ 193/ 199/ 240/ 241 |
FTMS 191-5610/5622 | JIS L0884 | GB/T 3921/5711 |
Features
★ Touch screen control heating temperature, running time etc.
★ Internal chamber adopt 304 stainless steel material
★ Build-in 5 test program, save operate time and 3 programmable test to meet more request from customer.
★ Technical date real-time display
★ Key parts adopt imported components
★ Temperature adopt self-calibration to avoid deviation
★ The machine equipped with door status detect device, the machine will stop running when the door was open to protect operator

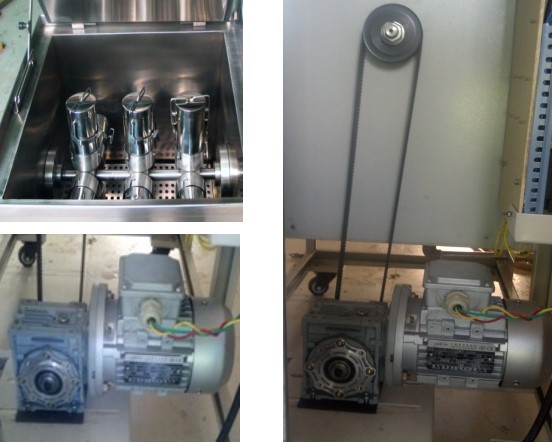

★ Adopt timing-belt to keep he machine working precision and quietly. The bearing is install out of working chamber to avoid damage.
★ Provided with 550ml washpot for ISO/GB test or 1200ml washpot for AATCC as standard configuration
Technical Specification
Model | AT010 Series |
Washpot capacity | ISO: 550ml, AATCC: 1200ml |
Washpot number | 8, 12, 14, 16, 18, 24 pcs selectable |
Speed of rotation rack | 40r±2r/min |
Preset time | 0.1~999.9min |
Time control error | ＜0.1min |
Heating power of working chamber | 1500w×3 |
Heating power of preheating chamber | 1000w×3 |
Temperature control range | RT~95℃ |
Temperature control accuracy | ±2℃ |
Power supply | AC380V, 50Hz |
Dimensions | 1150*600*1000mm (with pre-heating tank) 650*600*1000mm (without pre-heating tank) |
Weight | 128kg (with pre-heating tank) 75Kg (without pre-heating tank) |
