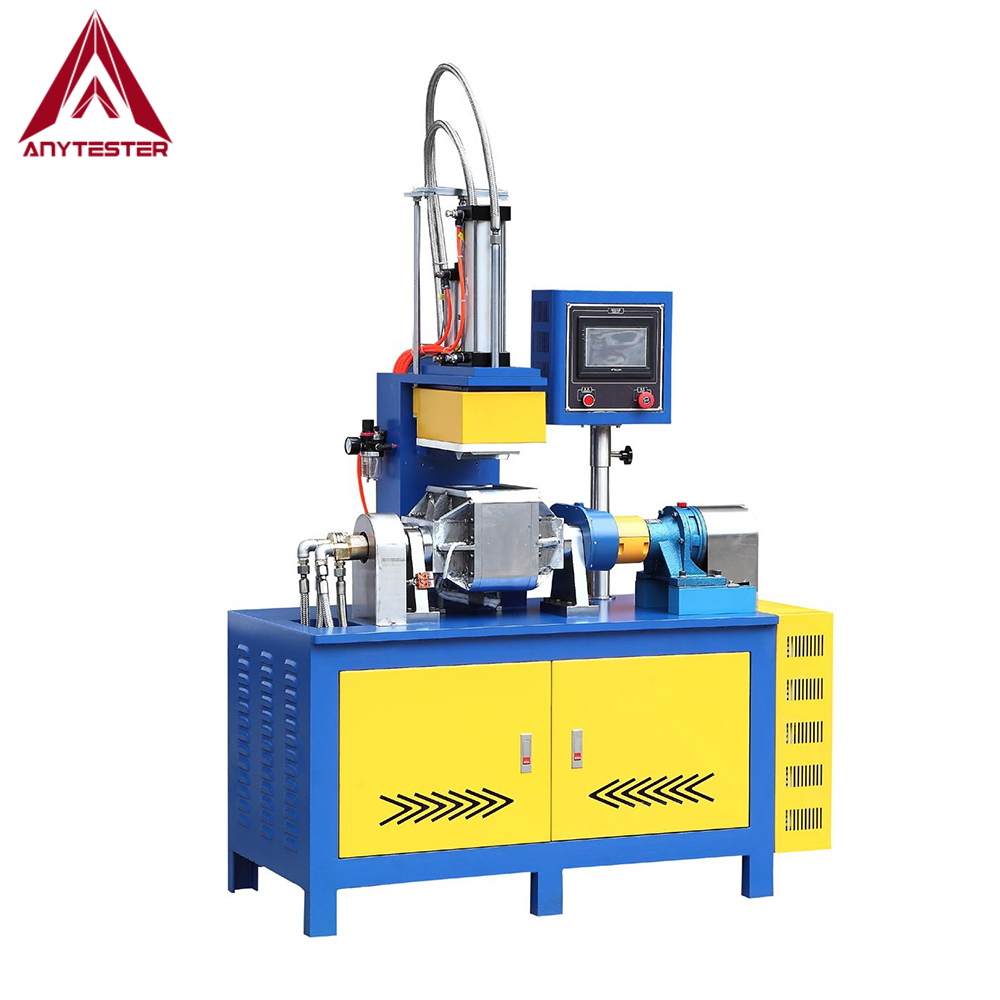

AT388
Anytester
Availability: | |
---|---|
Product Description
AT388 Series Banbury Mixer is used for plasticizing, scattering and mixing of rubber products, industrial chemicals and plastic products, such as rubber ring, rubber belt, PVC, color masterbatch, cable materials, etc.
Features
★ PLC control, self-examination, alarm and interlock function
★ Large color touch screen control, programmable, real time display time, temperature, torque (HY3880B).
★ It has real time discharge function during working to avoid motor stop and start frequently, it can protect the motor and make it work for long time
★ Adopt hard surface planetary reducer, excellent quality
★ Electric heating or/and water cooling optional for one machine
★ Different mixing capacity selectable
★ Excellent mixing effect, high efficiency
★ Easy to operate and maintain, lower power consumption, stable and safe
Technical Specification
Model | AT388A | AT388B |
Volume | 3L | |
Display | LED | Color touch screen |
Main motor | 5.5kw | |
Heating method | Electric | |
Heating power | 2.5kw | |
Temperature range | RT~260℃ | |
Dumping angle | 135° | |
Dumping motor | 0.75kw | |
Compressor motor | 2.2kw | |
Speed ratio of front and back rotors | 1:1.27 or customized | |
Rotor speed | 0 ~ 50RPM adjustable | |
Rotor hardness | HRC 60 crmoly | |

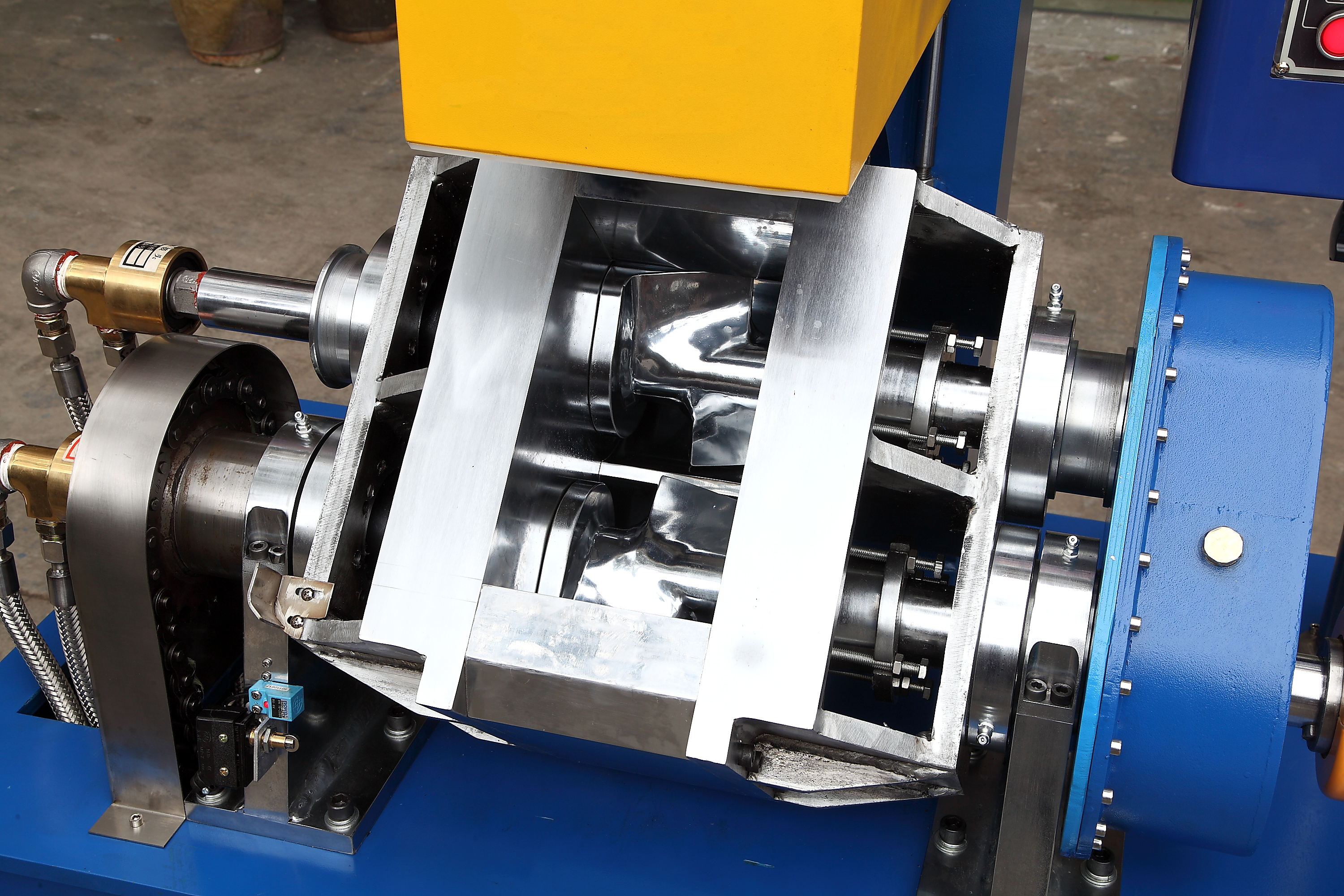

Mixing room | SKD crmoly with HRC60 hard chrome | |
Air pressure | 0.5 ~ 0.8Mpa | |
Power supply | 3phase, AC220/380V, 60/50Hz | |
Dimensions | 1450×700×2200mm | |
Weight | 980kg |
