AT395
Anytester
Product Description

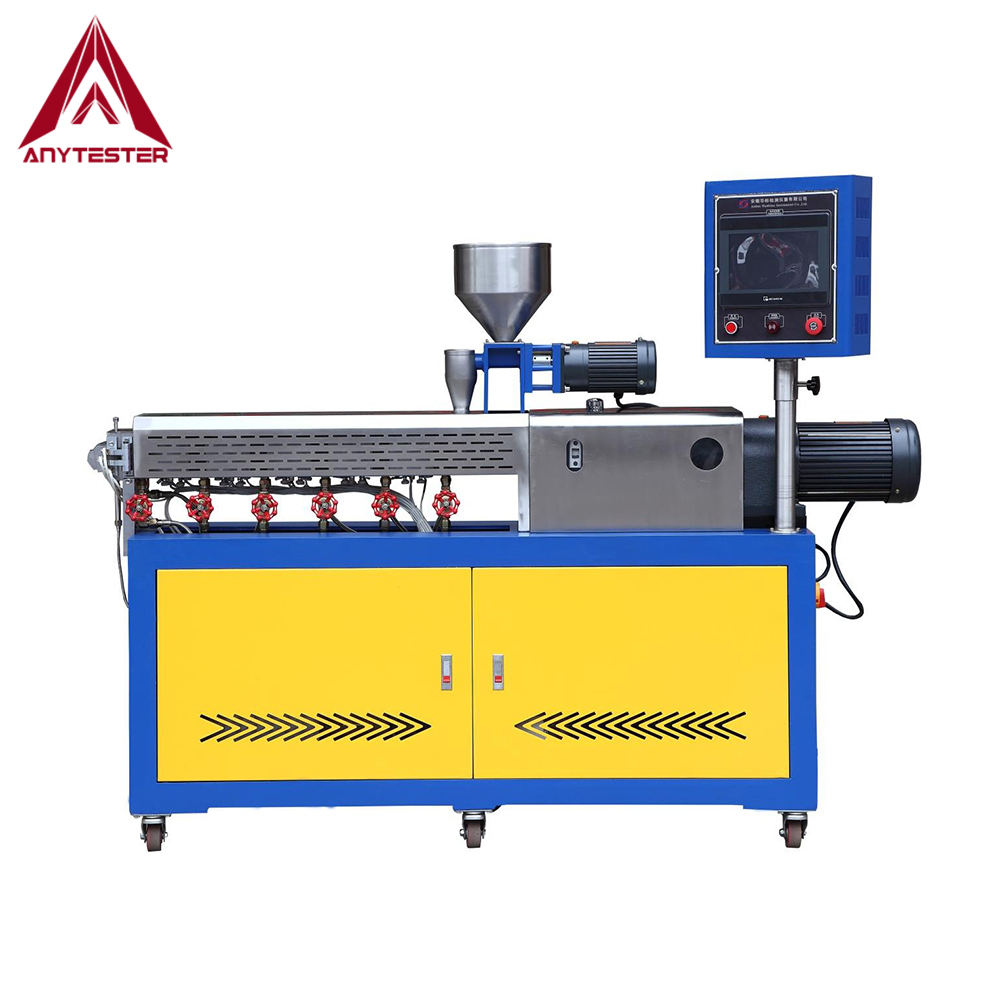

AT395 Lab Twin Screw Extruder is used for mixing and processing of high molecular polymers such as engineering plastics, modified plastics and color master batches. It is suitable for lab test and quality control, teaching research and small scale production.
Features
★ Different screw types can be selected according to different sample materials.

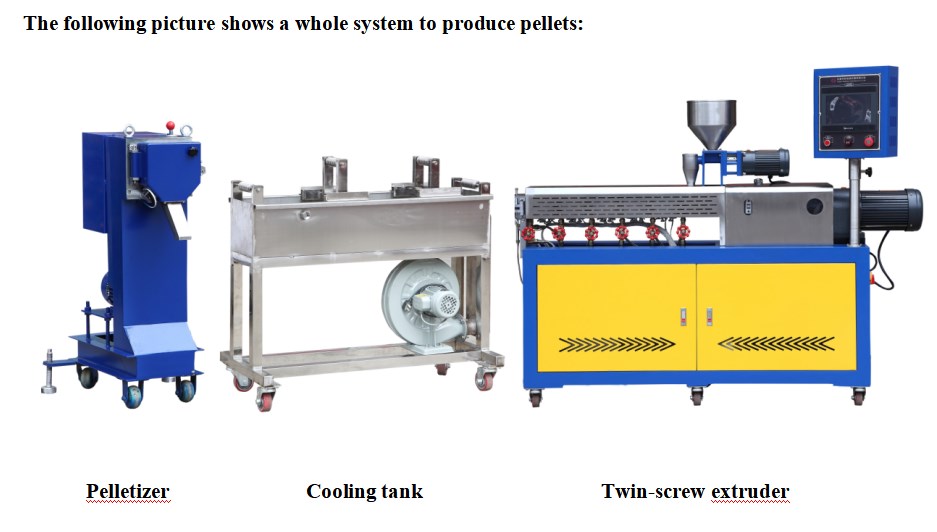

★ Matched with different auxiliaries can extrude pellets, sheet, pipe, etc. (optional configuration).

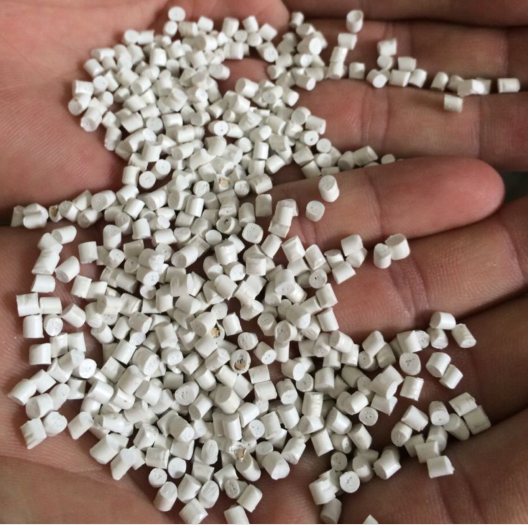

Finished pellets
Technical Specification
Model | AT395 |
Screw diameter | ¢20mm |
Length-diameter ratio (L/D) | 1:40 |
Screw rotating direction | co-rotating parallel |
Screw speed | 0~120rpm |
Screw material | Special tool steel of 40CrNiMoA chrome molybdenum alloy, treated with nitrogen, adjustment, chrome plating and superfine grinding. |
Cylinder | Hard alloy wear-resisting inner sleeve can be replaced |
Heating zone | 5 zones of cast aluminum heater for cylinder 1 zone of heater for feed zone Heating power:1kw for each heating zone Covered with stainless steel safety cover |
Cooling device | Water circulating cooling system, equips with separate screw valve flow control device for each zone |
Drive power | 2.2kw gear motor |
Feeder | 0~50rpm variable frequency speed adjustment screw to feed materials forcibly |
Electric control system | PLC programmable LCD touch screen control, all parameters can be control and display, the extruding process can be dynamic displayed and monitored. With USB port, easy to output and printout test data. |
Pressure control system | Adopts imported high precision temperature and pressure sensor, with over-pressure protection function, can automatically alarm and control the machine running or stopping. |
Output capacity | 3 ~ 15kg/h |
Power supply | 3phase, AC380V, 50Hz |
Dimensions | 1950×500×1500mm |
