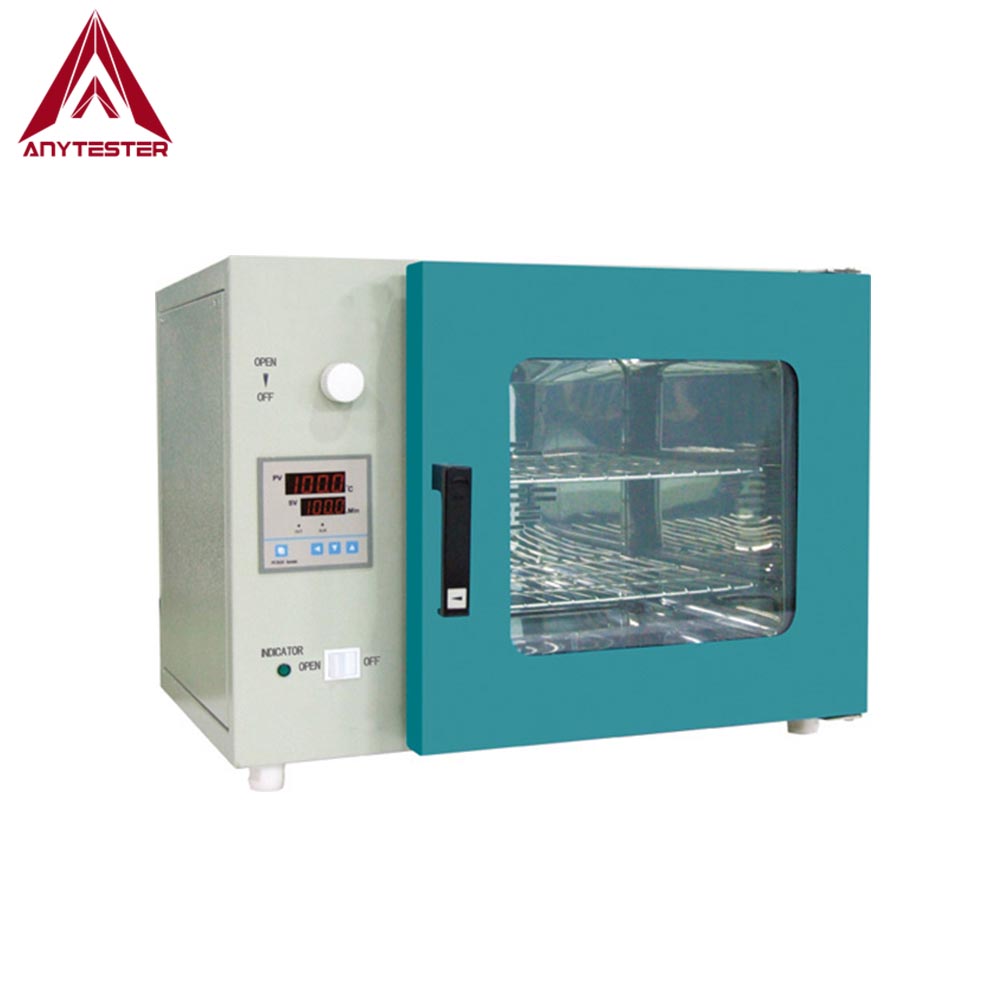

AT821 Series Electro-Thermostatic Blast Oven (Horizontal)

AT821 Series Electro-Thermostatic Blast Oven (Horizontal) is used to determine the dimension change of plastic material, pipe, sheet, fittings after heating in the set temperature.
  • AT821
  • Anytester
Availability:

Product Description

AT821 Series Electro-Thermostatic Blast Oven (Horizontal) is used to determine the dimension change of plastic material, pipe, sheet, fittings after heating in the set temperature.


Feature

★ Micro-computer control temperature system, PID self-tuning, LED display

★ The housing adopts 1.5mm thick cold-roll steel sheets with electrostatic powder coating

★ The inner material adopts 1.2mm mirror stainless steel plate

★ Thermal insulation layer adopts super fine heat-resistant glass fiber cotton

★ Double-layer tempered glass observation window, excellent insulation effect and easy to observe the samples in the chamber

★ With adjustable air discharge pipe to adjust the air inflow and air output in the chamber


Technical Specification

Model

AT821A

AT821B

AT821C

AT821D

Dimensions of working chamber (mm)

300×300×270

420×350×350

550×350×550

600×550×600

Sample support

2pcs

Timing range

1~9999min

Power supply

220V 50Hz

Power

500w

750w

1500w

2000w

Dimensions (mm)

500×450×440

710×520×520

840×530×730

890×730×780

Weight (kg)

55

65

75

85
