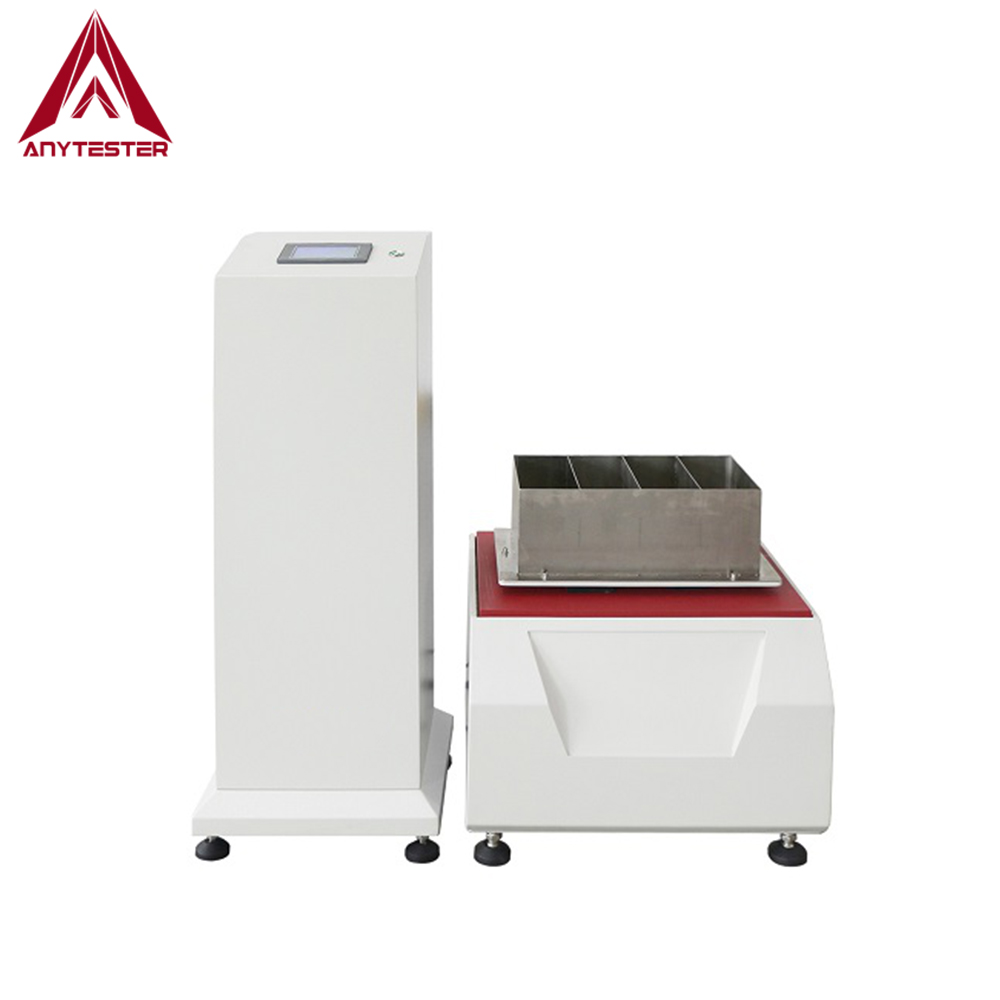

AT906 Face Mask Filter Element Vibration Tester

AT906 Face Mask Filter Element Vibration Tester is used to carry out the vibration test of filter element in non-powered air-purifying particle respirator.
  • AT906

  • Anytester

Availability:

Product Description

AT906 Face Mask Filter Element Vibration Tester is used to carry out the vibration test of filter element in non-powered air-purifying particle respirator.


Standards

GB 2626


Features

1. Colorful touch screen display and control, convenient to operate and easy to read;

2. Two work modes: counting (including increase or decrease) and timing;

3. AC motor to accurately control vibration frequency;

4. 32-bit ARM processor, accurate to control.


Technical Specification

Model No.

AT906

Falling height of vibration box

20mm

Mass of vibration box

10kg

Rotation frequency of cam

100r/min

Vibration time

Approx. 20min, settable

Number of vibration

Approx. 2000, settable

Power supply

AC220V 50Hz, 120W

Dimensions

590×530×560mm (W×D×H) for vibration box

350×350×940mm (W×D×H) for control box

Weight

150kg
