Sample Introduce of the Plunger-type Melt Spinning Machine

AT226 Series Plunger-type Melt Spinning Machine is used to carry out the melt spinning of polypropylene, polyester, polyamide and other special materials with plunger metering system. The raw material melts and flows into the plunger-type cylinder. The plunger-type cylinder driven by the servo motor can precisely monitor and control the flow of melt liquid. The melt liquid passes through the filtering plate, distributing plate and then is extruded through the spinneret plate to spin. The spun fiber can be direct wound onto the winding roll or passes through coagulating bath (optional), heat stretching (optional), relax hot setting (optional) and then be wound onto the winding roll.

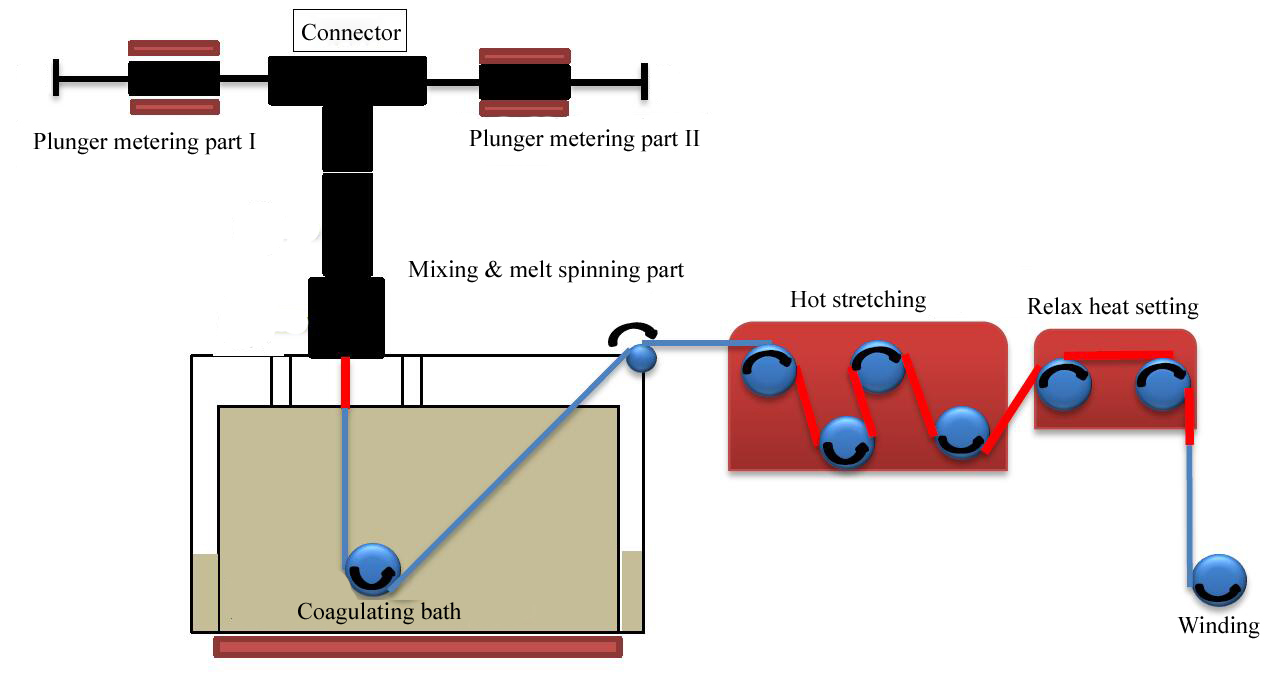

1. Sketch for Dual-plunger Melt Spinning Machine

NOTE: 1-Mixing part, coagulating bath, hot stretching and relaxing heat setting are optional.

      2-AT226A Single Plunger Melt Spinning Machine has a plunger metering part, but no mixing part while AT226B Dual Plunger Melt Spinning Machine has two plunger metering parts and mixing part.

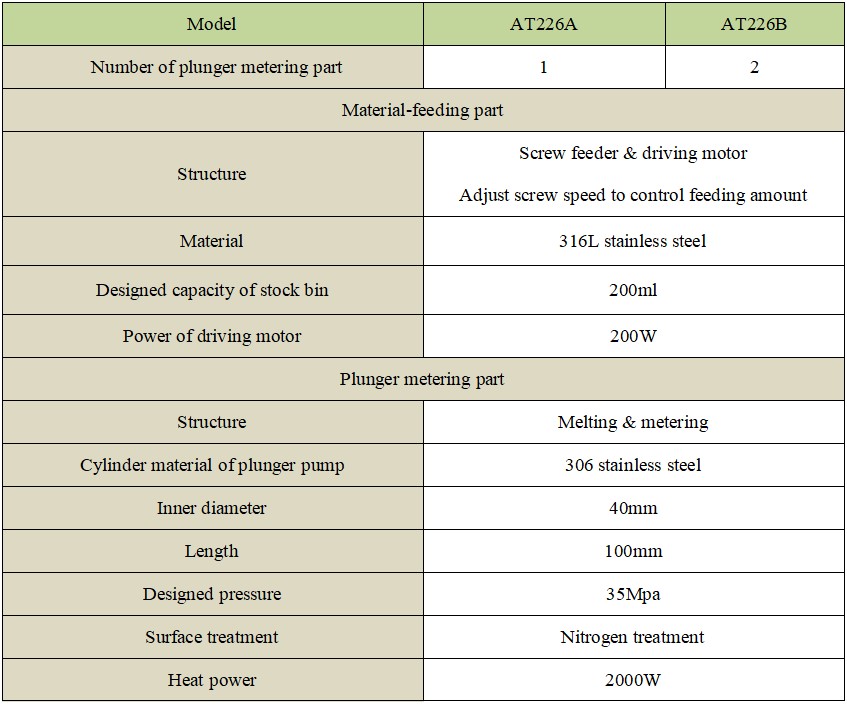

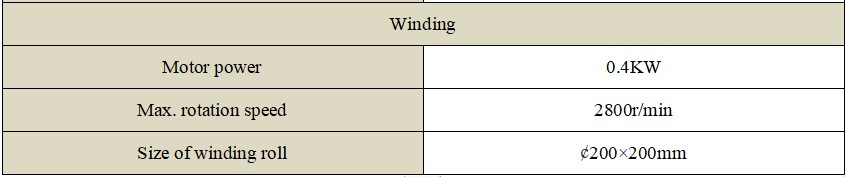

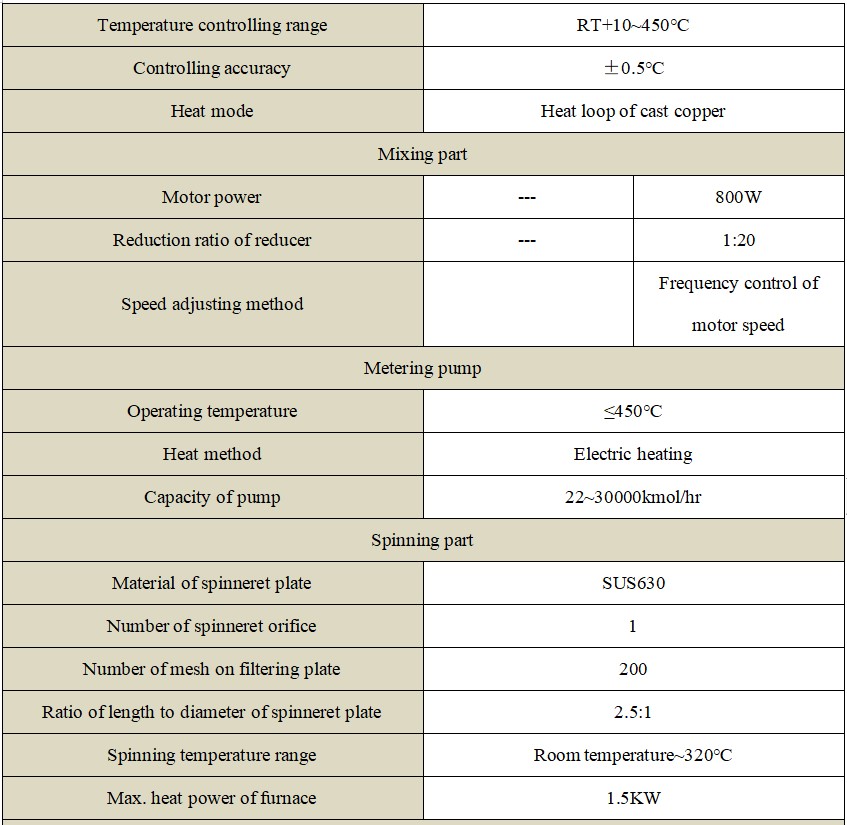

2. Technical Specifications

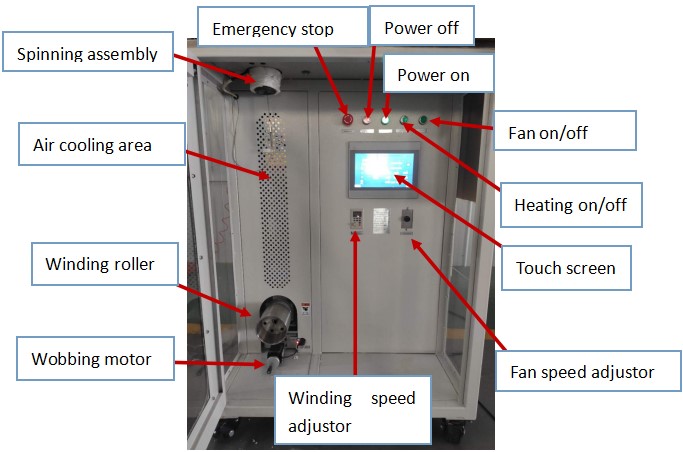

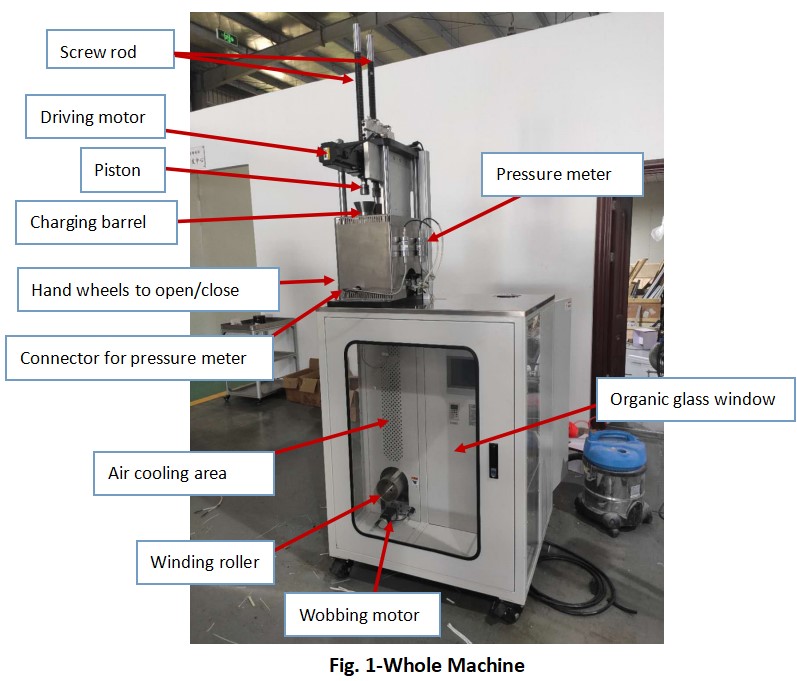

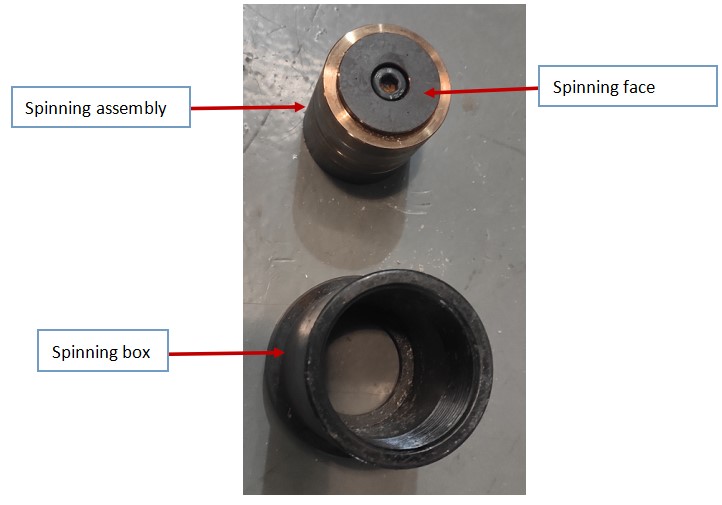

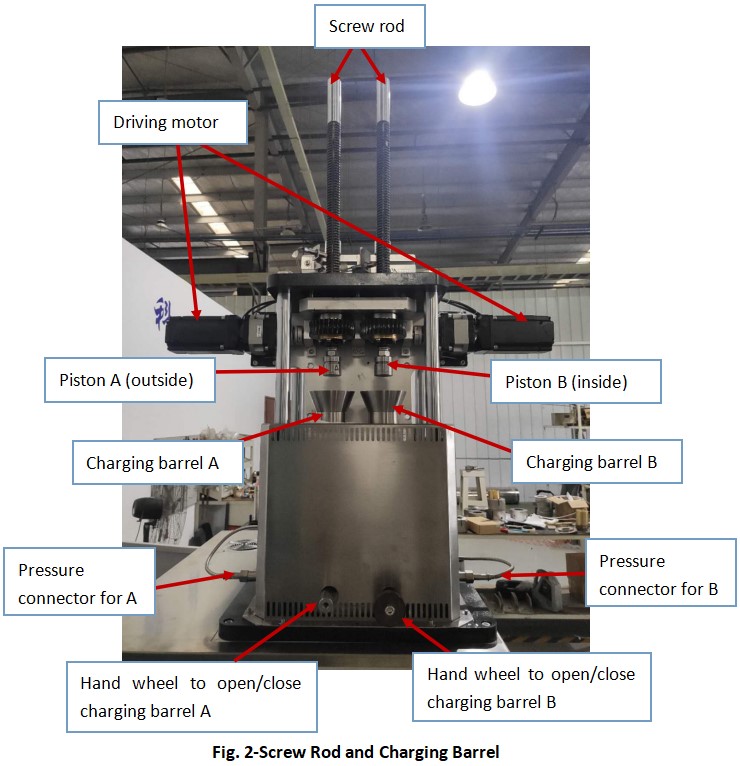

3. Structure

If you have any request for the melt spinning machine, please kindly conatct us.
