AT226 Melt Spinning Machine Used For Pitch-based Carbon Fiber Researching

AT130 is a lab scale melting spinning machine for preparing various polymer based composite fiber at micron or nano meter diameter,such as carbon composite, PTEE and PEEK, to explore new generation composite materials.
  • AT226

  • Anytester

Availability:

Product Description

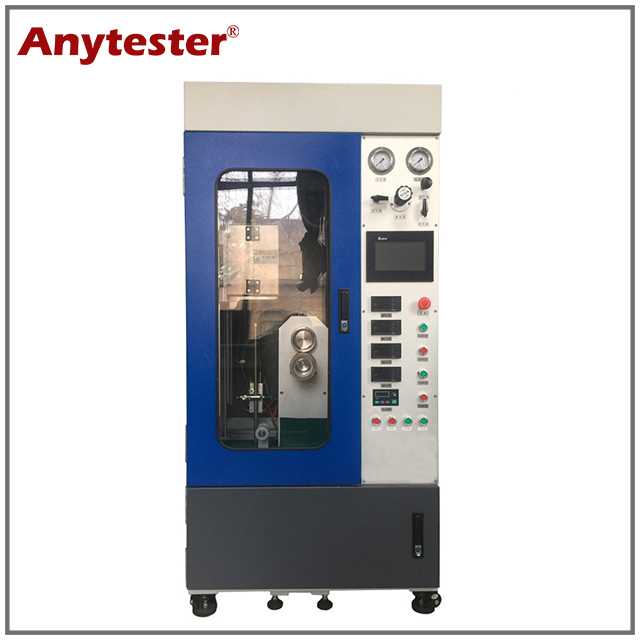

AT226 is a lab scale melting spinning machine for preparing various polymer based composite fiber at micron or nano meter diameter,such as carbon composite, PTEE and PEEK, to explore new generation composite materials.


Features

It consists of heating system, spinneret system, winding system

It adopts perspective organic glass door, easy to observe;

Touch screen display, easy to operate;

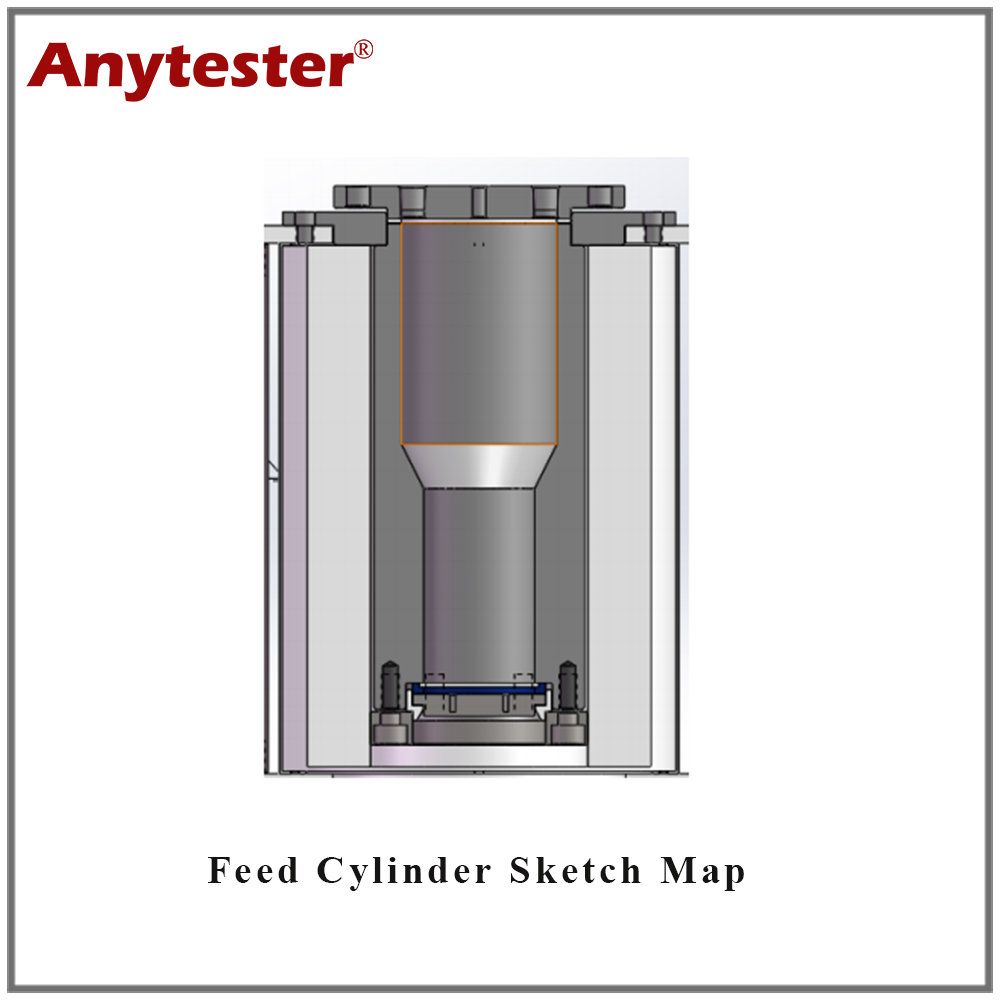

Thicken stainless steel feed cylinder to make sample heating more uniform;

Test temperature real-time monitoring, the max. Temperature can be 450;

With stirring function to ensure uniform heating;

With stainless steel winding roller, and there is a paper bobbin outside of the roller, easy to mount and dismount;

Extruding power source: inert gas cylinder, with whole air pressure regulation facility;

With winding displacement system to make winding roller move left and right to ensure uniform and smooth winding.



Technical Specification

Model

AT226

Pressure range

Design pressure: 3.6MPa

Input pressure: 13MPa, Output pressure: 1.6MPa, accuracy: ±0.01MPa

Temperature range

450 max.

Temperature accuracy

±0.5

Heating mode

Two sections of heating furnace, Mullite   fiber insulation

Temperature control mode

Two pieces of temperature controller, high   precision of ±0.5

Feed cylinder

500ml, stailess steel, with soaking   distribution device

Spinneret plate

Dia. 0.2, 0.3, 0.4, 0.5 optional

L:D: 2:1~3:1 optional

Six holes or single hole optional

(please specify before order)

Winding system

 Rotary head

Friction driven rotary head

Speed range

300~2800m/min

Winding roller dia.

120mm (outer diameter)

Max. Winding dia.

320mm

 Rotary head

Friction driven rotary head

Power supply

AC220V, 50Hz

Dimensions

700mm×500mm×1700mm

Weights

130kg
