Single-end Warping Machine: The Best Choice To Increase Production Efficiency

A single-end warping machine, often referred to as a "direct warper," is a textile machinery used in the process of preparing yarn for weaving. It is designed to wind individual yarn ends from multiple packages onto a single cylindrical package known as a warp beam. The warp beam, with its parallel and evenly tensioned yarn ends, serves as the primary supply source for the lengthwise threads (warp) in the weaving

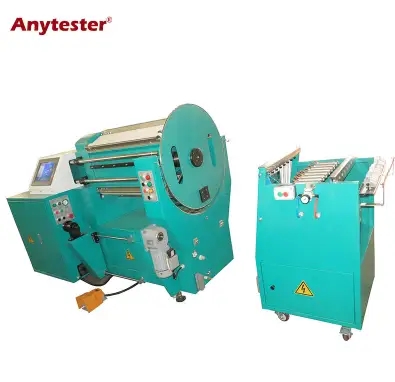

Automatic Single Yarn Warping Machine

Single-end warping machines hold significant importance in textile manufacturing due to their ability to efficiently prepare yarn for weaving. They enable the creation of uniform, high-quality warp beams, which serve as the foundation for producing various textiles, from apparel fabrics to industrial materials. This precision and consistency contribute to the overall efficiency and quality of the textile production process.

Functions Of Different Parts Of A single end Warping Machine

Creel: Loads and holds yarn packages for smooth unwinding.

Yarn Tensioning Device: Maintains consistent yarn tension.

Yarn Guide: Aligns and evenly distributes yarn.

Warping Drum: Winds yarn evenly in parallel.

Traverse Mechanism: Distributes yarn, prevents entanglement.

Tension Control: Ensures uniform tension during winding.

Leasing Reed: Separates yarn ends, prevents tangling.

Warp Beam: Final product for weaving, parallel and tensioned yarn.

Beam Flanges: Secures yarn and aids knot tying.

Beam Support: Maintains beam position, ensures even winding.

What Sets Single-End Warping Machines Apart?

Single-end warping machines possess several unique features and advantages compared to other types of warping machines. Here are some of the distinctive characteristics of single-end warping machines:

Direct Winding: Single-end warpers wind yarn directly onto a single warp beam. This results in a continuous warp without the need for sectional warping or section beams, making it suitable for processes that require a single, long, and continuous warp.

High Efficiency: These machines are efficient for producing long and uniform warp beams. They are often used in the production of fabrics like denim, where a consistent and lengthy warp is essential.

Minimal Knots and Splices: Since all the yarn ends are combined onto a single warp beam, there are typically fewer knots or splices in the warp. This can lead to improved fabric quality by reducing potential points of weakness or defects.

Tension Control: Single-end warping machines are equipped with precise tension control mechanisms to ensure consistent tension on all yarn ends, resulting in even and well-tensioned warp beams.

Uniform Yarn Distribution: The traverse mechanism on these machines ensures even distribution of the yarn across the width of the warp beam, minimizing variations in yarn density.

Warp Beam Quality: The direct winding process and consistent tension control contribute to the production of high-quality warp beams, which are crucial for achieving desired weaving results.

Simplicity: Single-end warping machines are relatively straightforward in their operation compared to section warping machines, making them easier to set up and maintain.

Suitability for Specific Fabrics: These machines are well-suited for the production of fabrics that require a continuous warp, such as apparel fabrics, shirting, and certain types of industrial textiles.

While single-end warping machines offer these unique features and advantages, it's essential to note that their suitability depends on the specific requirements of the fabric being produced. Other types of warping machines, like section warpers, excel in scenarios where frequent color or pattern changes, or varying warp lengths, are needed. The choice of warping machine depends on the fabric design, production process, and desired efficiency and flexibility.

Applications of single-end warping machines

single-end warping machines have a broad range of applications in the textile industry, benefiting various sectors, including clothing, home furnishings, industrial textiles, and more.

Apparel and Fashion

In the clothing industry, single-end warping machines are essential for producing fabrics used in clothing. They create warp beams with uniform, continuous yarn ends, ensuring consistent, high-quality fabrics for garments like denim, shirting materials, suiting fabrics, athletic wear, and fashion accessories.

Home Furnishings

For the home textiles sector, these machines are instrumental in producing warp beams for upholstery fabrics, bed sheets, pillowcases, curtains, drapes, and other interior décor textiles. They help maintain consistent yarn tension for durable and appealing products.

Industrial and Technical Textiles

Industries such as automotive, aerospace, and construction rely on single-end warping machines to create warp beams for specialized technical textiles. These textiles, including airbags, seatbelts, and reinforced composites, meet stringent quality and safety standards.

Workwear and Uniforms

Single-end warping machines are crucial in the production of work uniforms and industrial workwear, ensuring that fabrics meet the strength and performance standards required in various industries.

Custom Textile Design

Textile designers use single-end warping machines to create custom-designed fabrics, allowing them to experiment with different yarn types and patterns to achieve specific artistic and aesthetic effects.

How to choose the right Single-end warping machines?

Selecting the right single-end warping machine is a crucial decision that can significantly impact your textile production efficiency. Here are 3 main steps to make an informed choice:

1. When choosing a single-end warping machine, it's crucial to first understand your production needs. Consider factors such as the type of fabric, required warp length, yarn types, and the number of yarn ends. Make sure the machine's capacity and features align with your specific production requirements to ensure efficiency and quality in your textile manufacturing.

2. Evaluate the machine's functionality, including tension control, traverse mechanism, warp beam size, and user-friendliness. Prioritize safety by checking for features like emergency stop buttons and safety guards to protect operators. A well-designed and user-friendly machine can streamline operations, reduce the learning curve for your team, and enhance workplace safety.

3. Conduct thorough research before making your decision. Look into the manufacturer's reputation, service and maintenance support, and user feedback. Consider the total cost of ownership, including maintenance and environmental impact. Customization options and warranties are also factors to explore. Informed research ensures that you choose a machine that not only meets your current needs but also provides long-term reliability and cost-effectiveness.

The selection of a single-end warping machine is a strategic decision. By making an informed choice, you can fine-tune your textile manufacturing process, boost efficiency, and uphold the highest standards of quality.
