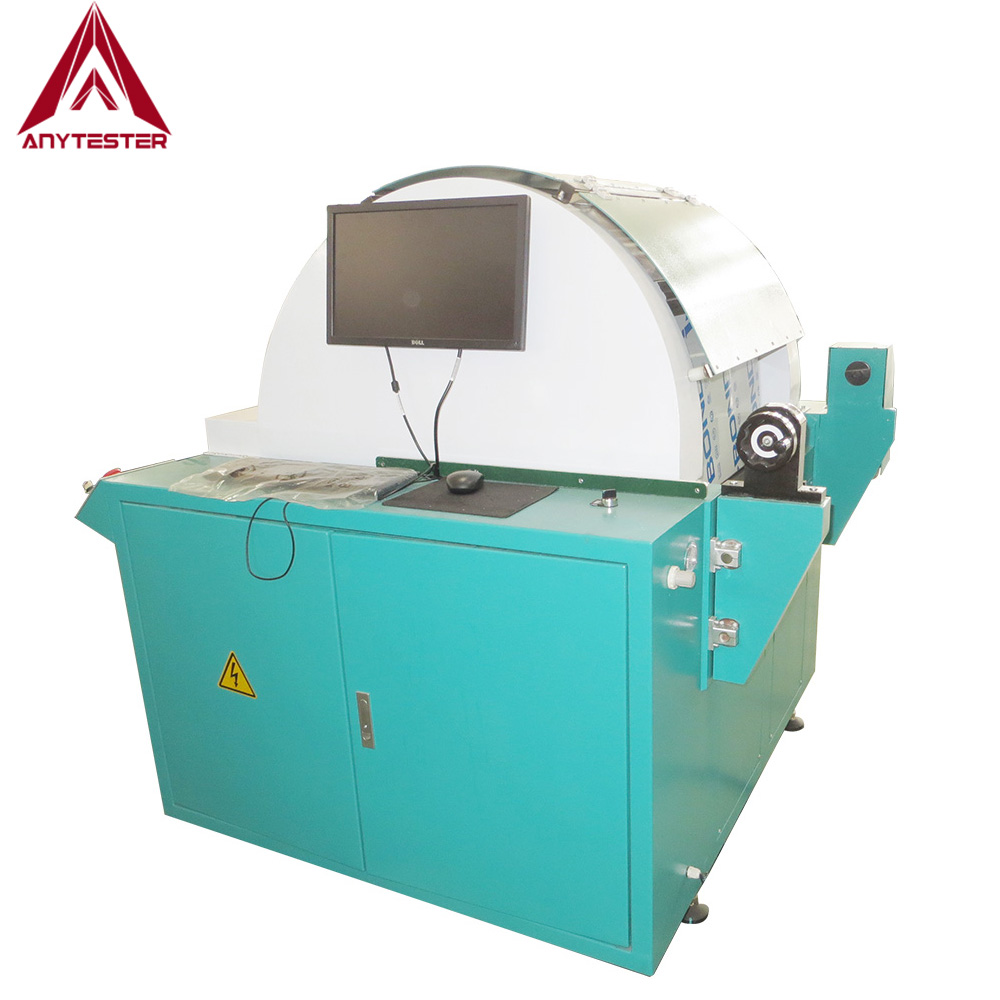

AT241B Laboratory Small Sample Warping Machine Factory Price

AT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.
  • AT241B

  • Anytester

Availability:

Product Description

AT241B Small Sample Warping Machine is used for automatic warping of production sample, weaving sample and small batch fabrics for lab. As the textile develops in the direction of small quantity, diverse kind and prompt delivery, so our company has developed AT241B Small Sample Warping Machine on the increasing requirements on product samples. It is widely used in the sampling in the industries including wool spinning, cotton spinning, colored woven and natural silk etc.

Features

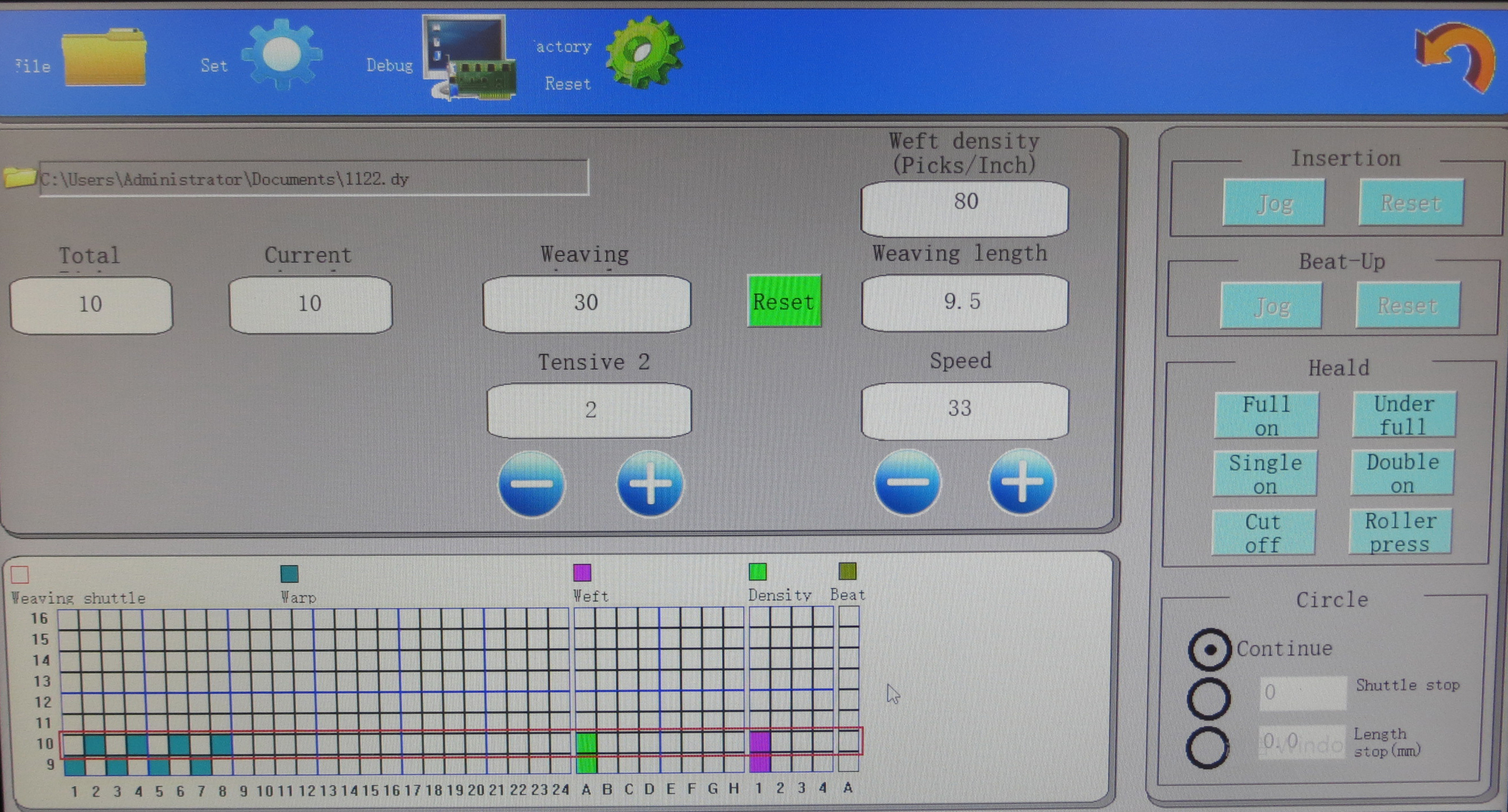

★ PC control and software for arranging the laying of yarn;


★ Special design for sample weaving in lab or research and development institute;

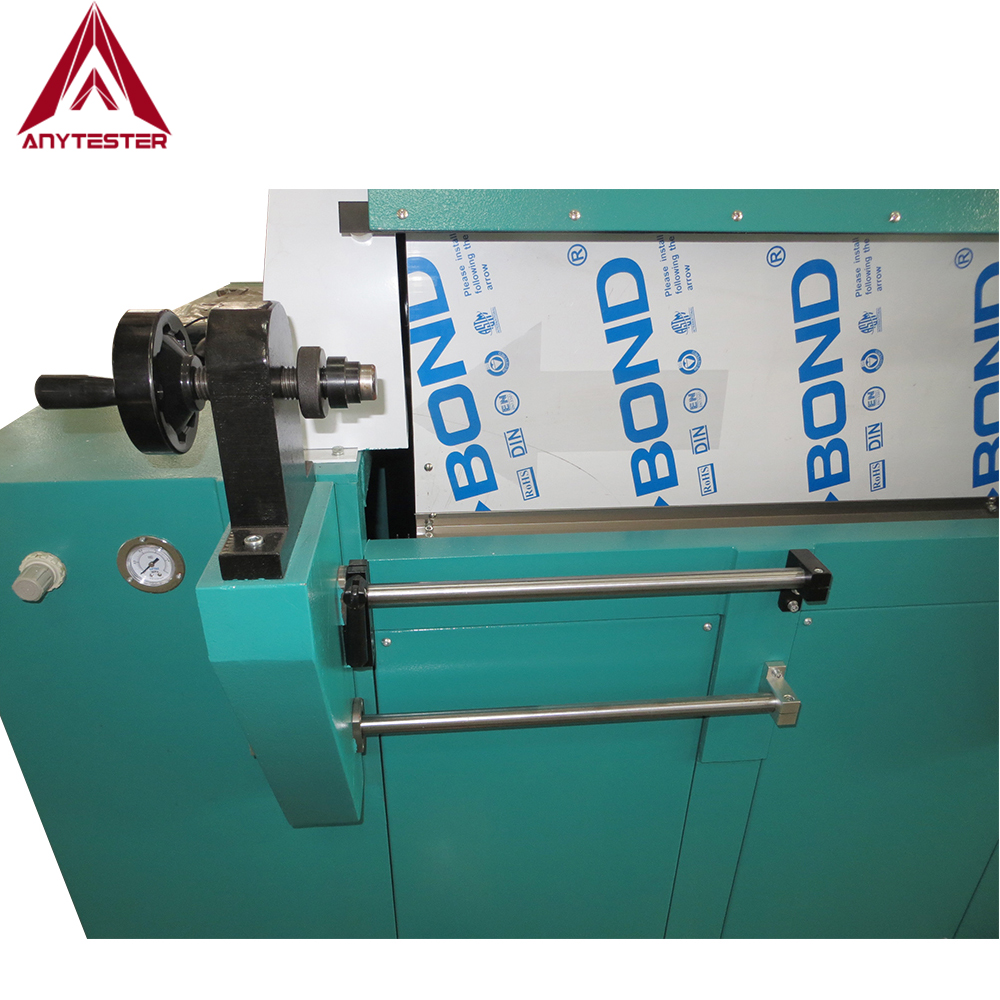

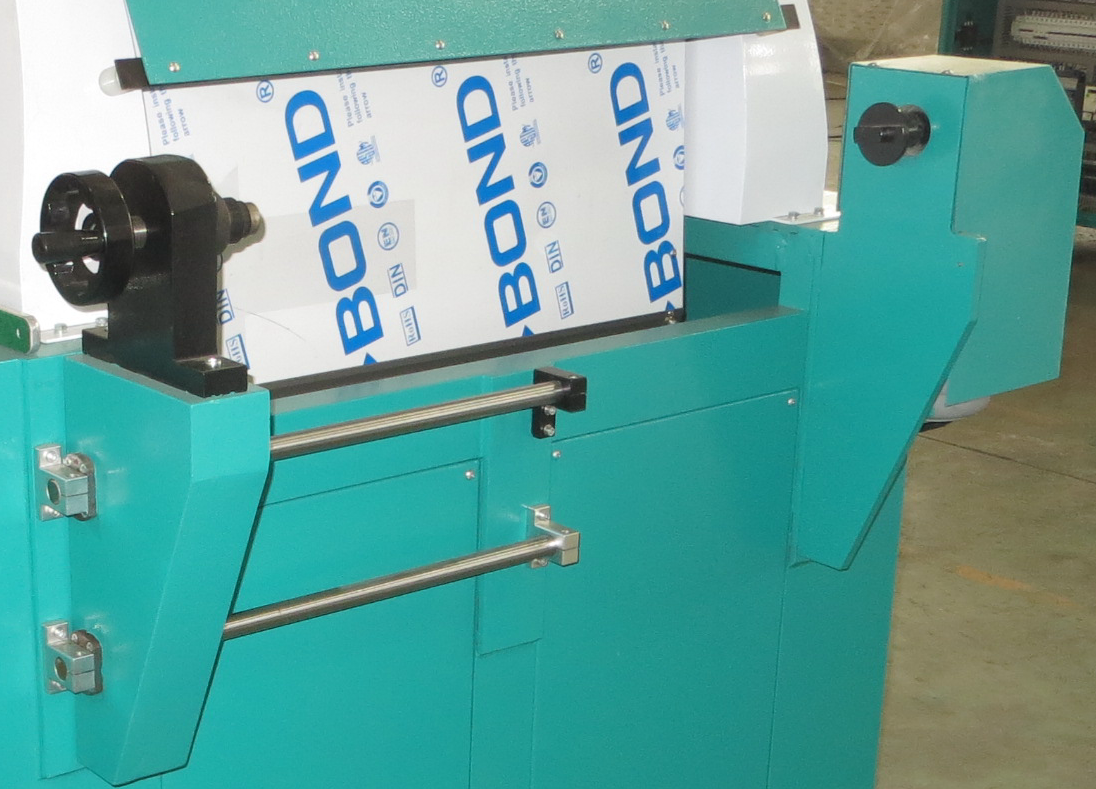

★ Adjustable working space of unwinding device, suitable for various warping beams whose length is within 300~500mm;

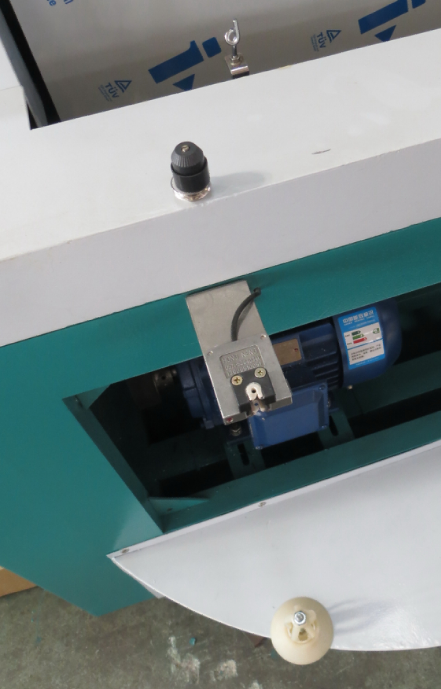

★ Yarn breaking detector;


★ Foot pedal for unwinding;

★ With inching button and emergency stop for the safety of operator;

























Technical Specification

Model

AT241B

Warping width

0~500mm

Warping speed

0~500m/min

Warping length

2.4m or 3m

Applicable yarn density

5~500tex

Number of bobbins

1pcs (manually changeable)

Yarn arrangement

Servo motor control with accuracy of 0.01mm reachable

Applicable warp beam diameter

¢60mm

Applicable warp beam length

300~500mm

Air pressure required

0.4~0.8Mpa

Air consumption

Max. 200L/h

Power supply

AC380V 50Hz, three-phase

Dimensions

1700×1000×1300mm(L×W×H)

Weight

Approx.850kg
