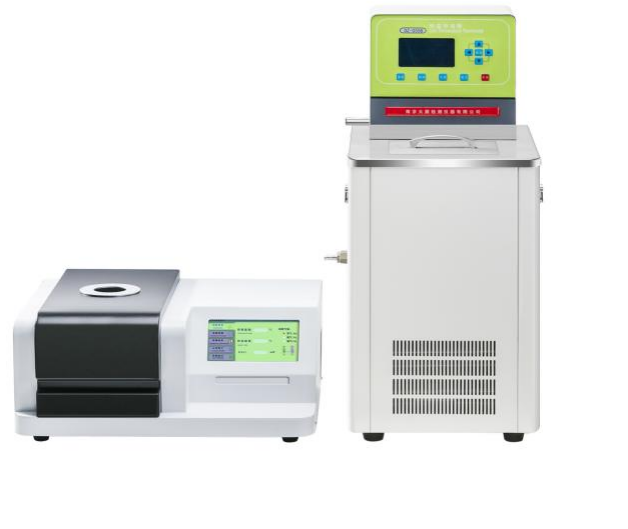

Update model Differential Scanning Calorimeter

Today we will introduce one update model Differential Scanning Calorimeter, it with 7 inch large LCD touch screen. The DSC accuracy can up to 0.001mW, also can match with the cooling device. the temperature range is -40~600℃.  Please check follow details introduction.

Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), Crystallization kinetics, Specific heat capacity, reaction heat, heat enthalpy, melting point, phase transition, etc. It can meet the Standard ISO 11357, ASTM E794, GB/T 13464, 19466,

For more standards, please contact us.

Principle:

The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programmer under a specified atmosphere.

Features:

★ Suitable for solid, powder and liquid samples, except gas sample.

★ LCD display, touch screen operation.friendly operation interface.

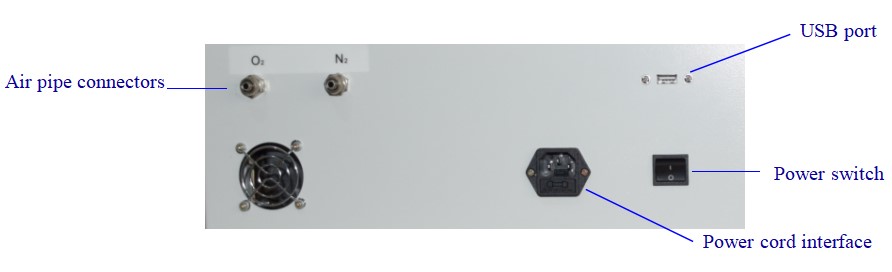

★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.

★ Main machine control and software control, friendly operation interface, easy to operate.

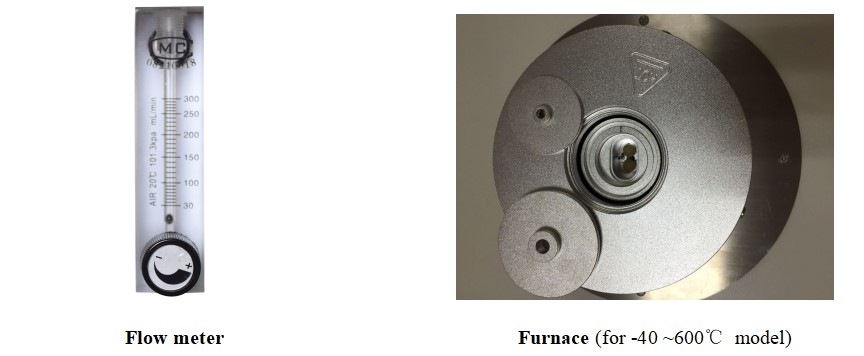

★ With gas flow meter, accurate to control the gas flow.

★ New metal furnace structure, better baseline, higher accuracy. Heating adopts indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.

★ Two user interface on software, one is for DSC test, the other is for OIT test.

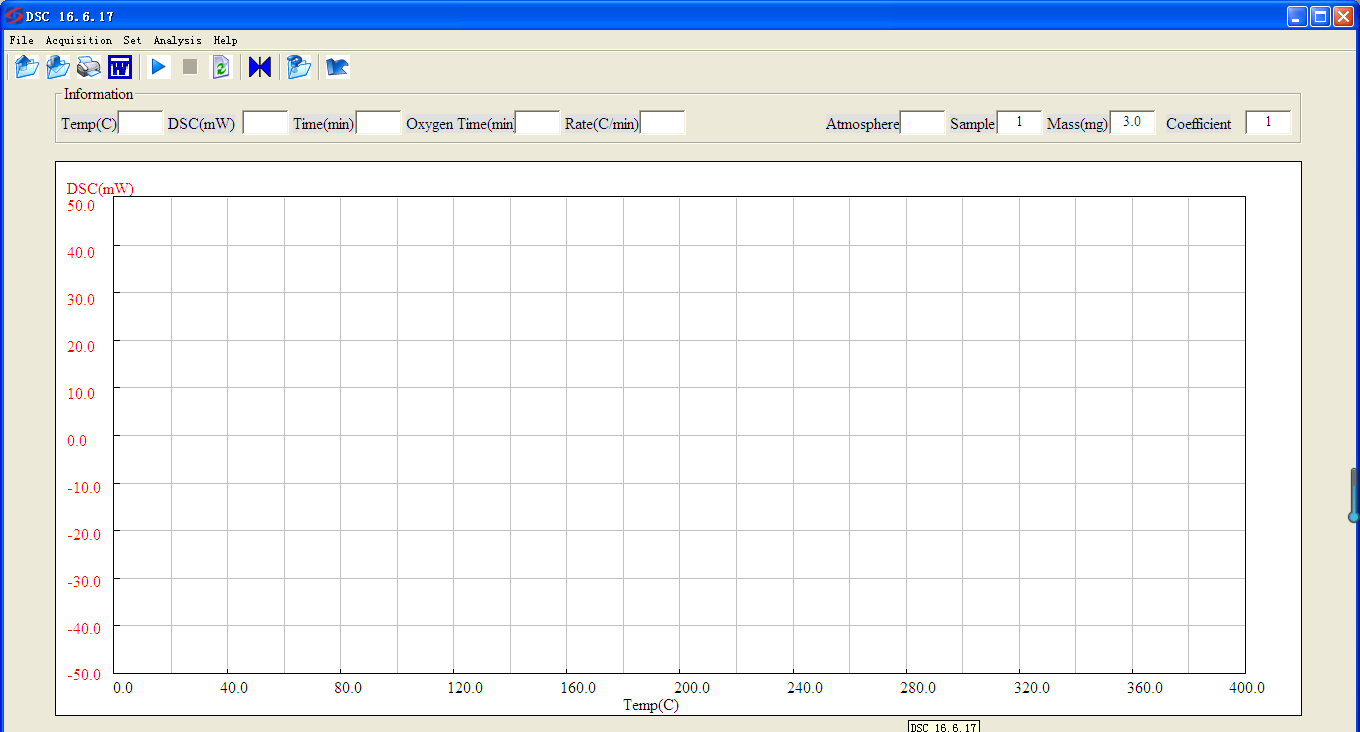

                                      Test interface for DSC test

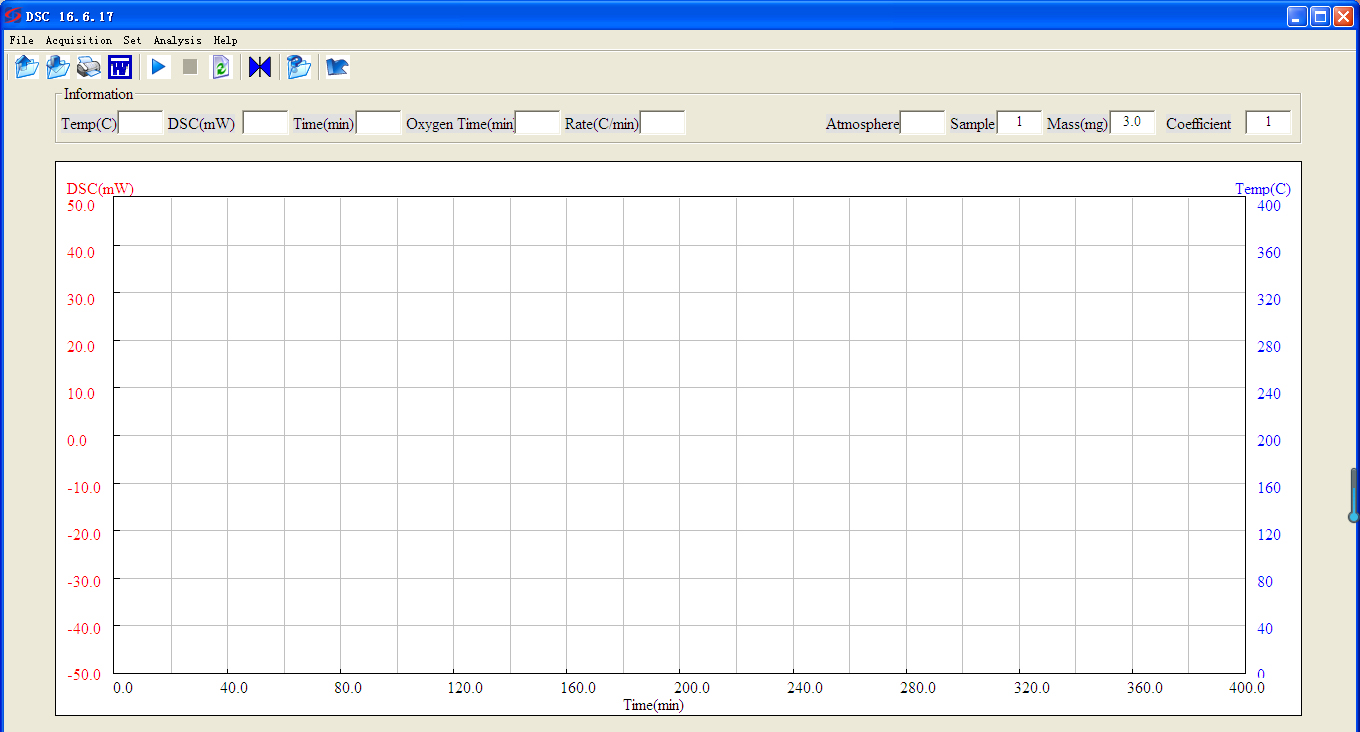

                                        Test interface for OIT test

★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve.

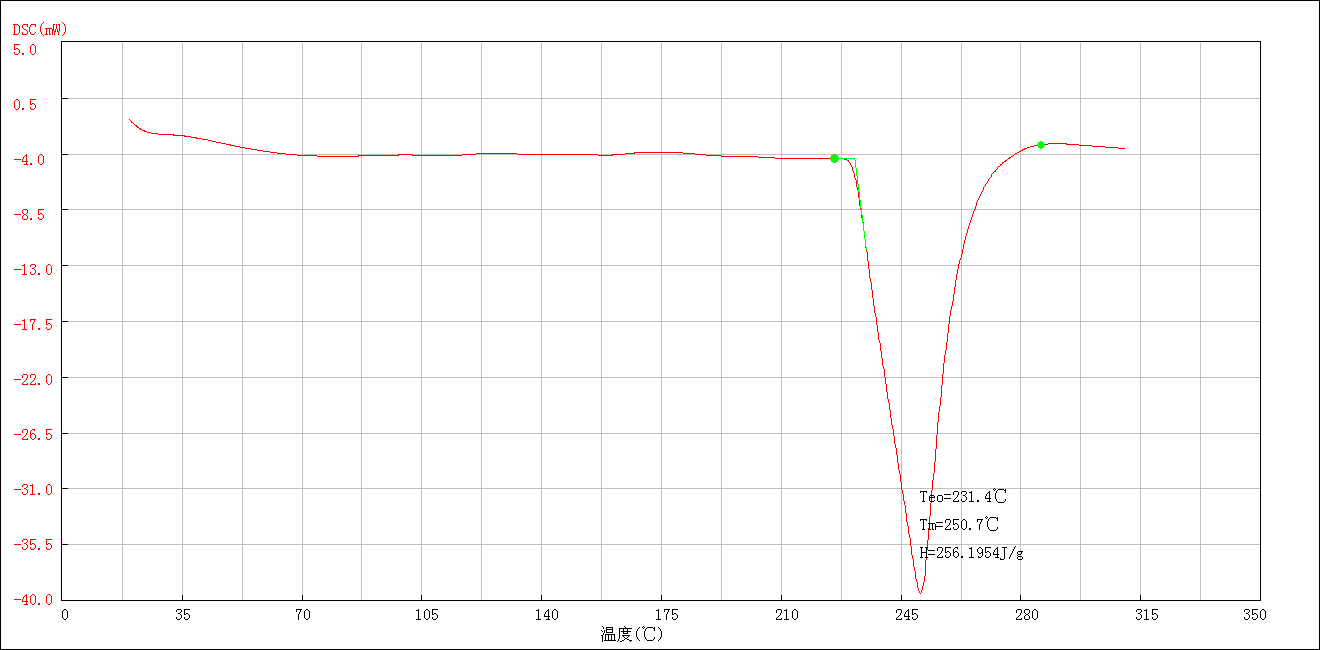

              DSC-Temp curve for melting point test

                DSC-Temp curve for glass transition temperature test

                           DSC-time & Temp-time curve for OIT test

                                                 Heating and cooling scan

★ Full equipped with accessories, convenient and easy to test.

★ Chinese or English operation system can be selected.

★ It with multiple groups of thermocouples, one group to test the sample temperature, one group to test the internal ambient temperature of the instrument.

If you have any request for our this model DSC, please contact us without any hesitate.
