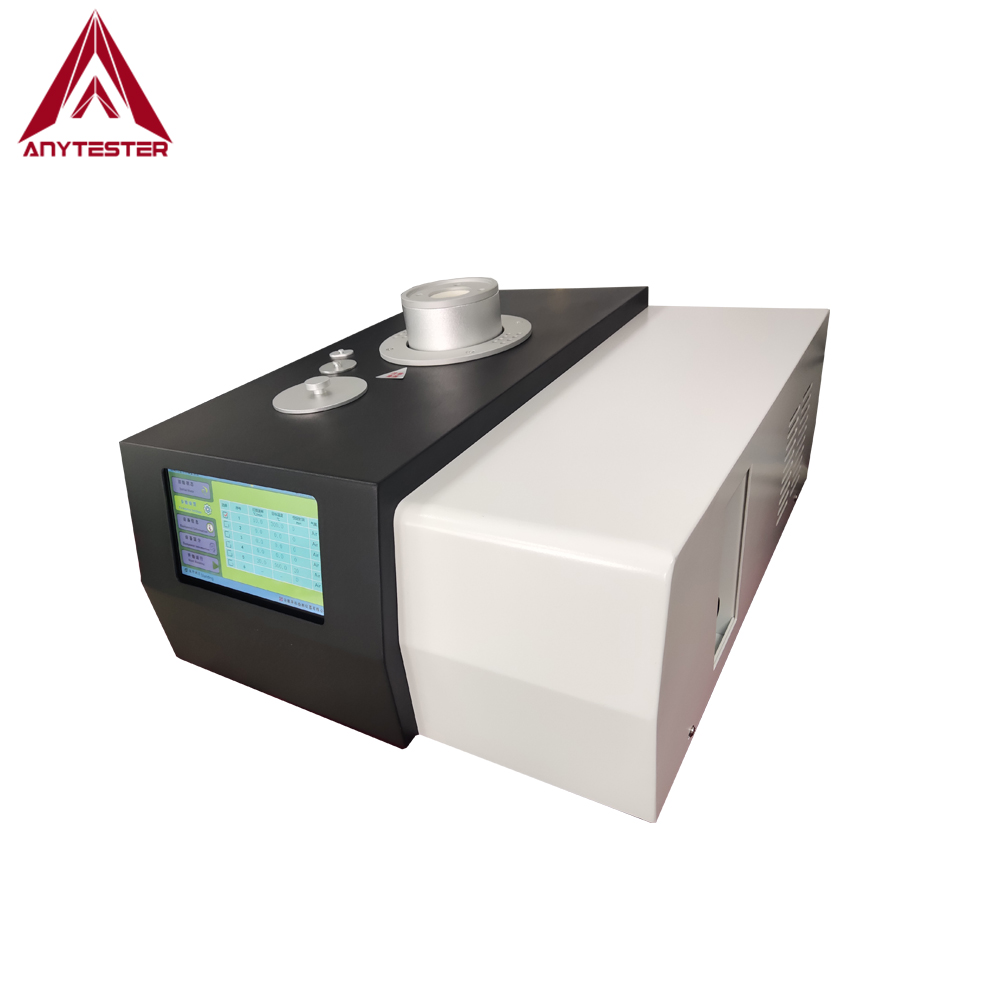

Differential Scanning Calorimeter DSC with High Sensitivity

AT451 Differential Scanning Calorimeter (DSC) is used to determine and research the melting and crystallization process, glass transition temperature, oxidation induction time (OIT), reaction heat, heat enthalpy, melting point, phase transition, etc.

The difference between the heat flux into a test specimen and that into a reference specimen is measured as a function of temperature and time, while the test specimen and the reference specimen are subjected to a controlled temperature programmer under a specified atmosphere.

★ Suitable for solid, powder and liquid samples, except gas sample.

★ LCD display, touch screen operation.friendly operation interface.

★ In-built atmosphere device, can simultaneously connect with Nitrogen and Oxygen, automatic switchover. With USB cable to connect machine to computer.

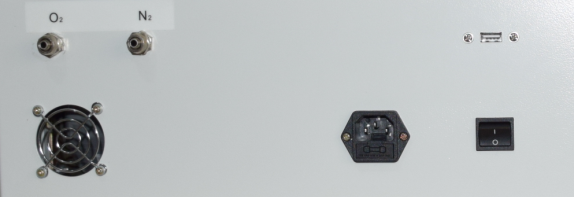

The back of machin

 ★Main machine control and software control, friendly operation interface, easy to operate.

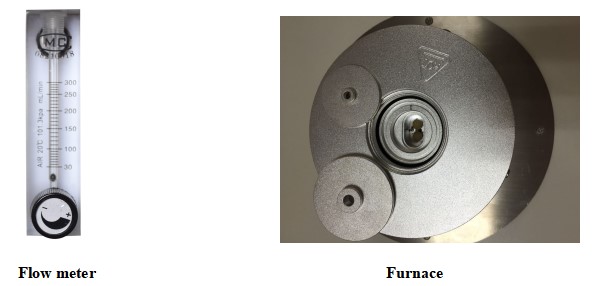

  ★ With gas flow meter, accurate to control the gas flow.

★ Small furnace, high accuracy of temperature control, the temperature can be RT~600℃. Also, liquid nitrogen cooling system can be optional, the temperature can be -100 ~ 600℃ or -20 ~ 600℃.

★ Two user interface on software, one is for DSC test, the other is for OIT test.

★ Real-time record and display DSC-Temp curve or DSC-time & Temp-time curve.

★ Full equipped with accessories, convenient and easy to test.

★ Chinese or English operation system can be selected.

★ It with multiple groups of thermocouples, one group to test the sample temperature, one group to test the internal ambient temperature of the instrument.
