Today we will introduce how to use our AT235 model Bench-top Laboratory Wet Spinning Machine.
1. Summary
AT235 Bench-top Wet Spinning Machine is special design for researching new material in the field of textile, macromolecule and other material. It consists of the solution tank, dosing pump, spinneret, coagulating bath, drawing roller, heating channel, drawing roller, setting channel, drawing roller and winding.
2.Parameters
Model | AT235 |
Solution tank | 1L |
Temperature range of solution tank | RT~95℃ |
Size and number of spinneret plates | 100 holes, dia.:0.07mm 1pcs |
Size of coagulation bath | 160×160×1000mm |
Temperature range of coagulation bath | RT~95℃ |
Dosing pump flow rate | 0.66cc/rev |
Dosing pump power | 180W |
Dosing pump reducer | 1:60 |
Size of drawing roller | Ф55×80mm |
Roller speed | 3~150r/min, adjustable |
Temperature range of heating channel | RT~250℃ |
Temperature range of first setting bath | RT~250℃ |
Temperature range of second setting bath | RT~250℃ |
Winding Speed | 3~150r/min, adjustable |
Size of winding roll | Ф55×80mm |
Winding speed | 3-50m/min |
Power supply | AC220V 50Hz, single-phase |
3. Introduction
3.1 Structure
Fig.1-Whole Line
Fig.2-Spinning and Coagualtion
1-Solution tank
2-On-off button of solenoid valve between solution tank and dosing pump
3-Hand wheel
4-Speed adjuster for dosing pump
5-Temperature meter for solution tank
6-Temperature meter for dosing pump
7-Gooseneck
8-Dosing pump (inside the shell)
9-Coagulating bath
10-Filament-pressing wheel
11-Filament-guding wheel
12-Temperature meter for coagulating bath
Fig.3-Coagulation Bath (Top View)
1-Temperature sensor
2-Spinneret
3-Filament-pressing wheel
4-Heating pipe
Fig.4-Drawing Rolls

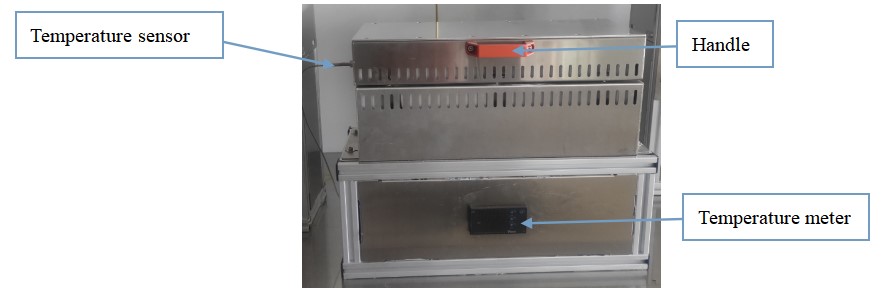

Fig.5-Heating Channel
Fig.6-Winding Device
3.2 Instruction on Meter
Fig.7-Temperature Meter
Press “”, and key to change the SV value; if the SV value is higher than the PV value, the temperature meter will automatically send a signal to the heating pipes to heat. So the way to stop heating is to set SV value of temperature to be lower than PV value.
Fig.8-Speed Adjuster
Press “Jog” button and hold it, the drawing rolls will continuously rotate; if release it, the drawing rolls will stop rotate;
If the drawing rolls do not rotate, press “Run” button and then the drawing rolls rotate;
If the drawing rolls are rotating, press “Stop” button and then they stops rotating;
Press “” button to increase the speed;
Press “” button to increase the speed;
4. Working conditions
● Ambient temperature: 10℃-40℃ range;
●The relative humidity of 30% -80%;
● No vibration around, no corrosive media in the environment;
● On a solid basis;
● Work without strong magnetic field interference, no strong air convection around.
5. Installation and Attention
1) Place all parts of the instrument on a stable and level table in the sequence;
2) Adjust the position of all parts to make the filament move in a line;
3) Adjust the position of guiding wheel on each drawing rolls as below:
●Pull the metal bar for the guiding wheel and at the same time anti-clockwisely turn it until it loose with the nut; at this moment, the metal bar and nut can be moved up or down;
Note-Just loose the metal bar and do not unscrew it from the nut.
●Move the metal bar with nut to the appropriate position, pull it again and clockwisely turn it as the same time to tighten it;
●In this way to adjust the position of the guiding wheel.
5) Loose the Allen key of each filament pressing roller in the coagulation bath to lift the filament pressing rollers;
6) Pour the coagulating solution into the coagulation bath;
7) Open the cover of the solution tank;
8) Pour the spinning solution into the solution tank;
9) Fix the cover onto the solution tank;
10) Connect the gas inlet port onto a Nitrogen cylinder (prepared by the user himself); if required, connect the vacuum pump (prepared by the user himself) with the port for it on the cover of the solution tank to vacuumize the solution tank and remove air from the spinning solution;
11) Turn on all parts, set the required temperature on all temperature meter
12) When all temperatures reach the required value, set the rotation speed of relative drafting rollers and the winding rollers;
13) Close the vent port (port for vacuum pump) of solution tank and adjust the output pressure of Nitrogen cylinder to be 0.1~0.2Mpa;
14) Press on-off button to open the solenoid valve between the solution tank and the
doing pump, so than the spinning solution can flow from the solution tank into the dosing pump;
15) Adjust the rotation speed of dosing pump and then the dosing pump delivers the spinning solution to the spinneret;
16) Lower the spinneret into the coagulating solution and there will be air bubbles from the spinneret;
17) When air bubbles disappear, the spinning solution will passes through the spinneret to form some fine stream and the fine stream in the coagulating bath to form a filament;
18) Hold the filament by the tool or hand wearing protective gloves and then introduce it through the drafting rollers, heating bath, setting bath and finally to wind onto the winding roller.
About the wet spinning machine, if you have any question please feel free to contact us.
