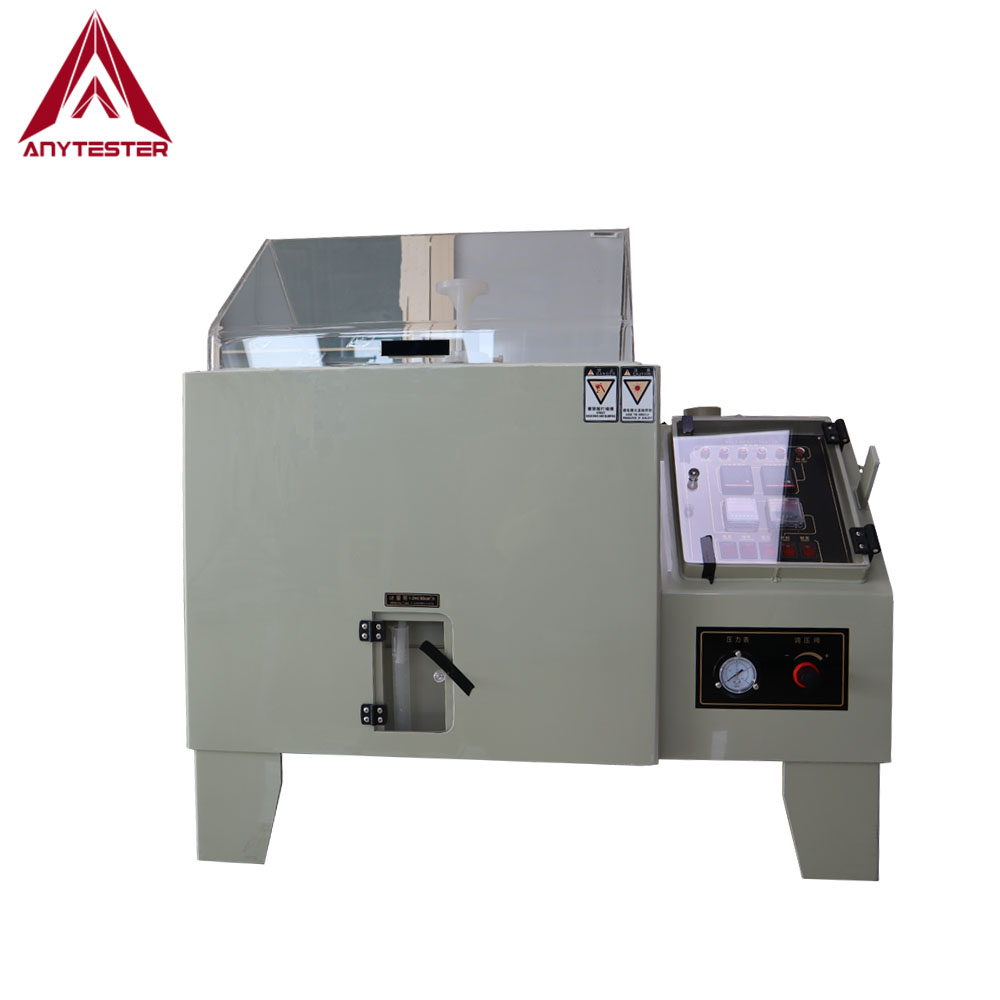

AT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces.
This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.
AT-YW
Anytester
Product Description
AT-YW Series Salt Spray Chamber is used to determine the corrosion resistance to salt fog of specimens. It is used for evaluating the quality and the uniformity of materials surfaces.
This machine conforms to ISO 9227, ASTM B117, DIN 50021, GB/T 2423.17, GB/T 2423.18, etc.

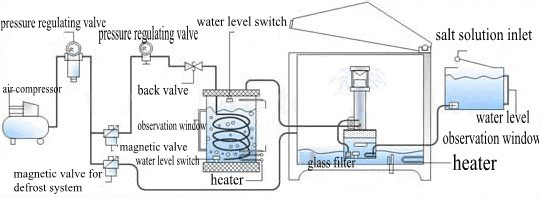

Schematic diagram
Features

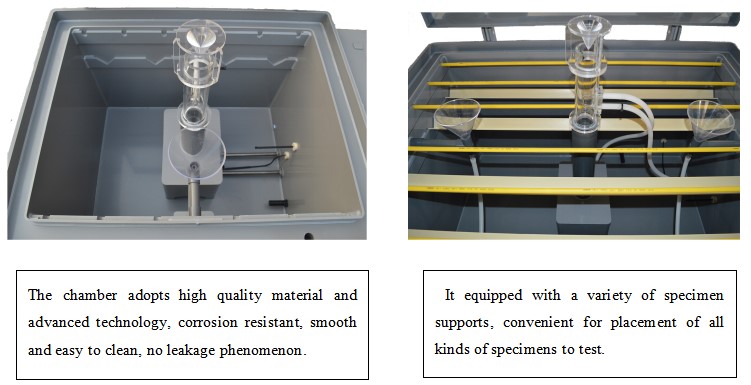

★ Innovative design, chamber structure, easy to install and maintain, stable and reliable;
★ Chamber cover adopts transparent acrylic sheet, 5mm thick, high temperature resistant;
★ Adopts U-shaped alloy heating tube, fast to heat, with resistance to acid and alkali corrosion, long service life;
★ Independent designed acrylic conical atomizer, can adjust the flow of the spray, and can make the fog uniform;
★ Pressure regulating valve adopt concave type design, to prevent wrong operation, and save space.
Technical Specification
Model | AT-YW60 | AT-YW90 | AT-YW120 | AT-YW160 | AT-YW200 |
Inner dim. (cm) | 60×45×40 | 90×60×50 | 120×85×50 | 160×100×50 | 200×100×60 |
External dim. (cm) | 110×67×118 | 141×91×122 | 200×115×145 | 240×135×145 | 280×135×155 |
Test chamber volume | 108L | 270L | 600L | 680L | 800L |
Salt water tank volume | 15L | 25L | 40L | 40L | 60L |
Material Thickness | 5mm | 6mm | 8mm | 8mm | 10mm |
Test chamber temp. | RT＋5℃~50℃ | ||||
Fog quantity | 1～2ml/h.80cm2 | ||||
Temp. fluctuation | ≤±0.5℃ | ||||
Spray tower | Independent designed acrylic conical disperser, can adjust the flow of the spray, and can make the fog uniform | ||||
Spray nozzle | PYREX glass precision nozzle | ||||
Spraying mode | Continuous and intermittent spray selectable | ||||
Timing range | 0-9999.9h | ||||
Interval time | 0~99.9 h | ||||
Power supply | AC220V, 50Hz | ||||
