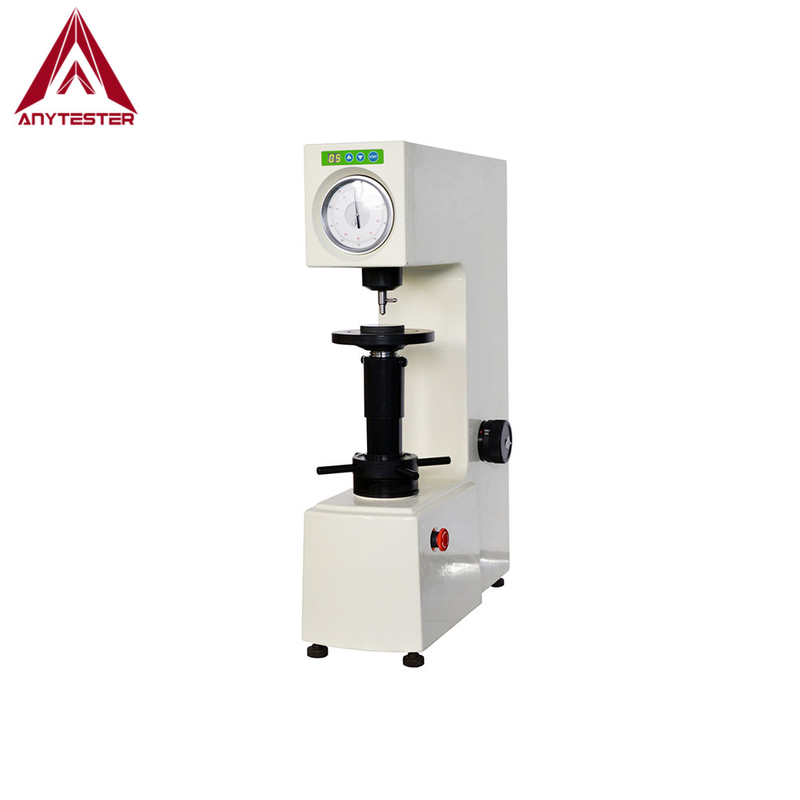

AT150 Rockwell Hardness Tester

AT150 Rockwell Hardness Tester is used to determine the Rockwell hardness of various materials. Used to measure hard plastics, hard rubber, aluminum, tin, copper, mild steel, synthetic resin and friction materials. It adopts an automatic loading and unloading test force mechanism, and the test force transformation is obtained by the rotation of the load changing handwheel. The load holding time can be selected, and the operation is simple and rapid. Except for the zero setting of the dial, there is no artificial operation error, and it has high sensitivity and stability.
  • AT150

  • Anytester

Availability:

Product Description

AT150 Rockwell Hardness Tester is used to determine the Rockwell hardness of various materials. Used to measure hard plastics, hard rubber, aluminum, tin, copper, mild steel, synthetic resin and friction materials. It adopts an automatic loading and unloading test force mechanism, and the test force transformation is obtained by the rotation of the load changing handwheel. The load holding time can be selected, and the operation is simple and rapid. Except for the zero setting of the dial, there is no artificial operation error, and it has high sensitivity and stability.


Standards

ISO 6508

ASTM E18

JIS Z2245

GB/T 230.2


Features

★ It adopts an automatic loading and unloading test force mechanism, and the test force transformation is obtained by the rotation of the load changing handwheel.

★ The load holding time can be selected, and the operation is simple and rapid.

★ Except for the zero setting of the dial, there is no artificial operation error, and it has high sensitivity and stability.


Technical Specification

Model

AT150

Hardness scale

HRE , HRL, HRM, HRR

Initial test force

10kgf (98.07N)

Total test force

60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Test head specification

Φ3.175mm, Φ6.35mm, Φ12.7mm ball

Test force application method

Automatic (loading/holding/unloading)

Hardness reading

dial reading hardness value

Hardness value resolution

0.5HR

Duration Time

2~60s

Max. height of specimen

185mm

Distance from head center to machine wall

165mm

Dimensions

520×215×700mm (W×D×H)

Weight

78Kg
