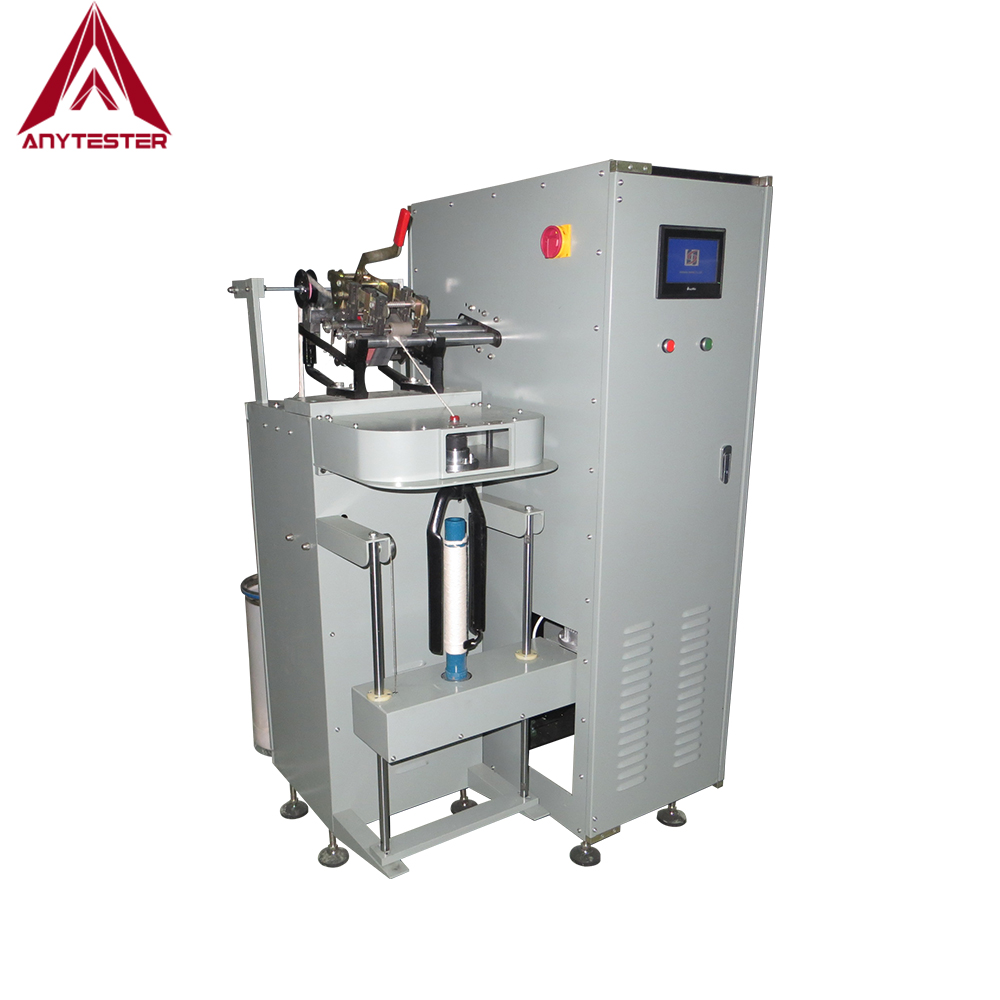

AT205 Laboratory Small Roving Machine

AT205 Laboratory Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine)
  • AT205

  • Anytester

Availability:

Product Description

AT205 Laboratory Roving Machine is part of the mini spinning system (including opener, carding machine, drawing frame, roving machine and ring spinning machine) which is widely used in universities and researching center or departments for spinning test. AT205 Laboratory Roving Machine is used to make roving from drawn sliver.


Features

« Mini machine, save researching cost and easy to operate and maintain;

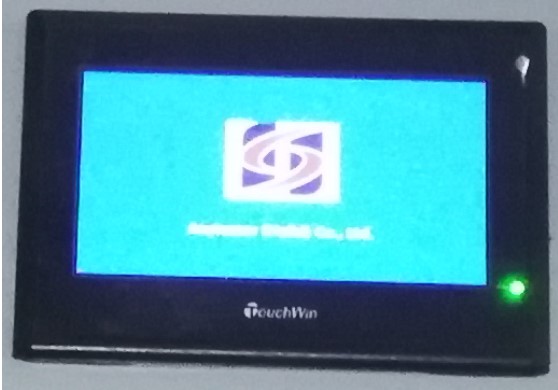

« Touch screen & PLC control;

01

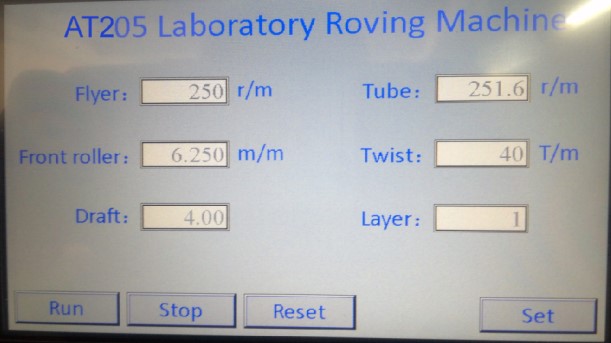

« Friendly human-machine interface, inputting of technical parameters and display of machine running status by touch screen;

02

« Frequency converter of high efficiency to control roll speed;

« Pressurizing system :spring pressure cradle;

03

« Three-up-three-down drafting structure;

Technical Specification

Model

AT205

 Number of spindles

1,2, 4 or customized

Fiber type

Cotton or cotton-type chemical fibers

Customized for wool

Twist range

50~250twists/meter

Draft range

Approx. 2~50

Output capacity

0.25~0.5kg/h

Roll diameter

¢25mm

Output speed

Max. 12m/min

Flyer speed

Max.600rpm

Power supply

AC220V 50Hz, 3KW
