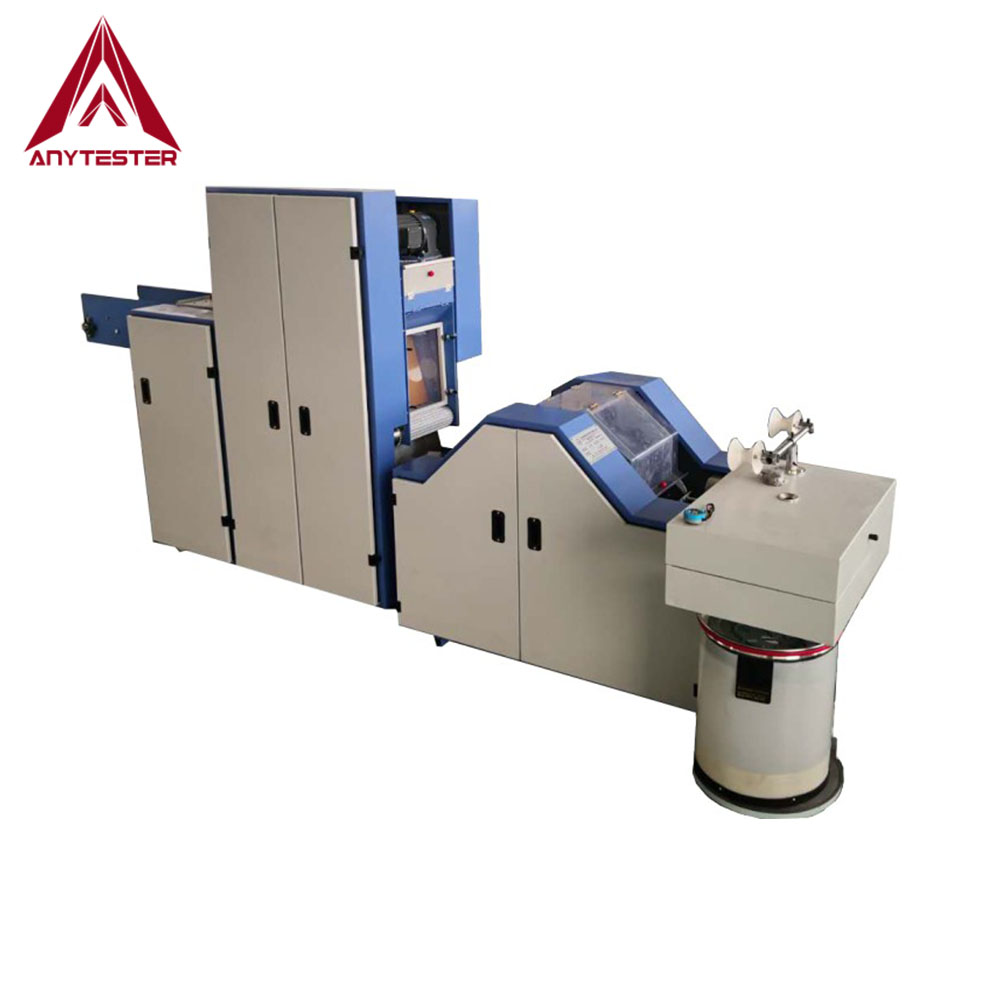

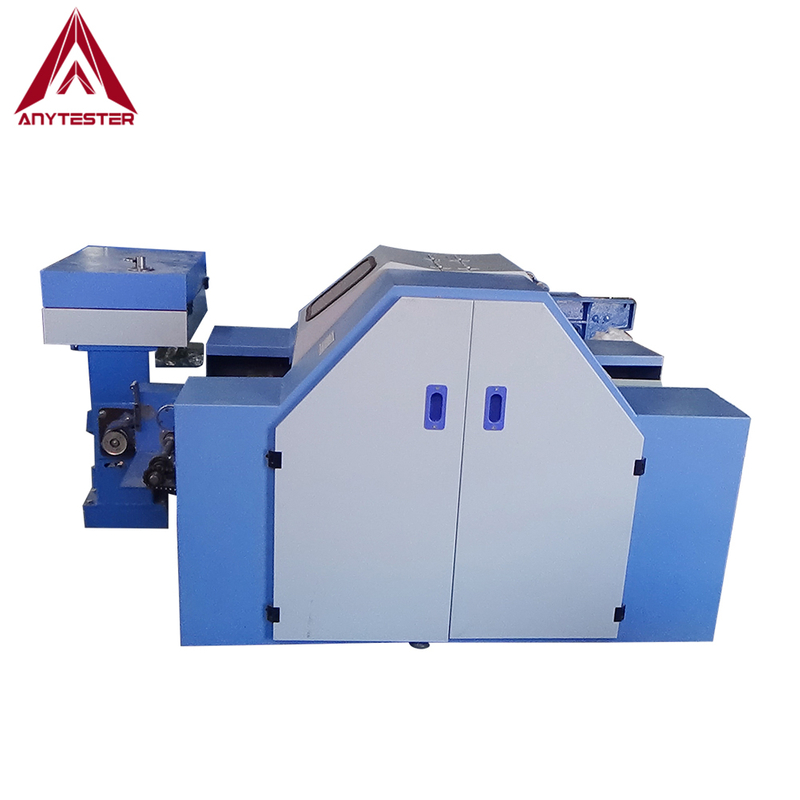

AT202 Laboratory Carding Machine is part of the mini spinning system. It’s mainly used in university, researching center, etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
★ Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for wool fiber or chemical fibers.
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web

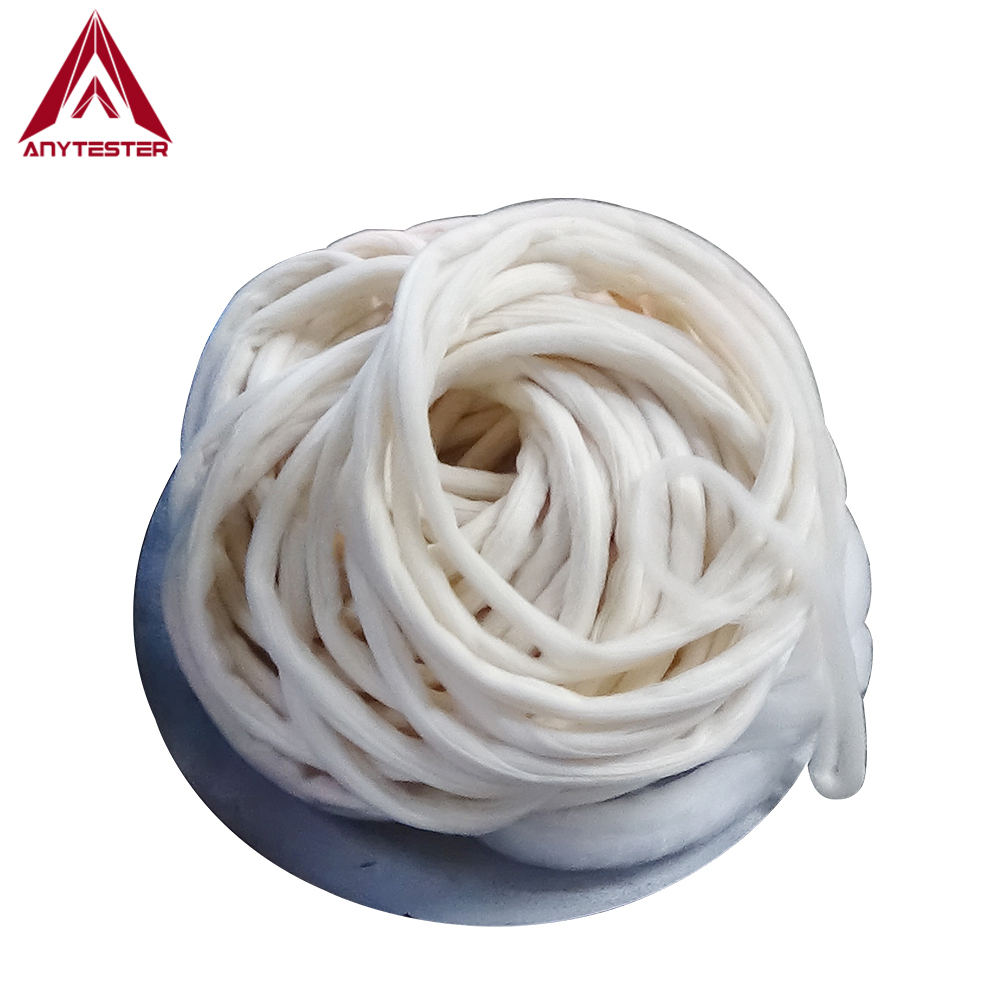

★ It can produce web or sliver according to customer’s selection.
★ With full-closed protective cover.
★ Two rollers feeding.
★ The main engine has a 6 pole 1.1 KW motor to drive, an electric control box controls, and with a totally enclosed protective cover.
Working roll diameter
Wipe roll diameter
Working roll clothing
Wipe roll clothing
Adjustable (Frequency converter control)
Max. fiber length
Villus bucket power
Maine machine power
AC220V/380V, 50/60Hz, 2.2KW
1350mm*950mm*900mm (main machine)
900mm*900mm*1200mm (villus bucket)
