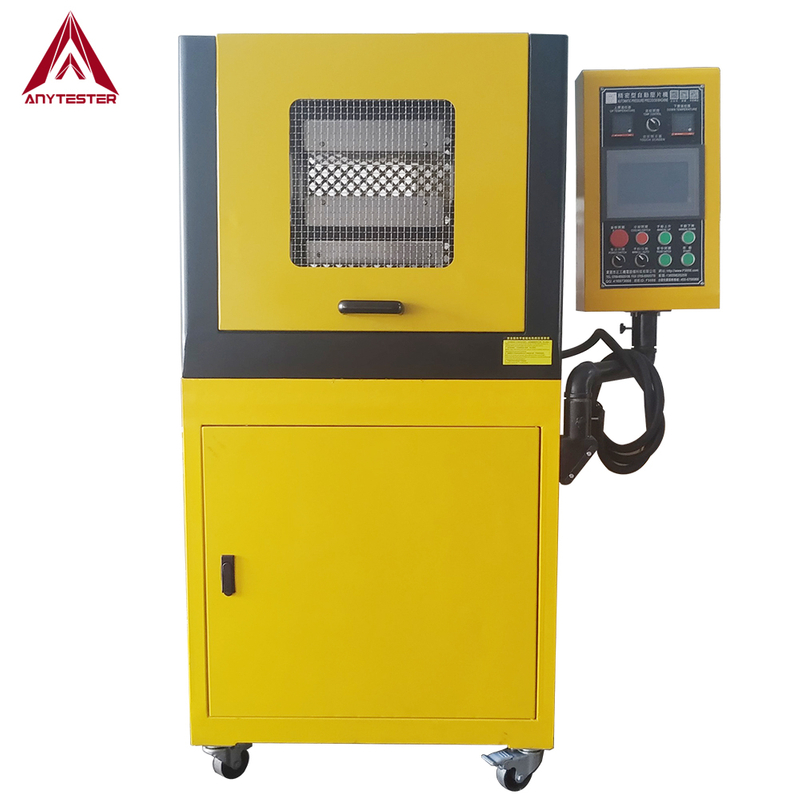

AT391 Series Laboratory Hydraulic Press with Touch Screen Control 10T 20T 30T

AT391 Series Laboratory Hydraulic Press with touch screen control (original HY3891) is used for providing a constant temperature and pressure environment for molding of tensile, impact or other specimens. It is widely used in the automotive, plastics, rubber and textile industry.

  • AT391
  • Anytester
Availability:

Product Description

AT391 Series Laboratory Hydraulic Press with touch screen control (original HY3891) is used for providing a constant temperature and pressure environment for molding of tensile, impact or other specimens. It is widely used in the automotive, plastics, rubber and textile industry.


Features

★ Convenient for preparing samples, accurate, uniform and time-saving

★ Adopted touch screen control, easy and simple to operate

★ Four-post structure, durable, excellent quality

★ Digital display temperature controller, PLC control, accurate and stable

★ Hydraulic pressure control

★ LCD display time, 99min max.

★ Selectable pressure range suitable for a wide range of materials

★ The shape and size of molds can be customized

★ High temperature resistant working plate, surface with carbide quenching treatment to ensure fast heat conduction and pressure balance with no deformation

★ Closed loop control system of proportional hydraulic flow, automatic pressurization, pressure maintaining and pressure relie

★ Real-time display test curve on the touch screen, all the parameter can be set including temperature, pressure, time, etc.

Technical Specification

Model

AT391A

AT391B

AT391C

Capacity

10T, 20T, 30T or customized

Temperature range

RT~300or customized

Temperature accuracy

±2

Timer

LED 0~99min

Heating plate

200*200, 300×300mm, 350×350mm or customized

Cooling method

        /

Water cooling

Water cooling

Heating method

Electric heating

/

Electric heating

No. of working layer

1

1

2

Daylight

0~90mm or customized

Power supply

AC380V, 50Hz, 20A

Dimensions

1100×600×1500mm

Weight

550kg
