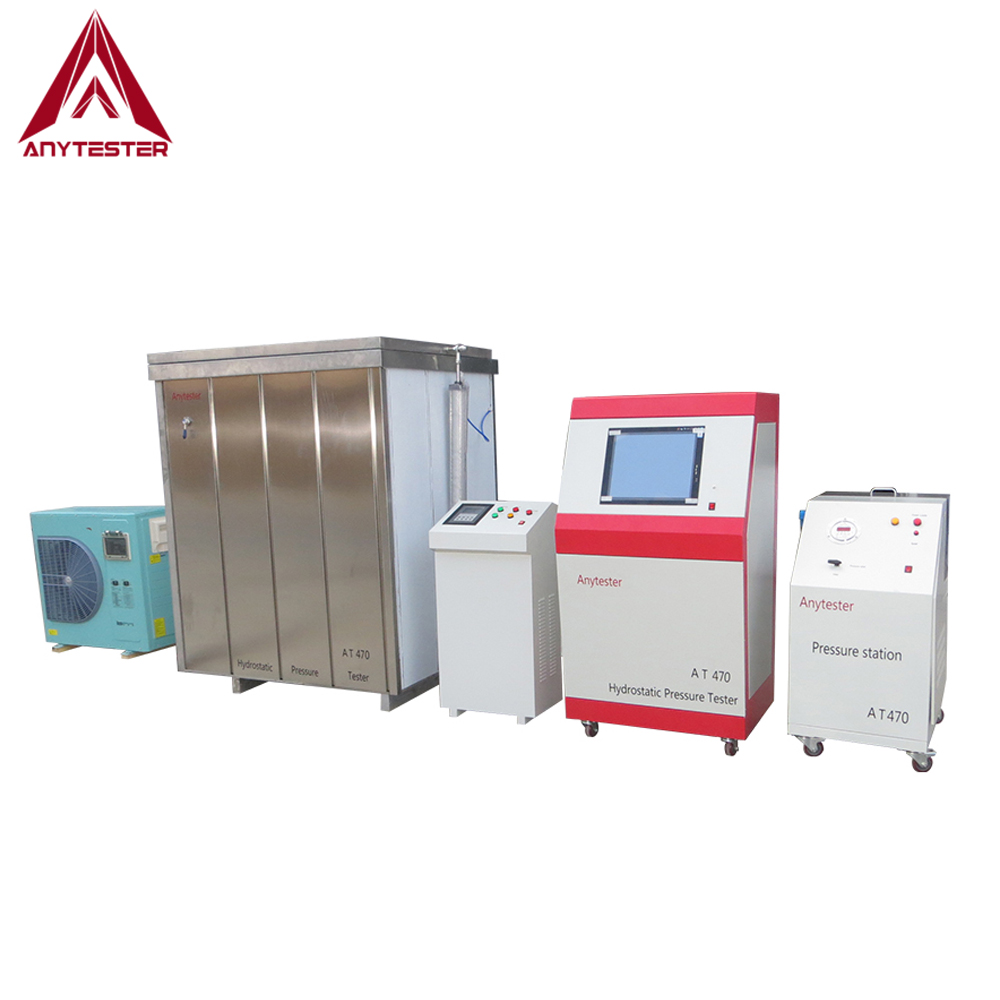

AT470 Plastic Pipe Pressure Testing Hydrostatic Pressure Tester

AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.

  • AT470
  • Anytester
Availability:

Product Description

AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.


Standards

ASTM D1598, 1599

ASTM F1335

ISO 1167, 9080, 1756, 13477

GB/T 15560, 18252, 6111

CJ/T 108


Note: For more standards, please contact us!


Features

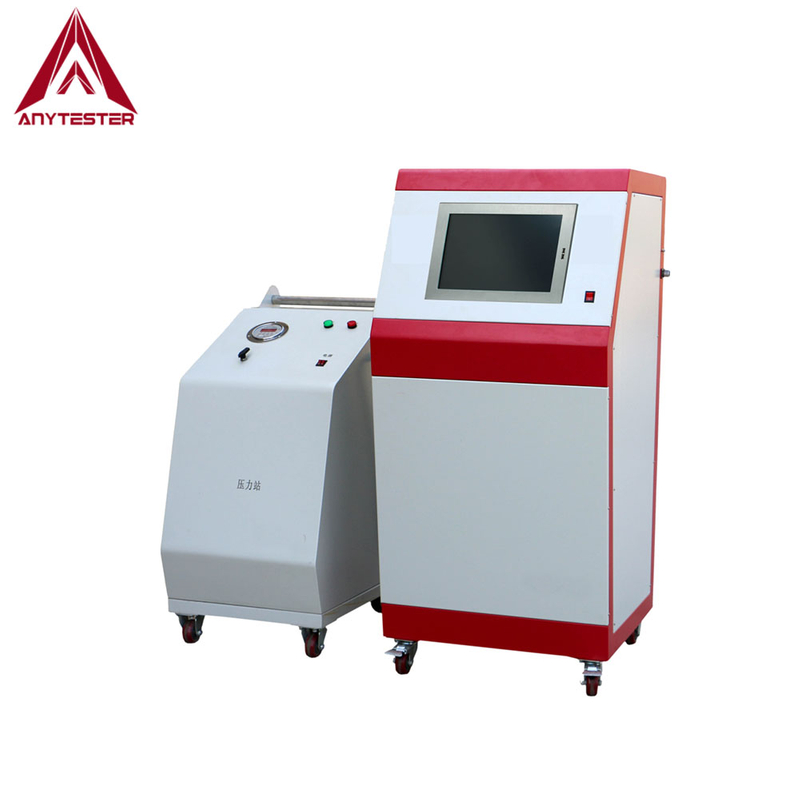

★ The main machine consists of pressure control unit, magnetic valve, sensor, pressure workstation, etc.

★ The number of working position can be customized according to requirement, that is to say, the interface of pressure can be customized such as 3, 6 or 10

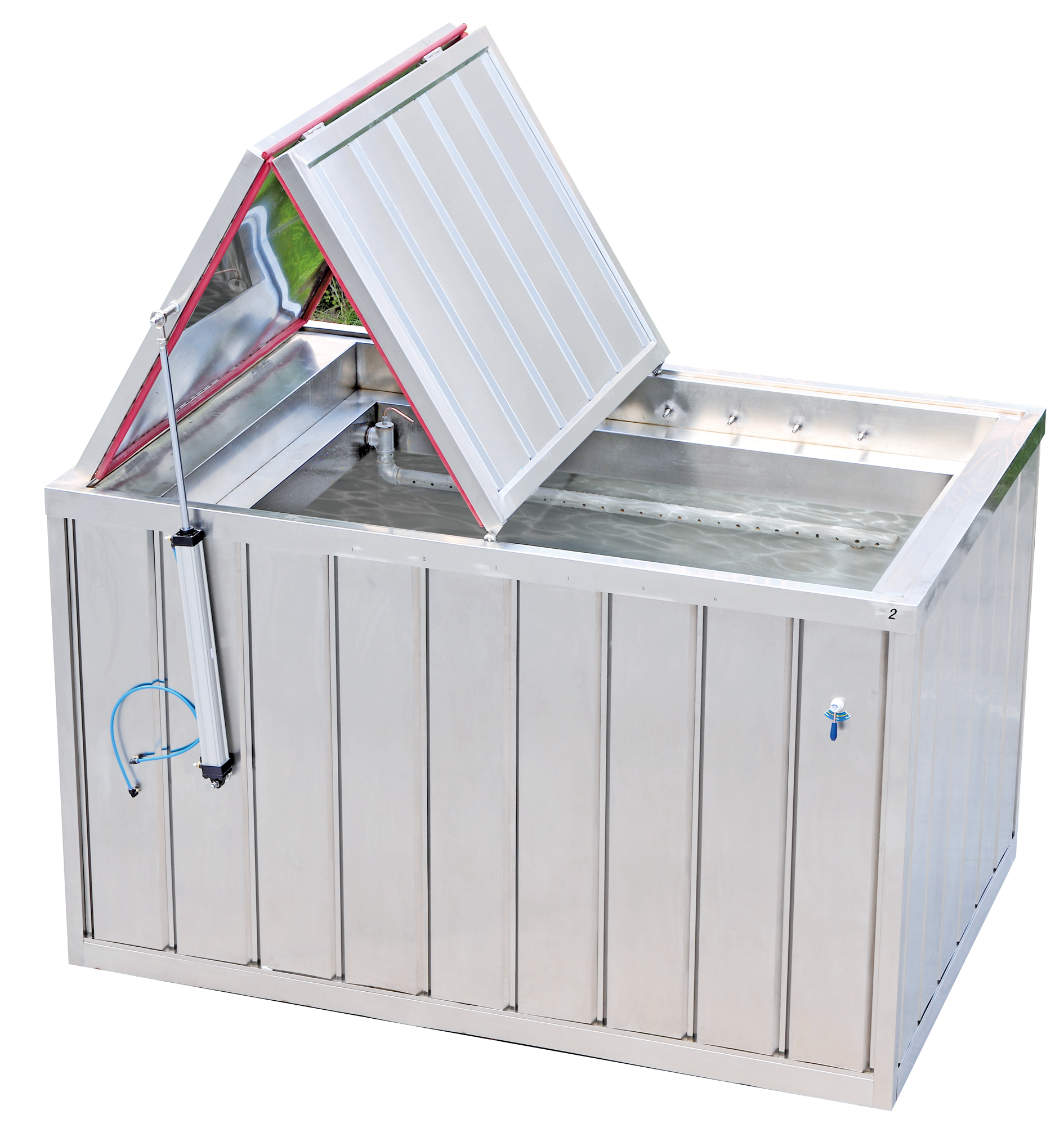

★ The dimension of test tank needed bases on the dimension of test pipes


Specification of the tank:

MODEL

Dimensions (mm)

Power

L

W

H

(kw)

110

750

450

700

6

160

1620

770

1305

9

250

1750

870

1675

9

400

2250

950

1450

12

630-710

2750

1370

1235

18

800-1000

3100

1670

1555

27

1200

3100

1950

1915

54

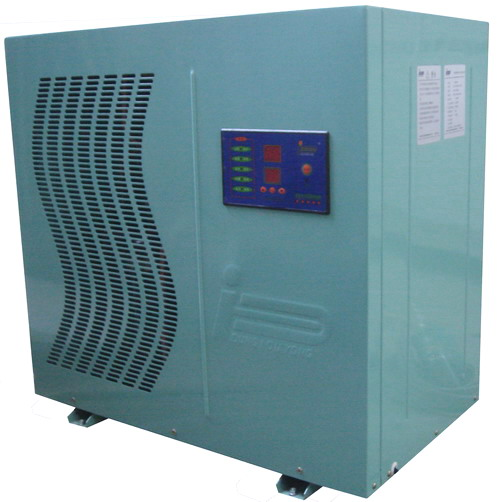

★ Refrigerating system optional. The test tank can be connected with refrigerating machine to perform low-temperature test, thus test temperature can be RT-95℃ or 15~95℃

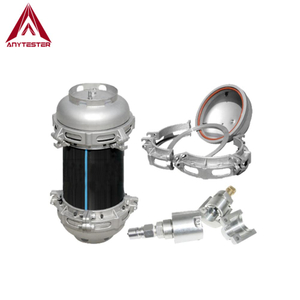

★ Stainless end caps of different diameter can be selected according to customers’ requirement, the material is stainless steel or carbon steel

01

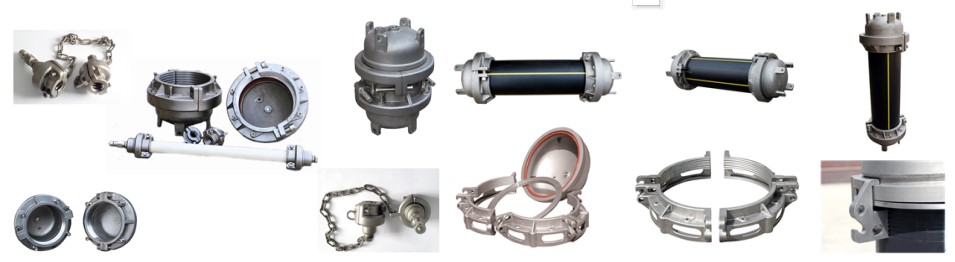

Stainless steel end caps

Specification of the end caps:

End closures

Specification

D16~D1600

Structure

Pan structure

Sealing ring

O-ring

Conversion connector

PT1/4, internal thread, stainless steel material

End closures connector

M12*1.25, internal thread

Pressure range

D16~D110mm

0~10MPa (20MPa max. For D16/20/25 )

Φ125~Φ630mm

0~5MPa

Material

Stainless steel

 ★ One microcomputer control one working position, it can separately set and control pressure, accuracy, time and other parameters while the computer does not work. Real-time display pressure, time and status (8 statuses: pressure rise, pressure compensate, pressure release, over- pressure, run, test over, leakage, burst) and also store these test data. It is also equipped with sound and light alarm when over-pressure, test over, leakage or burst happens

★ Imported (Germany) pressure control electric valve, two pieces for each working position, high accuracy

★ Imported (USA) water pressure station, excellent performance, long service life, low noise, no need to use air source

★ Adopt high precision sensor, the control accuracy can reach ±0.01MPa of set value

★ Can observe, analyze, check, store and print test curve (pressure-time), start time, set time, current time, effective time, ineffective time, remaining time, over-pressure time, pressure compensation time, etc.

Technical Specification

Model

AT470

Pipe diameter range

Φ10~Φ2000mm

Working position

6 positions (1~50 positions can be customized)

Operation mode

Operation panel/PC control

Pressure range

0.2~10MPa (or customized)

Pressure resolution

0.001MPa

Pressure control accuracy

-1%~+2%

Measuring range

5%~100% F.S.

Timing range

1s~10000h

Timing accuracy

±0.1%

Display resolution

1s

Min. Time setting unit

min

Temperature control system

RT-95

(15~95with refrigerating system)

Temperature control accuracy

±0.5

Main body material

304# stainless steel

Power supply

Pressure control main machine

AC220V, 50Hz

Pressure workstation

3phase, AC380V, 50Hz

Constant temperature tank

3phase, AC380V, 50Hz
