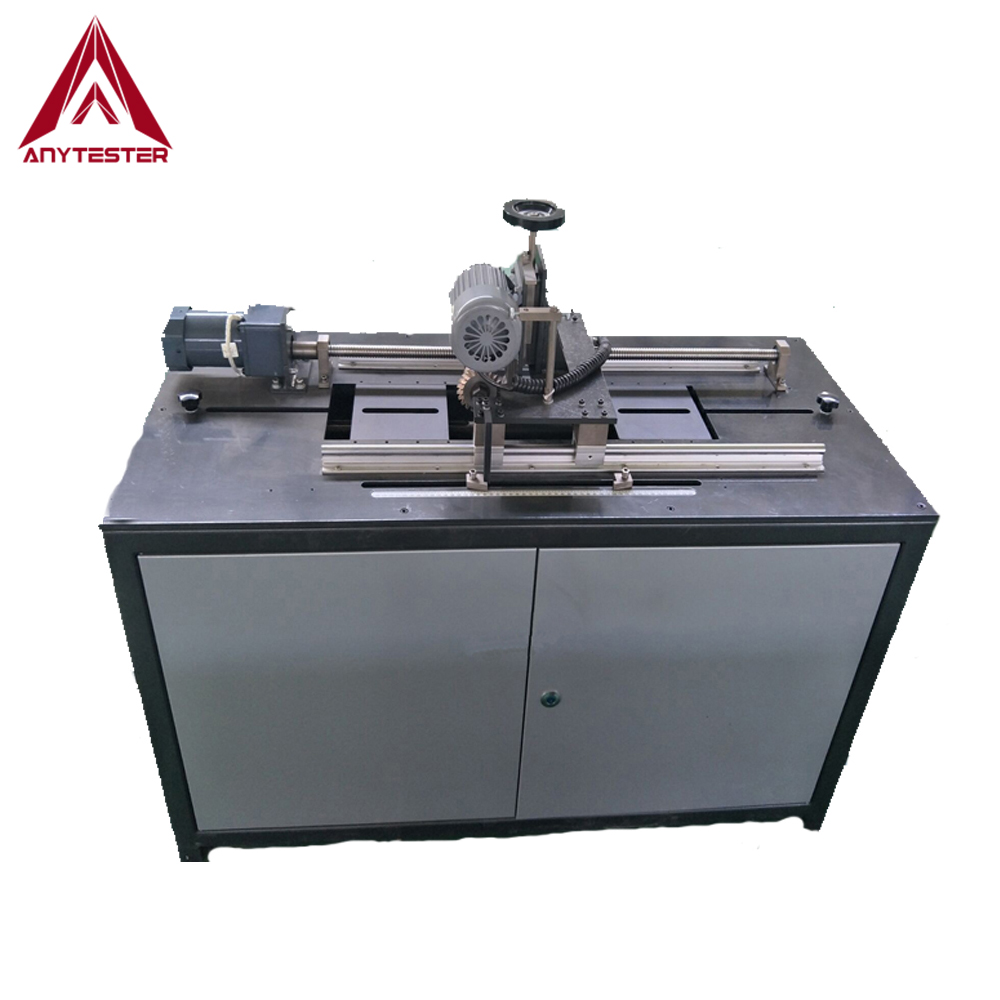

AT405 Axial Notch Milling Machine is used to make pipe samples for cut crack and crack propagation test.
ISO 13479, ISO 1167
★ Our machine adopt high precision digital axis linkage control and high quality V 60 degree cutter which made from cemented carbide to perform the cutting speed and accuracy. The smooth surface makes the notch size reliable and it also avoid the affection to the final test result of resistance to crack propagation.
★ The big full color touch screen and movable platform make the operate more easy.
★ The notch cutter on the above of the sample and equipped with special design handle make positioning the cutter easy.
★ Movable fixing device make the machine suitable for varies size pipe.
★ The automatic sample lifting system and high return speed make the machine high efficient.
★ Special design software allow operator to set milling speed, milling depth, milling times and direction according to the pipe diameter.
★ Multi safety device to protect the operator
Outside diameter of the pipe
Φ63 ~ Φ630mm
Max. pipe length
50mm ~ 650mm
Max. milling depth
Dia. 200mm, 20rev
3 Phase, 220/380V 50Hz
