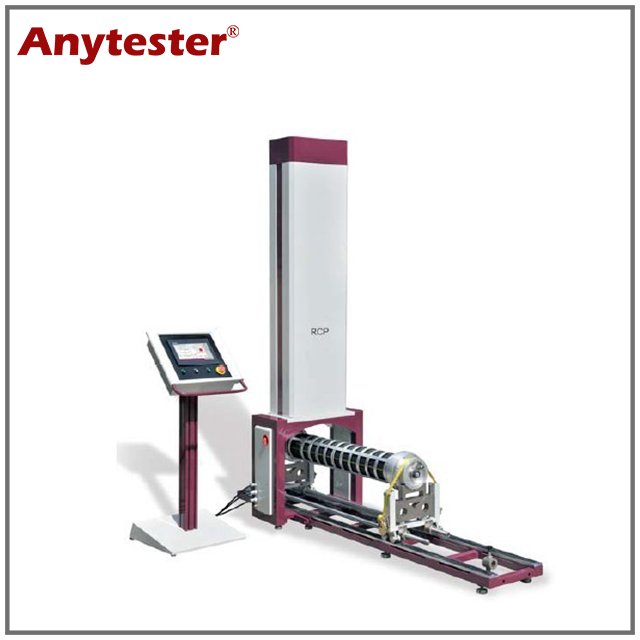

AT472 Rapid Crack Propagation (Rcp) Tester

AT472 Rapid Crack Propagation (RCP) Tester is used to determine the arrest or propagation of a crack initiated in a thermoplastics pipe at a specified temperature and internal pressure by small-scale steady-state test (S4 test). This machine conforms to ISO 13477, GB/T 19280 etc.
  • HY4720

  • Anytester

Availability:

Product Description

AT472 Rapid Crack Propagation (RCP) Tester is used to determine the arrest or propagation of a crack initiated in a thermoplastics pipe at a specified temperature and internal pressure by small-scale steady-state test (S4 test). This machine conforms to ISO 13477, GB/T 19280 etc.


Features

RCP Test Units:

This Tester is necessary to for gas pipeline manufacturer etc. The sample is mainly the pipe that used to delivery gas and liquids.

★ Rational structure and accurate impact speed. There is energy storage device in basic unit, which shall convert elastic potential energy into kinetic energy,that the impact speed range can be controlled between 1m/s and 20m/s.

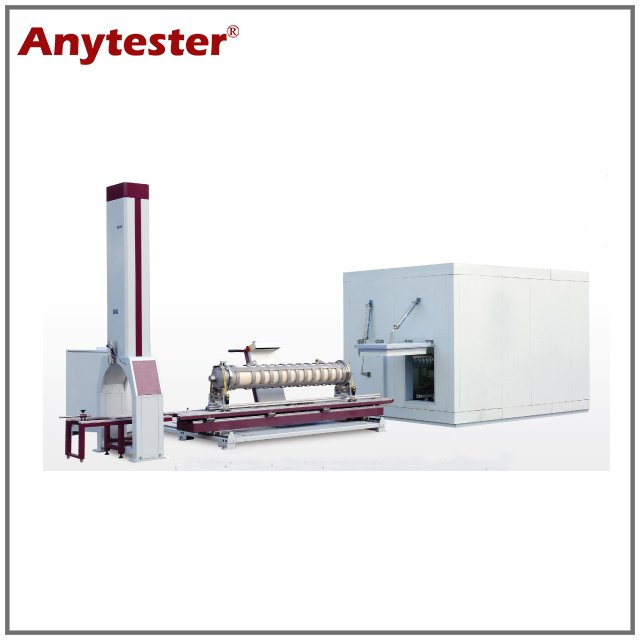

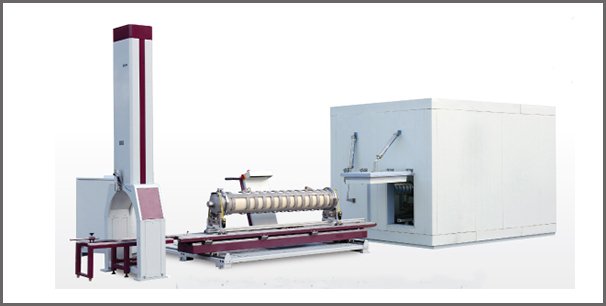

HY4720 Rapid Crack Propagation (RCP) Tester.jpg

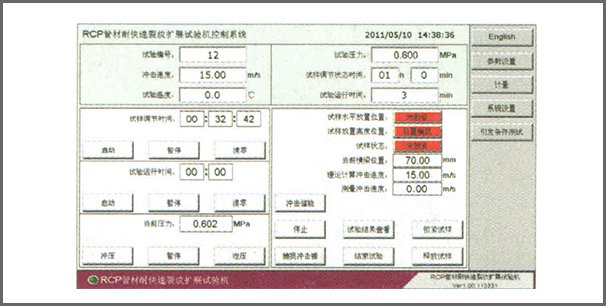

★ Friendly man-machine interface, Industrial control terminal was introduced and colorful touch screen display provides more information to operator, such as sample pretreatment time, pipe inside current pressure, impact speed, length of crack and test temperature, etc.

HY4720-2 Rapid Crack Propagation (RCP) Tester.jpg

★Fast pressure filling and accurate pressure control. High pressure N2 source, pressure is settable during 0 ~ 2.5 MPa, high accuracy, easy to operate and fast to filling pressure, especially for large diameter pipe. For pipes DN200 to DN500, setting pressure can be arrived within 30s.

★ Special design module to make easy for system updated and extended to be suitable for different sizes of pipes.

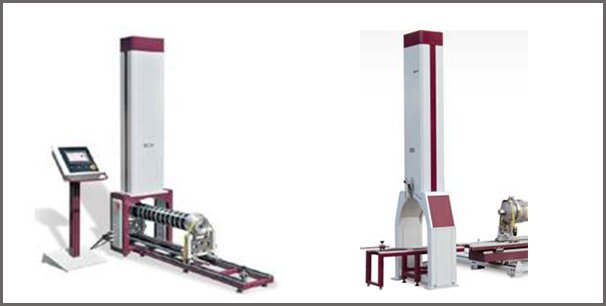

★ High rigid frame enhance the bearing strength of system and multiple buffers in the frame reduce impact force from the high velocity striker, so that the component connection keep perfect after repeated trials.

HY4720-4Rapid Crack Propagation (RCP) Tester.jpg

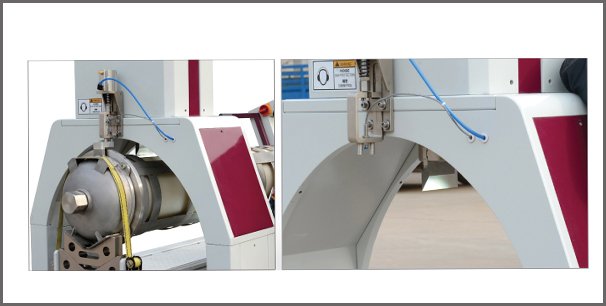

★ High strength impacts die. The die is made up by alloy steel, high hardness and more durable. The machine can equip with different dies.

HY4710-3 Rapid Crack Propagation (Rcp) Tester .jpg


Technical Specification

Model

AT472

RCP   Test Unit

Test pipe size (external   diameter)

Max. Φ250, Φ315mm or Φ500mm

Pressure range and accuracy

Max. 2.5MPa, 0.5 grade

Impact speed

10m/s, 15m/s, /20m/s   selectable or 5m/s ~ 15m/s adjustable at the grade of 0.5m/s

Speed accuracy

±0.5m/s

Pressure medium

Nitrogen

Pressure range

2.5Mpa

Pressure accuracy

Grade 0.5

Striker   blade release

Pneumatic

Pneumatic   energy storage

Motor drive

Speed   measurement

Independent measurement, serial   communication interface

Storage   mode

USB stick

Power supply

Single-phase, 220VAC, 50Hz, 1kw

Protection class

IP55

Air source

3~4MPa

Dimensions

Main machine

830×710×2420mm (L×W×H)

External track

3000×370×75mm (L×W×H)

Main controller

450×500×1300mm (L×W×H)

Weight

Main machine

400kg

External track

100kg

Main controller

50kg

RCP Low Temperature Conditioning Room

Working station

2 or 4

Cubage

10.5m3

20m3

Temperature range

R.T ~ -30

Temperature accuracy

±3

Temperature resolution

0.1

Cooling power

5P, 10.7Kw/h

8P, 17Kw/h

Dimension

2220*3000*2300mm

4140*3000*2300mm

Power supply

3 phase, 380V, 50Hz

Weight

650Kg

RCP Sample Delivery System

Control model

Touch screen control

Working stations

2

4

Sample delivery power

Pneumatic and motor drive

Distance

3400mm

Speed

370mm/s

Air source

0.8MPa

Power supply

1 phase, 220V, 50Hz
