AT442 Series Universal Testing Machine (original model HY4210) is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of plastics, rubber, textile, geosynthetics, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards.
AT442 Series Universal Testing Machine is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of plastics, rubber, textile, geosynthetics, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards.
IS0 527-1993, ISO 604-2002, ISO 178-2004, ISO 1209-1-2007, ISO 1209-2-2007,
ASTM D 638-2008 etc.
ISO 37, ISO 34, ISO 5893, ASTM D 2707 etc.
ASTM D 434, 2261, 3936, 4533, 4964, 5034, 5035, 5735
ISO 2062, 5082, 9073.4, 10321, 4606，13934-1, 13934-2, 13937-2, 13937-3, 13937-4, 13935-1, 13935-2 etc.
Note: For more standards, please contact us
★ The high stiffness frame incorporates a crosshead guidance system to prevent side loading of the test sample
★ Imported Servo motor and control system, low noisy and high accuracy

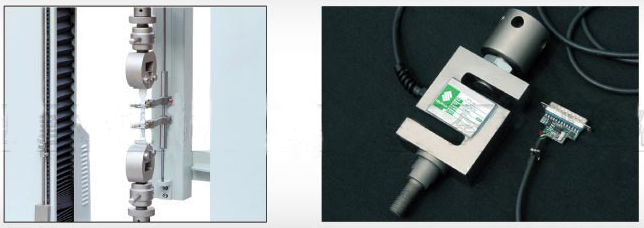

★ Imported high accuracy interchangeable load cells (SUNCELLS, USA) (0.5% of reading)，having advantages of automatic recognition of the measuring range , controlling parameters and its attributes
★ Professional software have real time display of on-going testing with data, curve, graphic, and table by personal computer

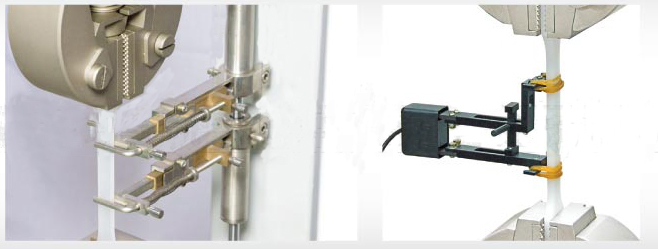

★ Extensometer, inner diameter measurement system and ring stiffness software is available as options
★ Incorporating world proven 32 bit technology for highly accurate load measurement and rapid date acquisition
★ Control system platform is based on TI’s DSP control chip, adopt USB connection port

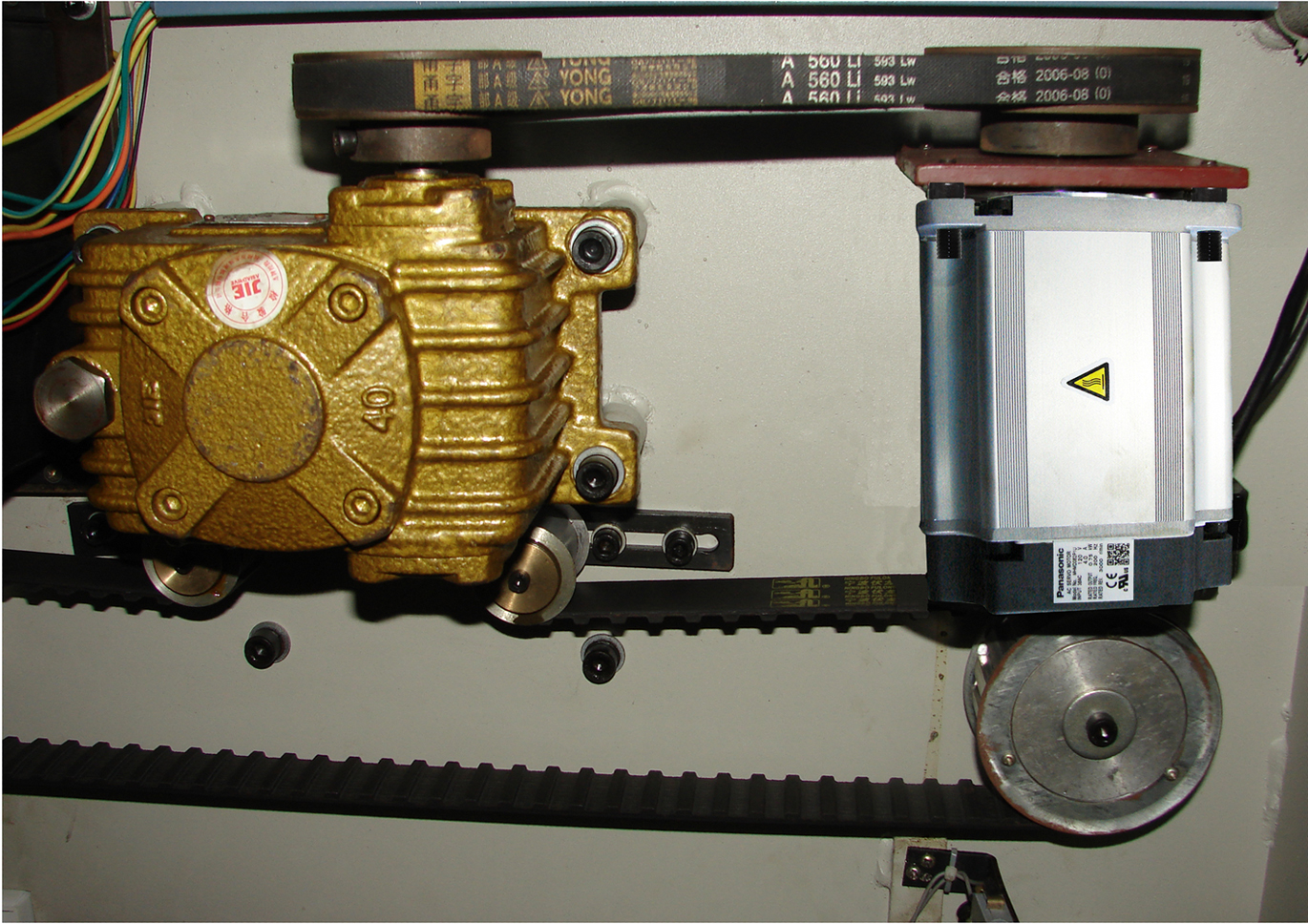

★ Import reducer and ball screw lead support system and A/D converter to provide accurately positioning
★ Three Closed-loop control system for stress, strain, displacement, high accuracy and more stable
★ An extensive built-in library of test methods covering ASTM, ISO, DIN, EN and other test standards
★ Test automation and batch testing, 600 test results available

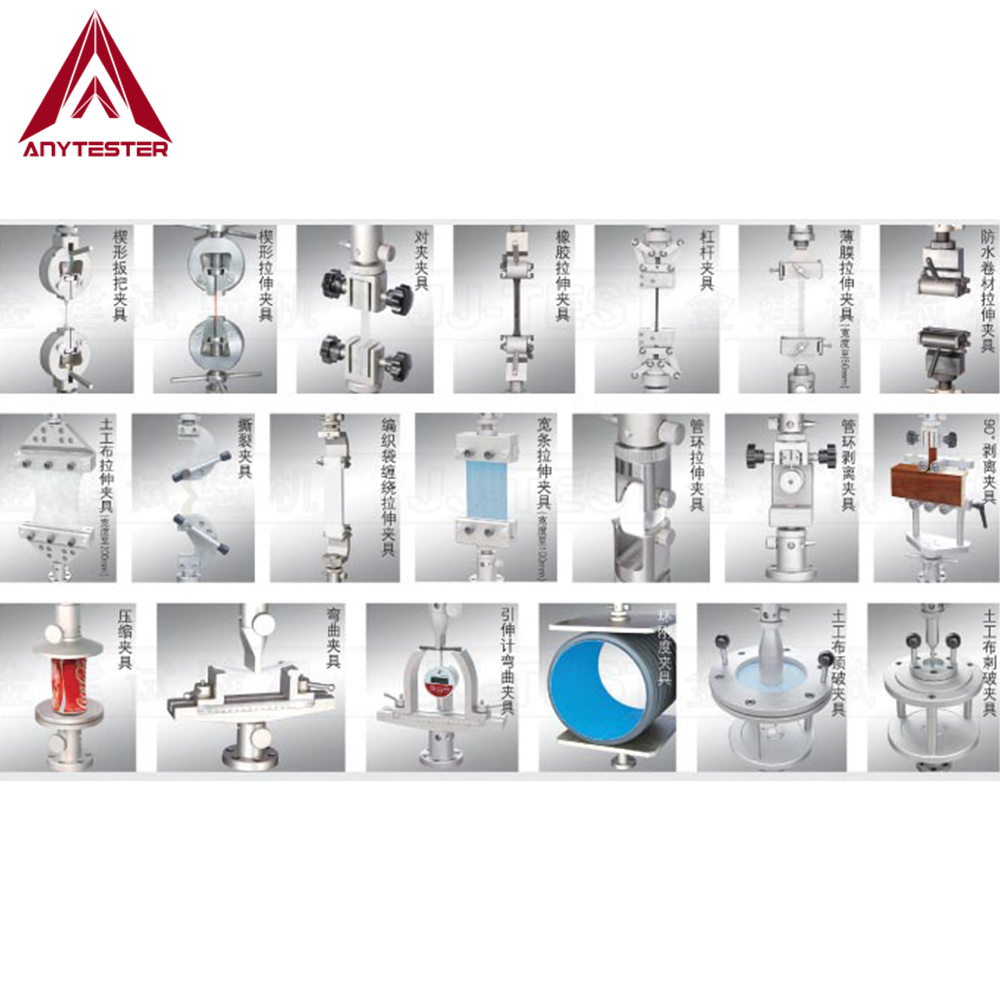

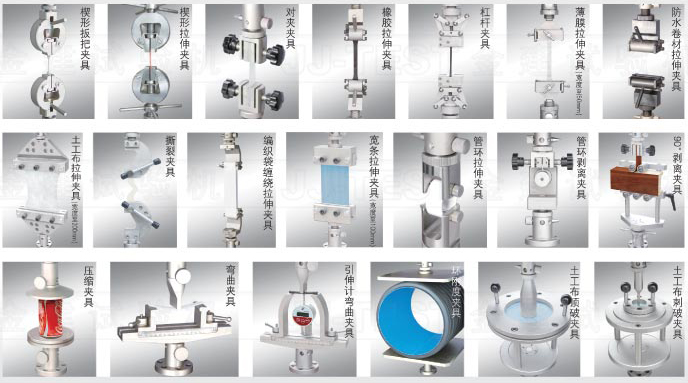

★ Varieties of grips are provided on customers’ requirements
★ The design meets CE requirements for safety.
