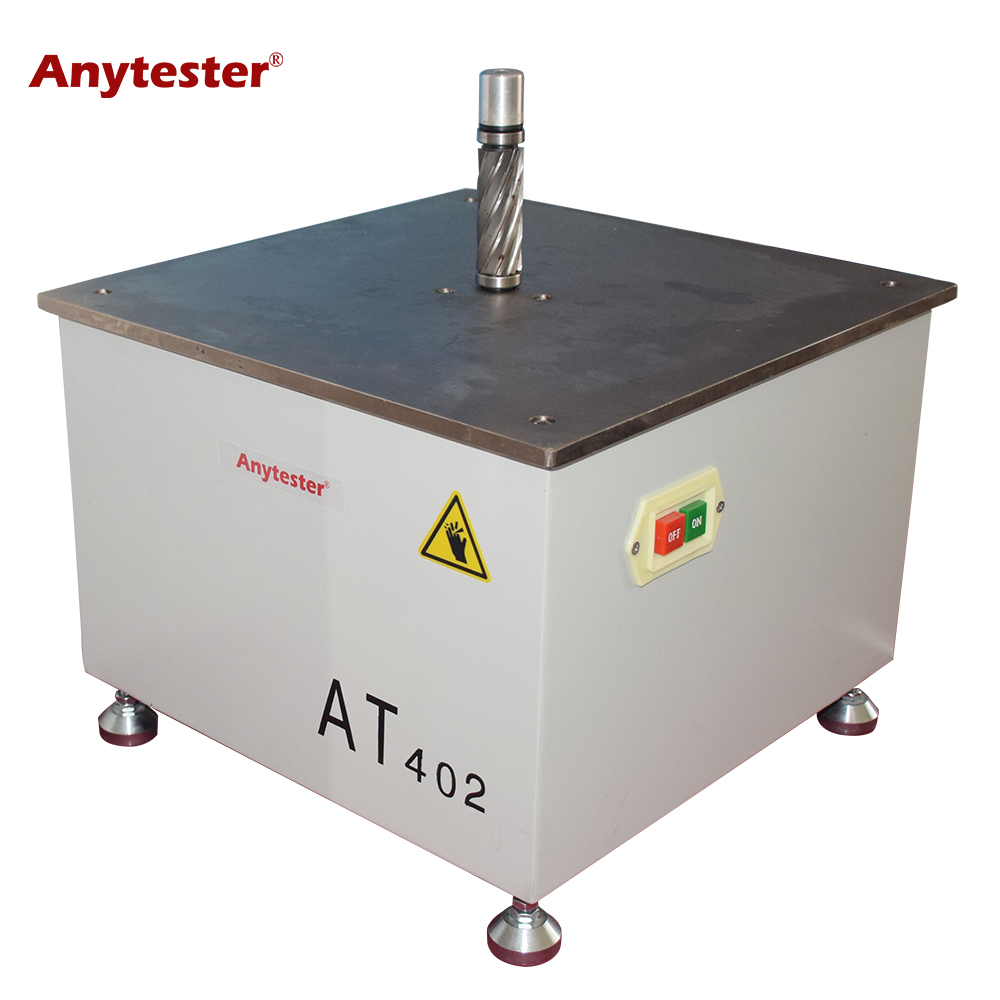

AT402 Dumbbell Sample Milling Machine

AT402 Dumbbell Sample Milling Machine is designed for the purpose of preparing dumbbell-shaped non-metallic test specimens.
  • AT402

  • Anytester

Availability:

Product Description

AT402 Dumbbell Sample Milling Machine is designed for the purpose of preparing dumbbell-shaped non-metallic test specimens.

Standards

GB/T   8804.2

GB/T   8804.3

GB/T1040

GB/T   8802

GB/T 1633




Features

   Do not need to repeat confirm the knife, improve work efficiency

   The shape and size of the sample are controlled by the equipment, avoiding the differences in the sampling caused by of different user

   Equipped with a vacuum cleaner, to ensure that the preparation process of the environment clean

   Smooth and no burr on the cutting surface of the specimen, which avoids the influence of the processing defects on the tensile test results


Technical Specification

Model

AT402

Max. sample thickness

20mm

Milling cutter dia.

30mm

Rotating speed

2810r/min

Dimension

500mm×450mm×450mm

Power supply

AC380V 50Hz 180w

Weight

70kg
