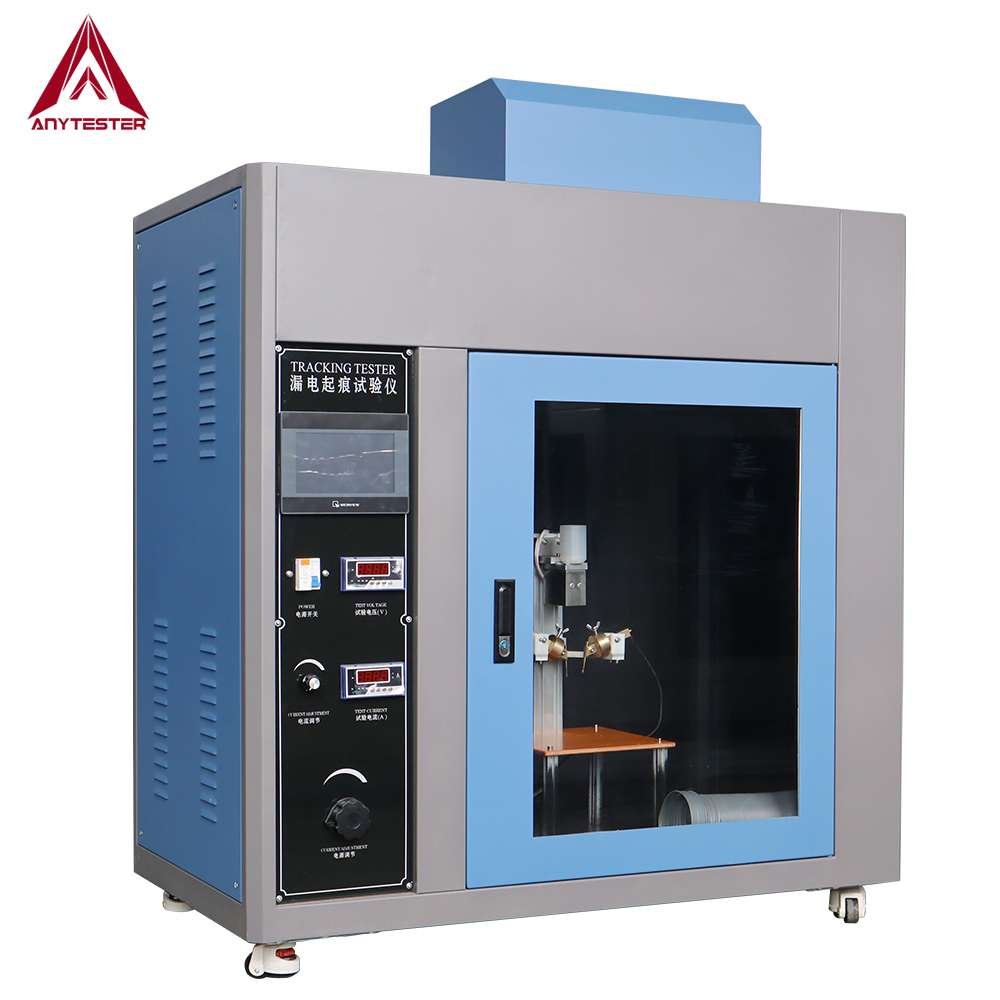

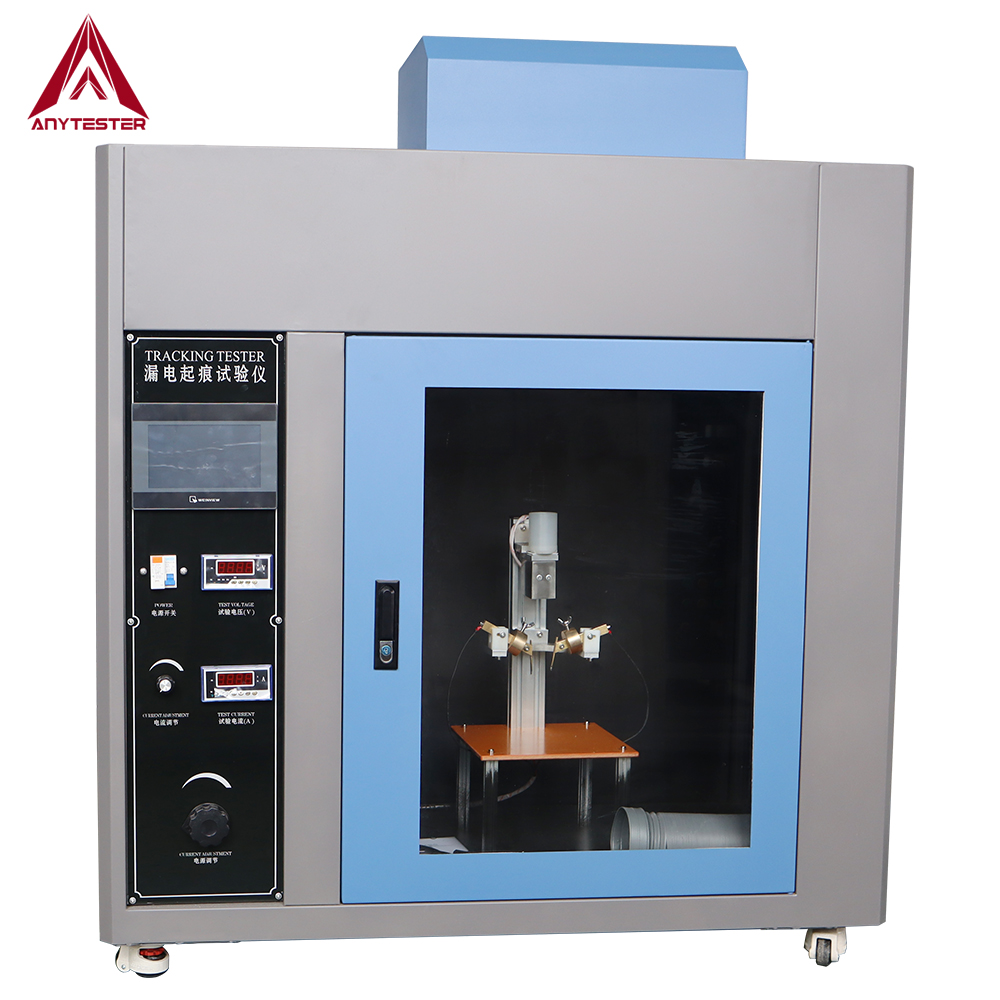

AT804 Tracking Index Tester IEC 60112

AT804 Tracking Index Tester is used to test on the insulated material surface, apply certain voltage between size of 2mm×5mm platinum electrodes for 30 secs, then drip conducting liquid (0.1%NH 4 CL) in the height of 35mm, to test the tracking resistance of the solid insulated material under humid surrounding and electric field. It can also test CTI and PTI.

★ Using digital instrument control system, import control components;

★ Fixture made of high quality stainless steel, corrosion-resistant, no rust;

★ One-button time device, to facilitate the use of equipment, simple operation;

★ Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;

★  Tempered glass observation window, the entire test process can be observed Technical Specification:
