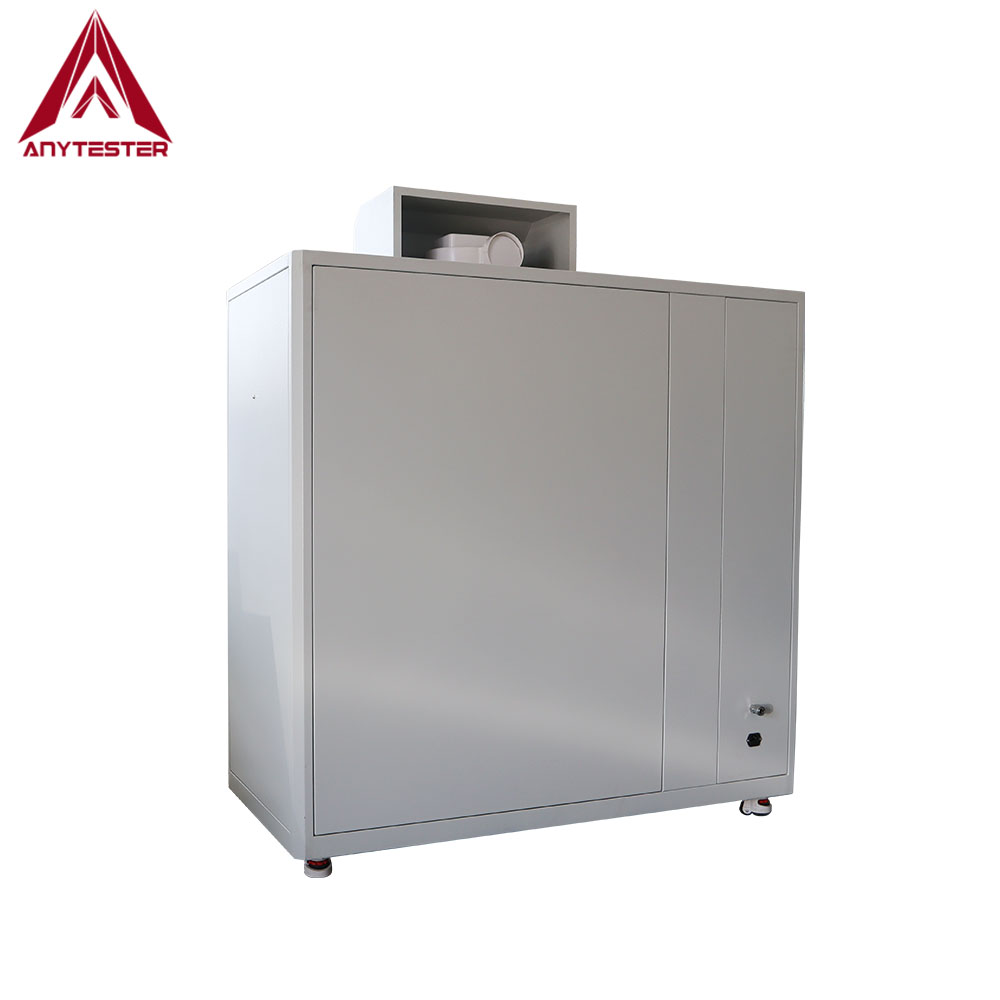

AT810 Horizontal And Vertical Flammability Tester UL94

AT810 Horizontal and Vertical Flammability Tester: A rectangular bar-shaped test specimen is supported horizontally or vertically by one end and the free end is exposed to a specified test flame. Observe if the specimen and ignition on layer is ignited or burning time and to determine the combustibility of specimen.
  • AT810

  • Anytester

Availability:

Product Description

AT810 Horizontal and Vertical Flammability Tester: A rectangular bar-shaped test specimen is supported horizontally or vertically by one end and the free end is exposed to a specified test flame. Observe if the specimen and ignition on layer is ignited or burning time and to determine the combustibility of specimen.


Standards

ISO 1210, 9770 , 9772 ,9773

ASTMD 5207

UL94, UL HB

GB/T 24085169.16/17, 83325169.16/17, 8332

HF-1, HF-2

IEC60695-11-10/20


Features

★ Using digital instrument control system, import control components;

★ Meet the latest test standards;

★ Shell with 2mm cold plate outdoor powder paint, both inside and outside the color;

★ Multi - functional adjustment fixture, professional anti - rust treatment;

★ One-touch operation design, single person to complete the job independently;

★ High-power exhaust system, effectively prevent smoke corrosion;

★  Silent, up and down design of tempered glass sliding window

11

Technical Specification

Model

AT810

Inclination

0°, 20° , 45°

Flame height

20mm ~ 175mm(adjustable)

Burning time

1s999.9s

Remove time

1s999.9s

Ignition times

1-9999times

Thermocouple thermometer

0.5mm K type, imported insulated high temperature armored thermocouple

Test space

>0.7m3

Temp measure range

0~1050℃

Dimensions

1200×600×1120mm

Power supply

220V 50Hz

Weight

120kg
