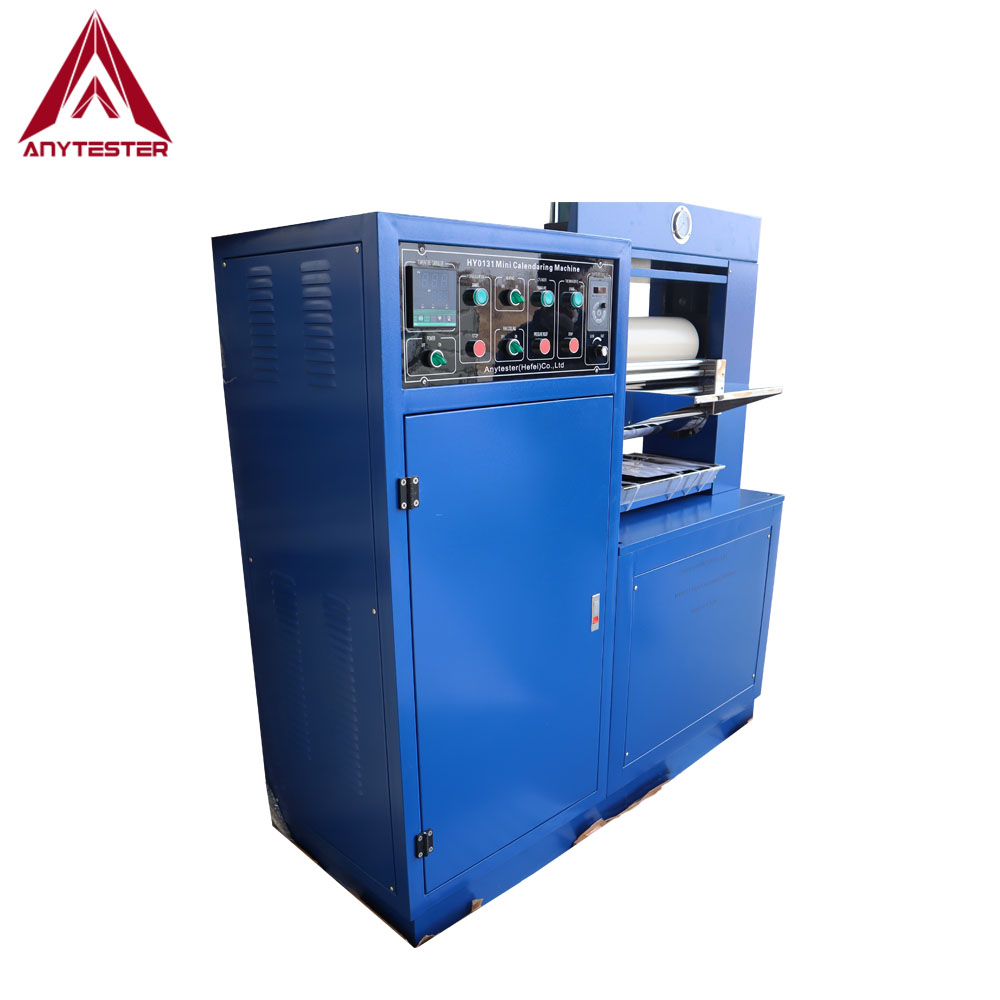

HY0131 Laboratory Calender

HY0131 Laboratory Calender is specially designed for calendaring test in laboratory. It is a finishing machine for various textiles after printing and dyeing, such as pure cotton, chemical fiber, hemp, wool spinning and blending fabrics. It can make fabric luster and smooth.

  • HY0131

  • Anytester

Availability:

Product Description

HY0131 Laboratory Calender is specially designed for calendaring test in laboratory. It is a finishing machine for various textiles after printing and dyeing, such as pure cotton, chemical fiber, hemp, wool spinning and blending fabrics. It can make fabric luster and smooth.


Features

★ It consists of roller driving system, hydraulic loading system, roller cooling device, etc.

★ Upper roller is gravity nylon roller and lower roller is chrome plated heating roller treated with mirror grinding.

★ It’s equipped with emergency stop button on the control panel. The motor has reverse function, once the machine stop after pressing safety button, the motor will turn back.

★ The roller running speed and work pressure between the rollers are all adjustable.


Technical Specification

Model

HY0131

Roller

2pcs

width:400mm, dia.:150mm

Max. working width

500mm

Working speed

0~6m/min

Max. temperature

180

Max. linear pressure

5T, hydraulic type

Heating method

Electric heating, 3kw

Power supply

380V, 50Hz

Max. Power

4kw

Dimensions

1430×600×1650mm

Weight

1200kg
