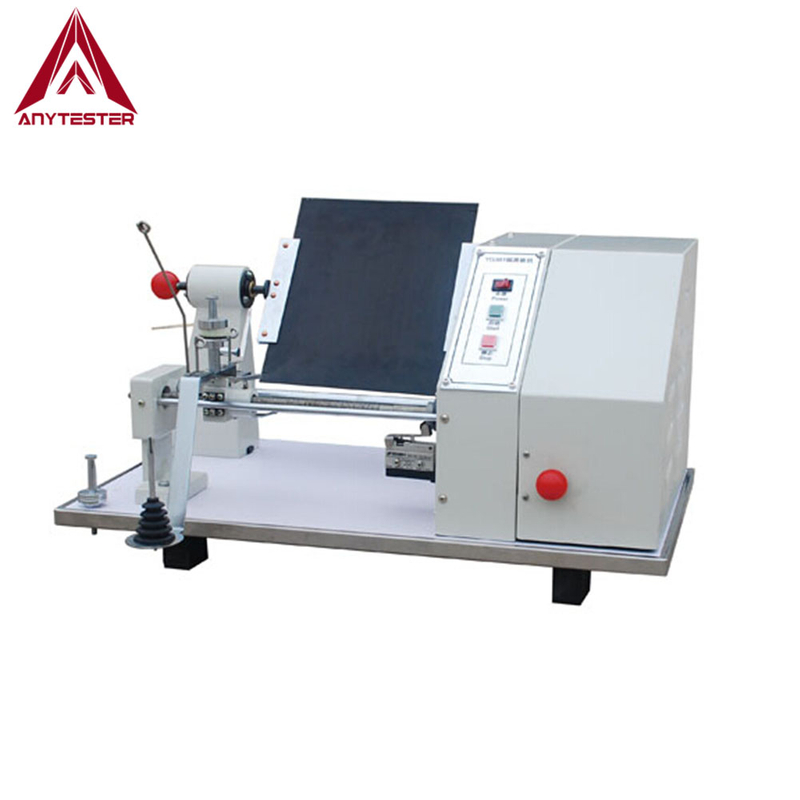

HY0381 ASTM D2255 Textile Yarn Examining Machine

HY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.
  • HY0381
  • Anytester
Availability:

Product Description

HY0381 Series Yarn Examine Machine is used to assess the evenness, hairiness, neps and other imperfections in a representative sample of various yarn wound at a pre-determined yarn density onto a quadrate/tapered black or white board.


Standards

ASTM D2255

GB/T 398, 5324, 9996

FZ/T 32004, 32005


Feature

★  Driven by synchronous motor, and digital controlling circuit, ensure uniform pitch during a test

★ Various pitches to satisfy comprehensive requirements of different yarn linear density;


★ Two type board for selection, white board for black yarn (HY381A)

★ Equipped with alternative pre-tension device


★  Auto-stop function

★  Adjustable winding speed

★  The material of board is aluminum, it’s more durable.

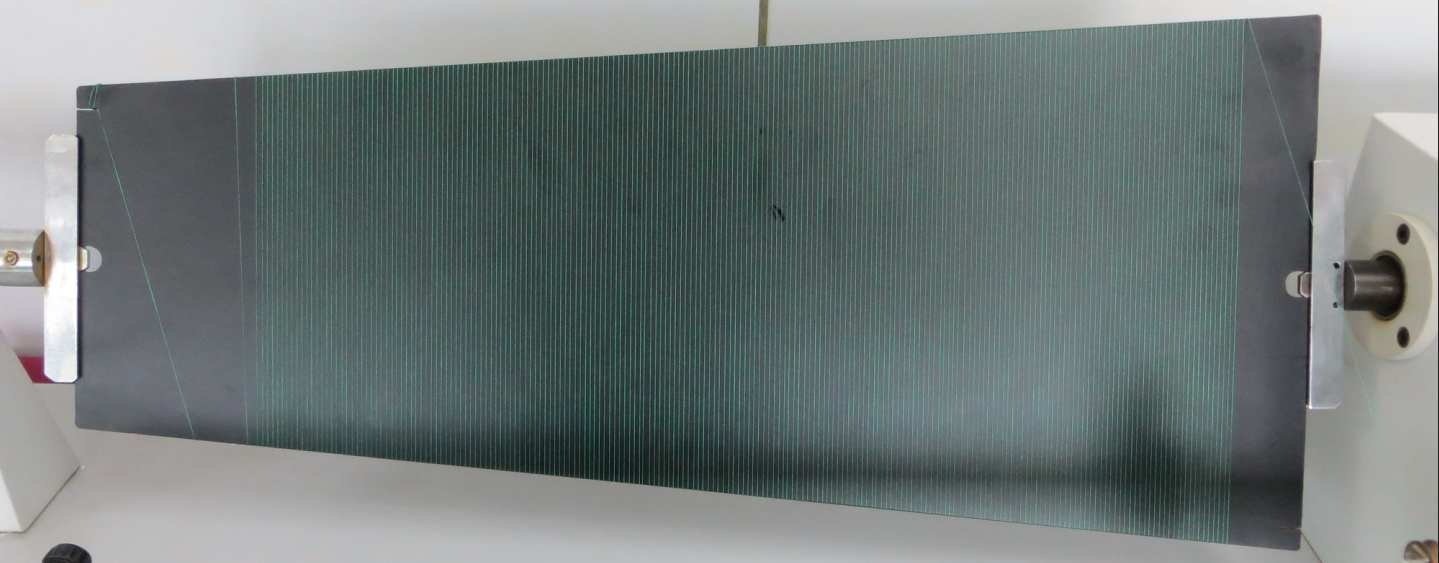

★  Perfect winding appearance



Technical Specification

Model

HY0381

HY0381A

HY0381M

Board size

220×250mm

 (L×W)

575mm×250mm×160mm

(L×W1×W2)

300×225mm

(L×W)

Board shape

quadrate

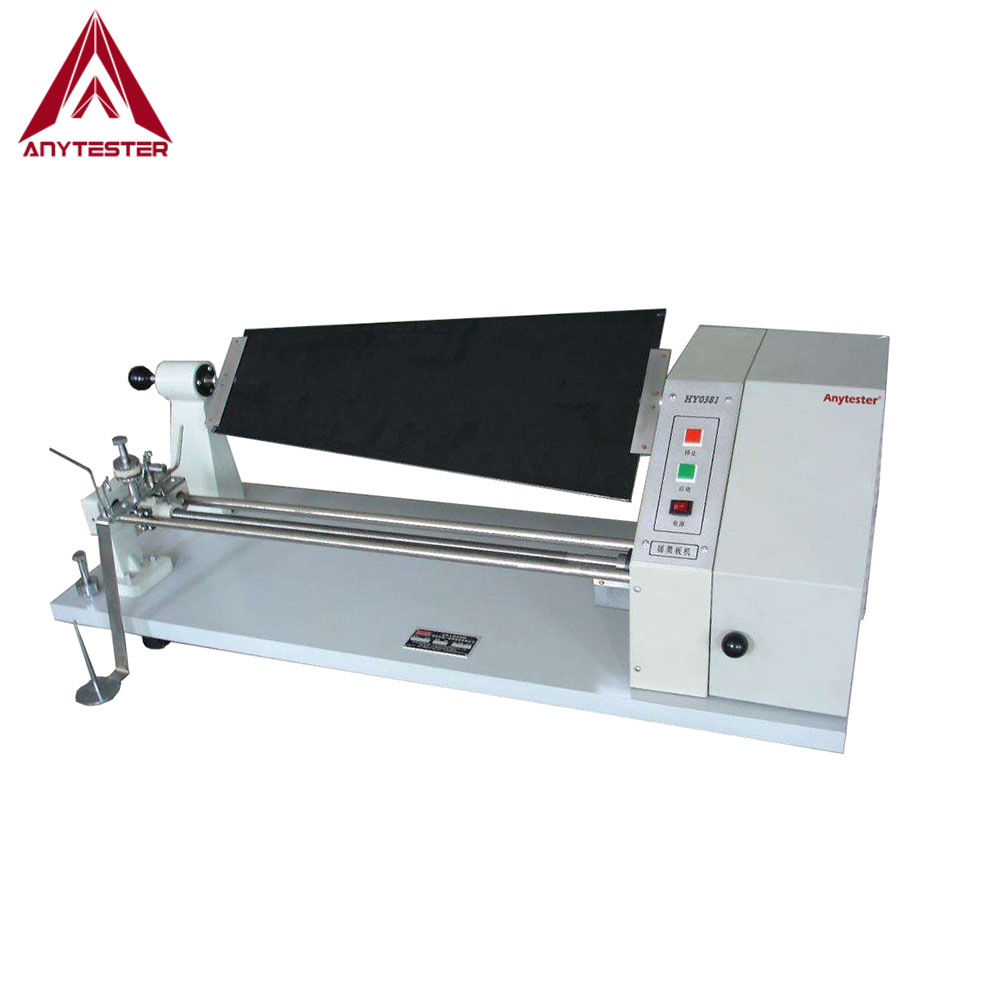

tapered

quadrate

Yarn winding density

7, 9, 11, 13, 15, 19wraps/cm

35, 40, 45, 50wraps/10cm

Rotational speed

10~400RPM (adjustable)

Power supply

AC220V 50Hz, 55W

Dimensions (L×W×H)

620×370×340mm

1000×370×300mm

620×370×340mm

Weight

30Kg

35Kg

30Kg
