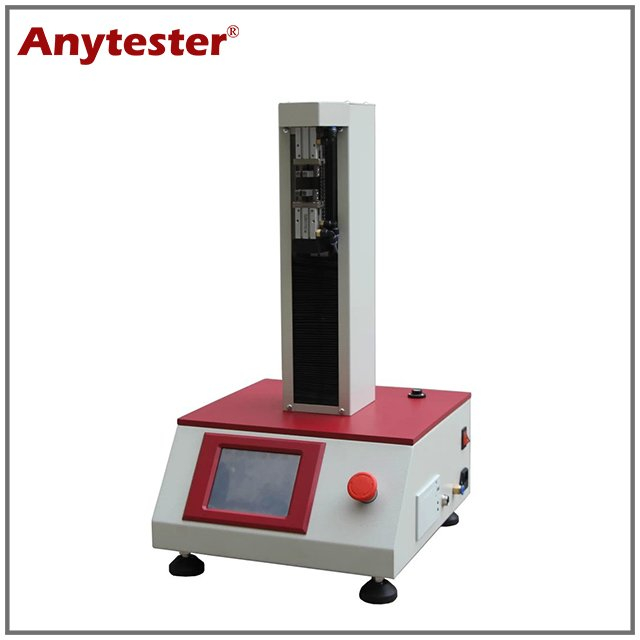

HY005 Single Fiber Strength Tester

HY005 Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.

Note: This Single Fiber Strength Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.

1.         Test functions:

a)         F1. Tensile test

b)        F2. Elasticity test at specified elongation

c)         F3. Repeated tensile test at specified elongation with settable two stop time

d)        F4. Elasticity test at specified load

e)         F5. Repeated tensile test at specified load with settable two stop time

2.         Dynamic data collection frequency more than 200Hz, will not lose peak value, more objectively reflect the material mechanics performance;

3.         LCD touch screen, software in both English and Chinese, easy and convenient to operate;

4.         High reliability and long service life;

5.         Linear density can be set freely;

6.         NXP 32-bit industrial-grade single-chip microcomputer control, 16 bit A/D converter, anti-interference is very good, data transmission fast;

7.         The test data (max, min, average, etc) display in each test;

8.         Pre-force can be set freely;

9.         The force calibration adopt digit calibrate, convenient and clear;

10.     With built-in mini-printer;

11.     With pneumatic clamp.
