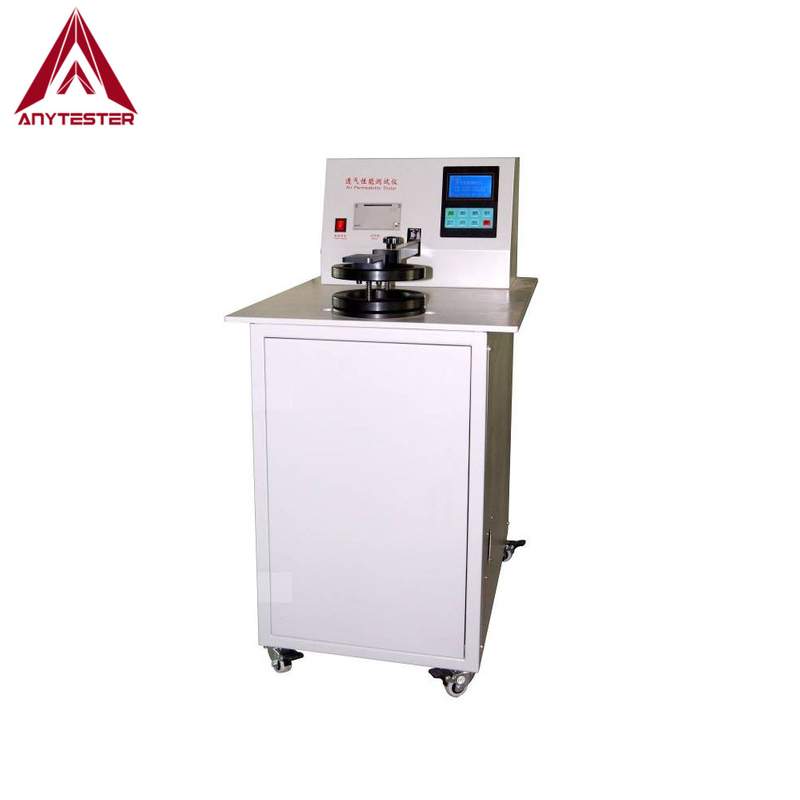

HY0461 Automatic Air Permeability Tester

HY0461 Automatic Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.

  • HY0461
  • Anytester
Availability:

Product Description

HY0461 Automatic Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.


Standards

ISO 9237, 7231, 5636

ASTM D737

BS5636

DIN 53887

JIS L1096

GB/T 5453, 13764


Features

★ Touch screen control, LCD display

★ Adopt high precision low pressure difference sensor, more accurate

★ Easy to operate, no need to cut sample

★ Provided with 8pcs of perforated plate to determine different textile

★ Automatically exchange different perforated plate, easy to operate and high efficient

★ Several test heads can be selected, the standard configuration is 20m2


Technical Specification

Model

HY0461

HY0461D

Measuring range

0.6~10000mm/s(L/m2.s)

Control mode

Digital

Automatic

Measuring accuracy

≤±3%

Test pressure

50~500Pa or customized

Test area/test rig

20cm2 (5cm2, 20cm2(Φ50mm), 25cm2, 38cm2(Φ70mm), 50cm2, 100cm2 optional)

Perforated plate

Φ0.5mm, Φ1.0mm, Φ1.5mm, Φ2.5mm, Φ4.5mm,

Φ8.0mm, Φ14.5mm, Φ26mm

Specimen thickness

5mm

Power supply

AC220V±10%, 50Hz

Power

400w

Dimensions

720×500×950mm

Weight

56kg
