AT106
Anytester
Availability: | |
---|---|
Product Description

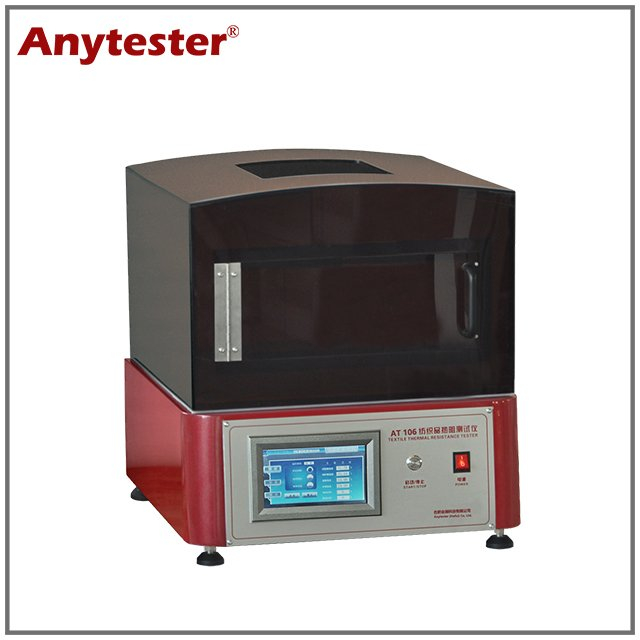

AT106 Textile Thermal Resistance Tester is used to determine the thermal resistance and physiological comfort of common fabric, knitted fabric, pile fabric, cushion and other thermal retention material.
Standards
ISO 11092 | ASTM D 1518 | GB/T 11048-2008 |
JIS L1096 | FZT 73016 |
Note: This Textile Thermal Resistance Tester can conform to but not limit to all the standards above, for more standards conformance, please contact us.
Features
★ Microcomputer control, large LCD display test result, easy to output and save
★ Multi-function instrument complies with many test standards including ISO 11092 and GB/T 11048.
★ Panel made by imported aluminum.
★ Metal buttons, sensitive operation, sturdy and durable.
★ 7 inches color touch screen display, direct display, operation is simple and convenient.
★ There is online software for this machine, user can test and print result by PC, also can print the single curve (optional).
★ Key Parts adopt STMicroelectronics multi-function board to process date
★ Excellent test repeatability and accuracy
Technical Specification
Model | AT106 Textile Thermal Resistance Tester |
Thermal resistance (RCT) measure range | 0~2.0m2·K/W |
Temperature range | RT+5℃~50℃ adjustable |
Repeatability | ±3.5% |
Temperature display resolution | 0.01℃ |
Preheating time range | 0~999999s adjustable |
Test time range | 0~999999s adjustable |
RCT resolution | 0.00001m2·K/W |
Test times | 30 lot×20 times |
Test plate size | 200×200mm |
Specimen size | 350×350mm |
Power supply | AC220V, 50Hz,220W |
Dimensions | 550×600×750mm |
Weight | 65kg |
