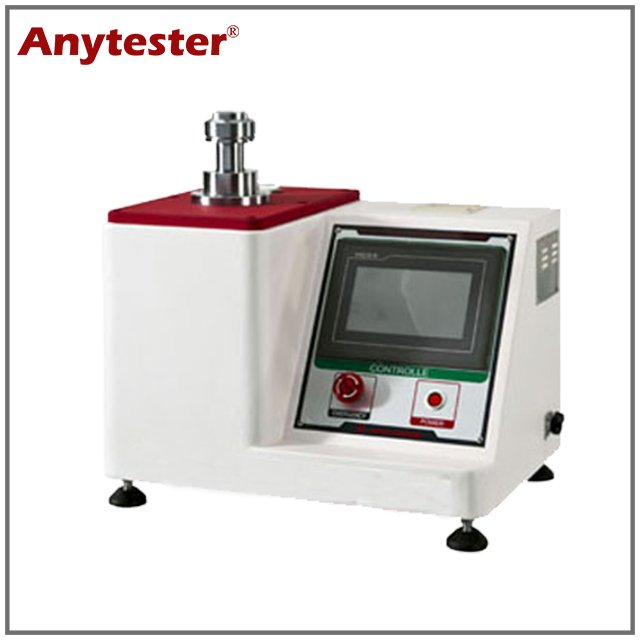

HY7853 leather cracking testing machine

HY7853 Leather Cracking Testing Machine is used to test the anti-cracking index in the thin leather and upper leather.
  • HY7853
  • Anytester
Availability:

Product Description

HY7853 Leather Cracking Testing Machine is used to test the anti-cracking index in the thin leather and upper leather.


Standards

ISO   17695, 3379

DIN   53325

BS3144,   3424

SATRA   TM24

GB/T   3903.40

QB/T 2712

Note: This Leather Cracking Testing Machine can conform to but not limit to all the standards above, for more standards conformance, please contact us.


Technical Specification

Model

HY7853

Leather Cracking Testing Machine

Load capacity

100kg

Sample fixed diameter

45 ~ 50mm

Ball diameter

20 ± 0.2mm

Counter

six figure strength   display

Crack height

0.05 ~ 25 mm

Test speed

12 ± 2 mm / min

Dimension

440 * 330 * 450 mm

Weight

50Kg

Power supply

220V, 50Hz


Standard Configuration

No.

Item

Quantity

1.

Main machine

1set

2.

Packing list

1pc

3.

Quality certificate

1pc

4.

User manual

1pc
