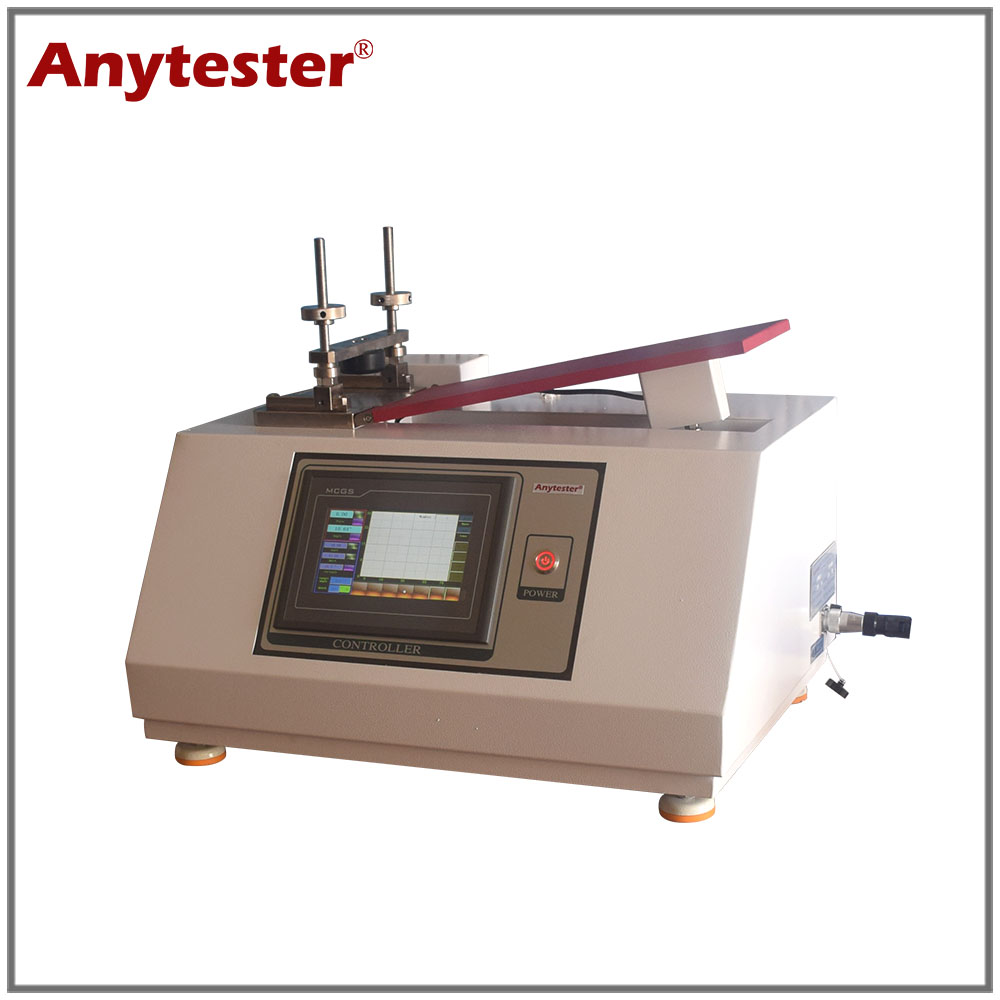

ISO 20344 Whole Shoe Sole Flexing Resistance Tester

Name: ISO 20344 Whole Shoe Sole Flexing Resistance Tester
Brand: Anytester
Rating: 5.0 (87 reviews)

HY7430 Whole Shoe Flexing Resistance Tester is used to determine the flexing resistance of whole shoes. Clamp the forepart of the footwear to the rigid base, flex the sole at a speed of 100mm/min until a force of 30N has been exerted, measure the flex angle at this point.

Model: HY7430
Brand: Anytester

Availability:


Inquire Add to Basket

Product Description

HY7430 Whole Shoe Flexing Resistance Tester is used to determine the flexing resistance of whole shoes.

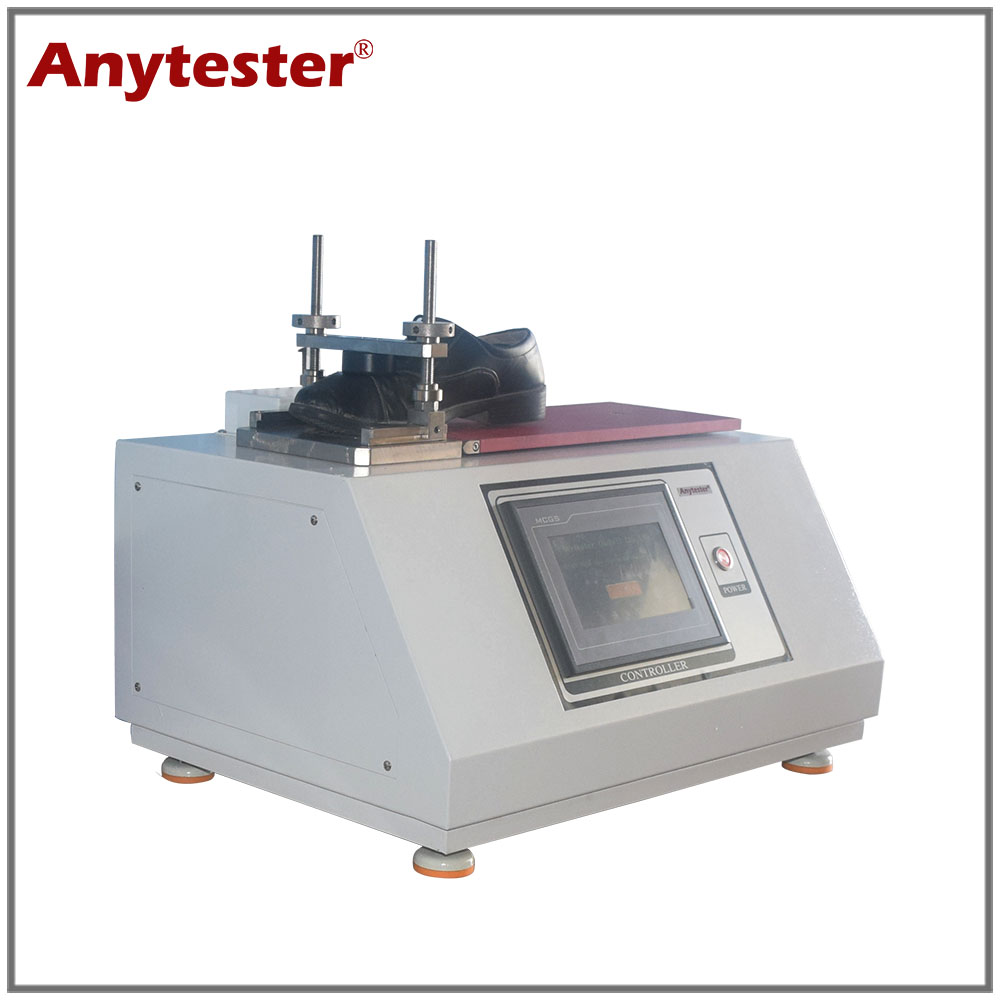

Clamp the forepart of the footwear to the rigid base, flex the sole at a speed of 100mm/min until a force of 30N has been exerted, measure the flex angle at this point.

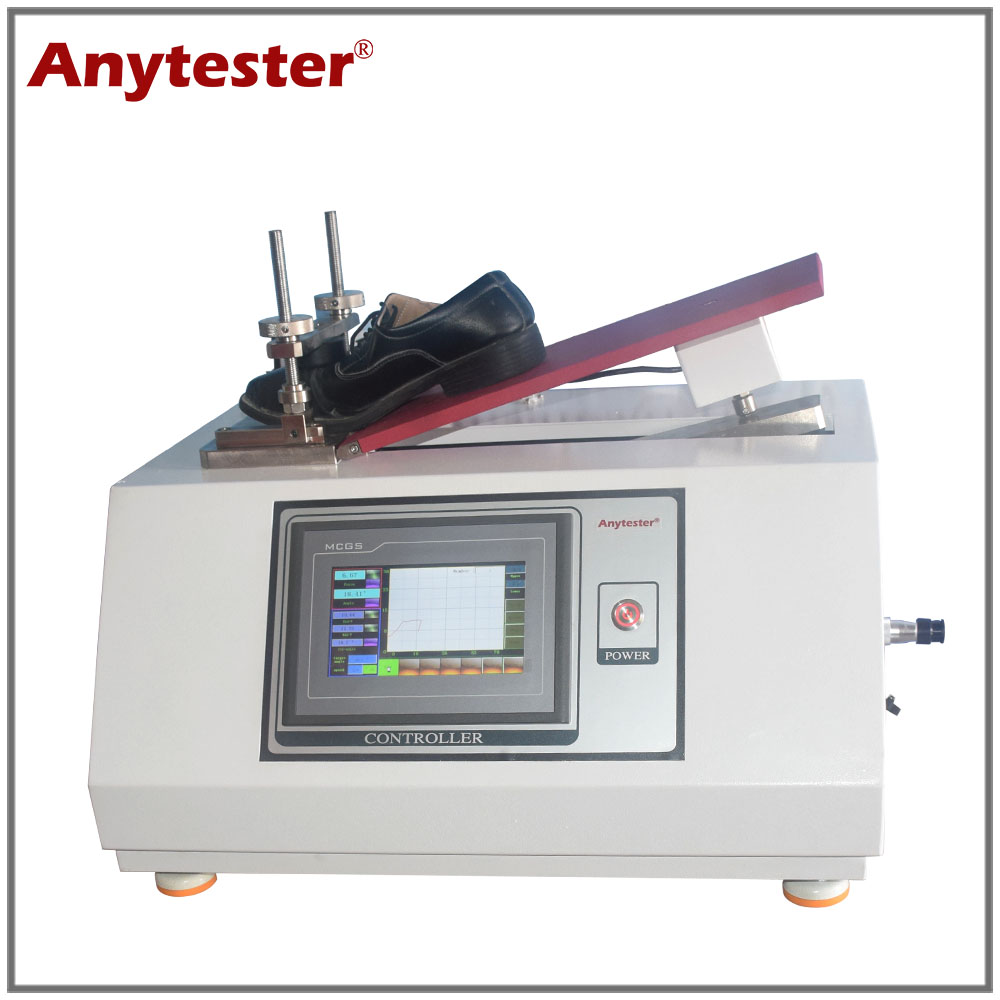

HY7430-4 whole shoe flexing resistance tester

Standards

ISO 20344

GB/T 20991-2007

Features

★ Large color touch screen control and display, menu operation mode, more convenient.

★ High precision servo motor control, the response time is short and the speed is uniform.

★ Desk type, nice appearance, easy to operate.

Technical Specification

Model	HY7430
Capacity	500N
Flexing speed	100±10mm/min adjustable
Specimen	French size 39 or size 42 British size 6 or size 8
Load	30N
Flexing position	1/3 of whole shoe
Angle resolution	0.1°
Force resolution	1/100000
Test method	Display angle at specified force or display force at specified angle
Dimension	750×450×650 mm
Weight	55kg
Power supply	AC220V, 50Hz, 550W
