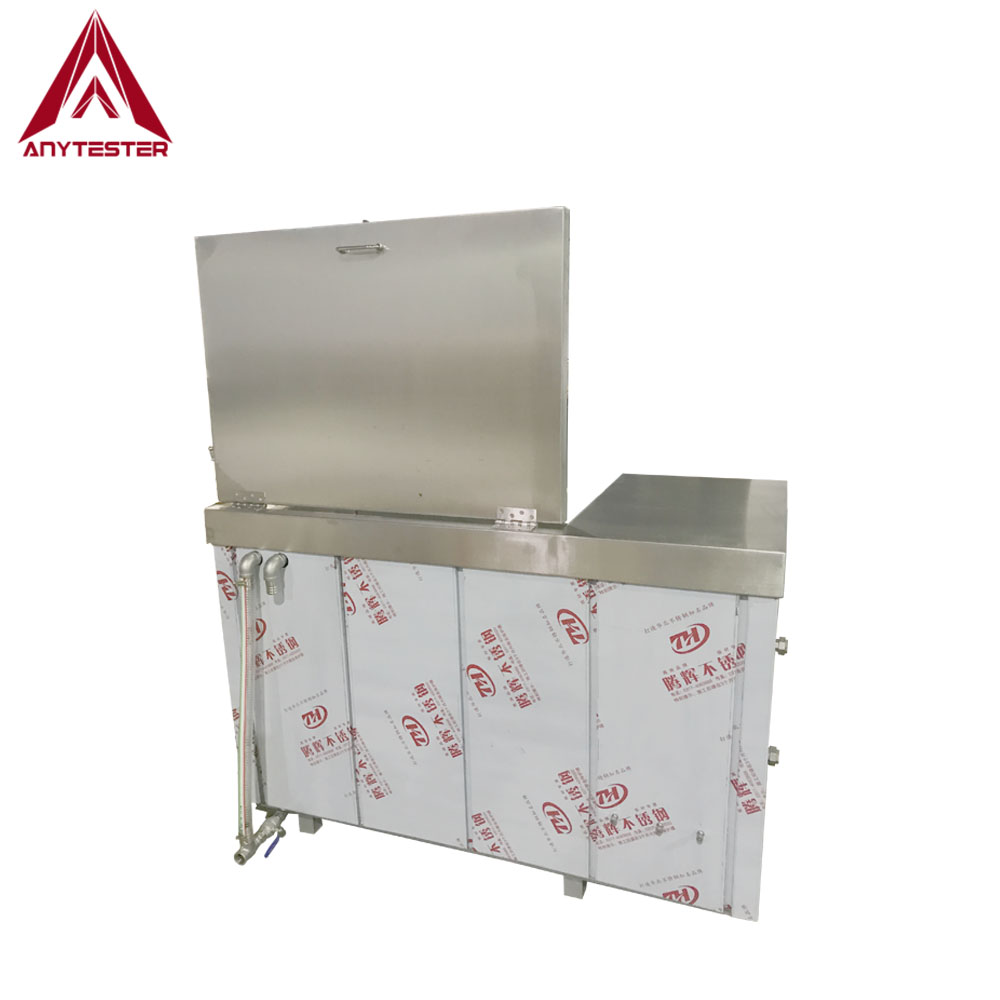

Water Tank for The Hydrostatic Pressure Tester

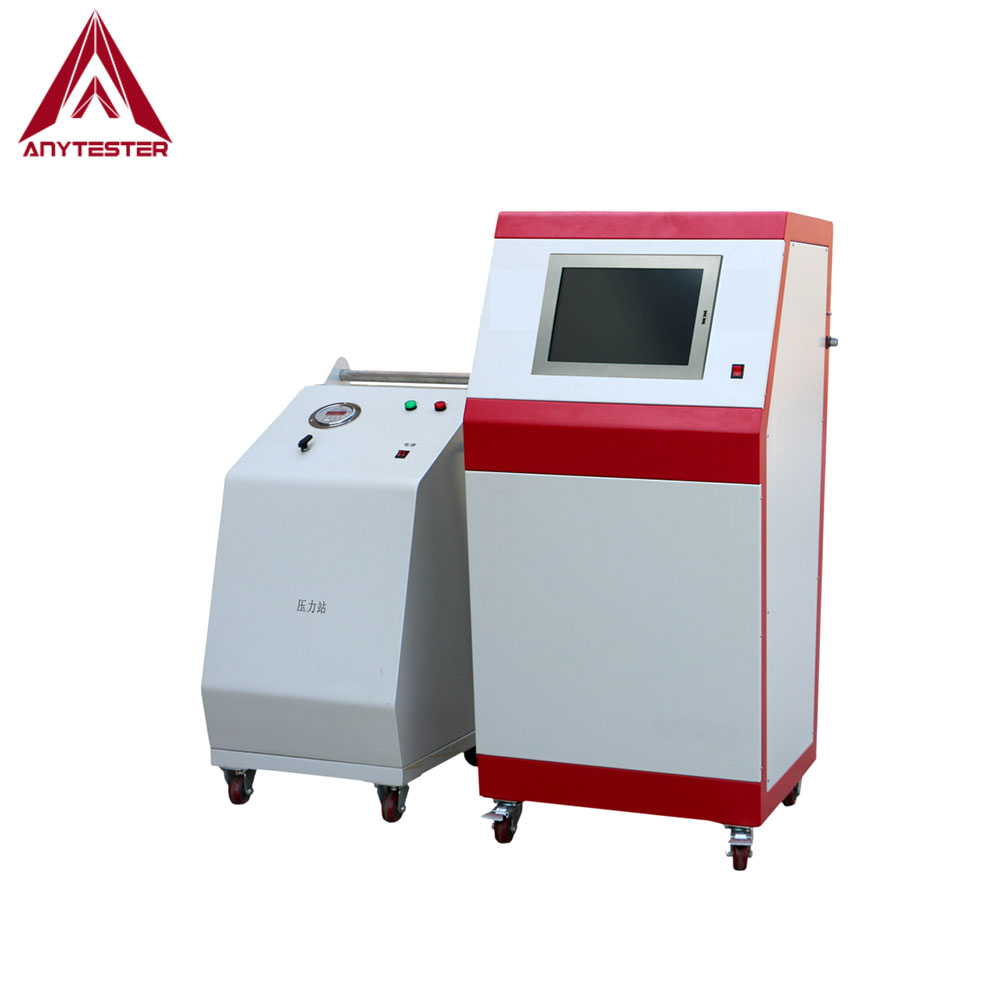

AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.
  • AT470

  • Anytester

Availability:

Product Description

AT470 Hydrostatic Pressure Tester is mainly used to determine time-to-failure of plastic pipe under constant internal pressure and also the resistance to hydrostatic pressure in a short time period.

Standard

ASTM D1598, 1599
ASTM F1335
ISO 1167, 9080, 1756, 13477
GB/T 15560, 18252, 6111
CJ/T 108

Note: For more standards, please contact us


Specification




Model
AT470
Pipe diameter range
Φ10~Φ2000mm
Working position
6 positions (1~50 positions can be customized)
Operation mode
Operation panel/PC control
Pressure range
0.2~10MPa (or customized)
Pressure resolution
0.001MPa
Pressure control accuracy
-1%~+2%
Measuring range
5%~100% F.S.
Timing range
1s~10000h
Timing accuracy
±0.1%
Display resolution
1s
Min. Time setting unit
min
Temperature control system
RT-95℃
(15~95℃ with refrigerating system)
Temperature control accuracy
±0.5℃
Main body material
304# stainless steel


Power supply
Pressure control main machine
AC220V, 50Hz
Pressure workstation
3phase, AC380V, 50Hz
Constant temperature tank
