AT06C Automatically Air Permeability Tester

AT06C Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head. AT06C Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.

  • AT106C

  • Anytester

Availability:
Inquire Add to Basket

Product Description

AT06C Automatically Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials), industrial paper (air filter paper, cement bag paper, industrial filter paper), leather, plastic, and chemical products to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.


Standards

ISO 9237, 7231, 5636

ASTM D737

BS5636

DIN 53887

JIS L1096

GB/T 5453, 13764


Features

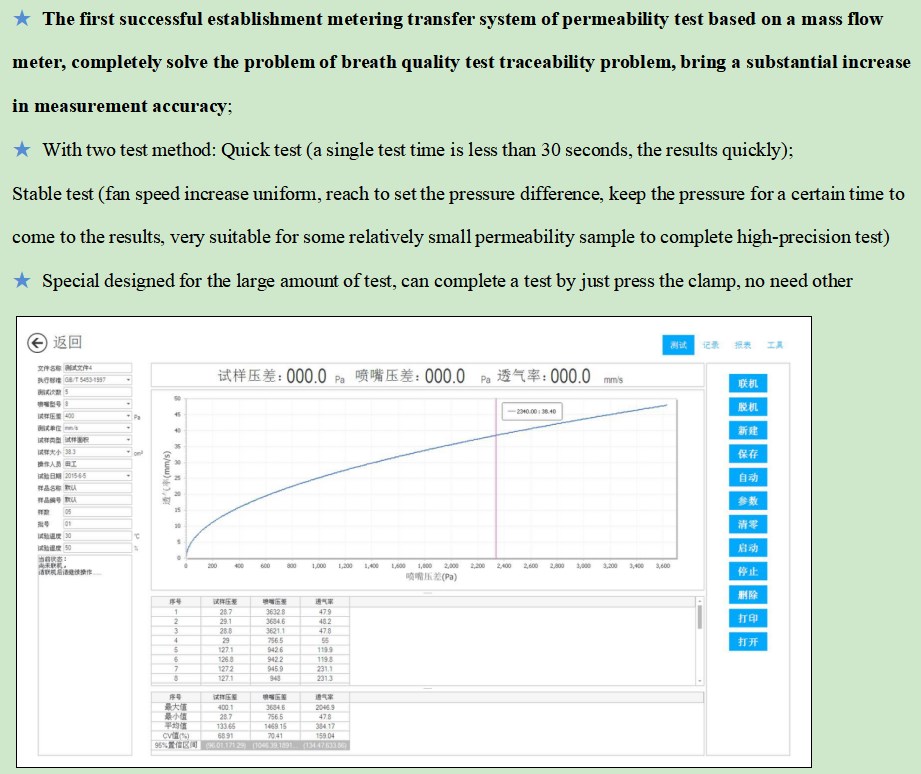

01

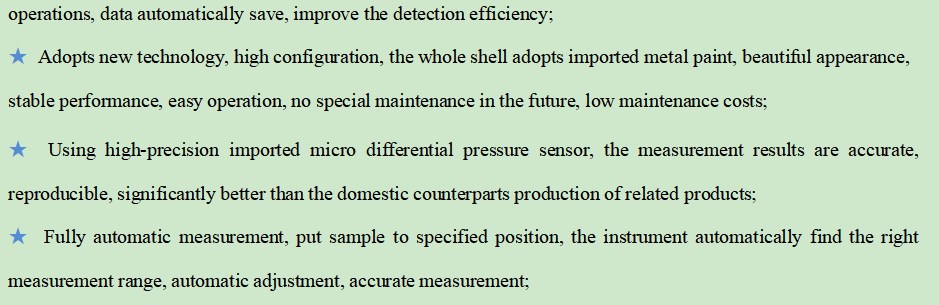

02

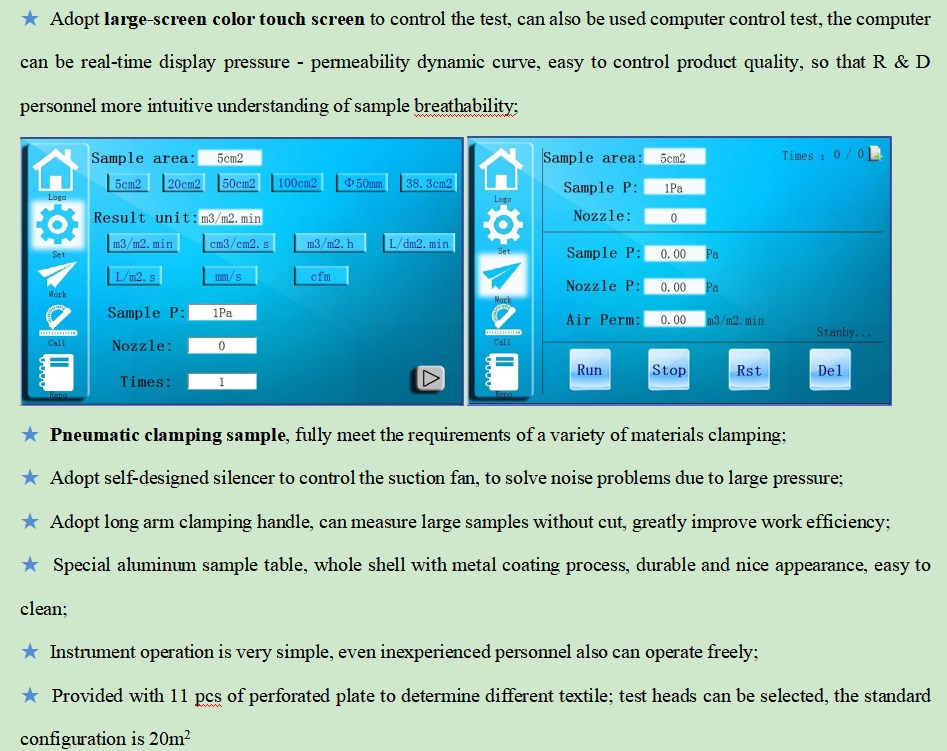

03

04

Technical Specification

Model

AT106C

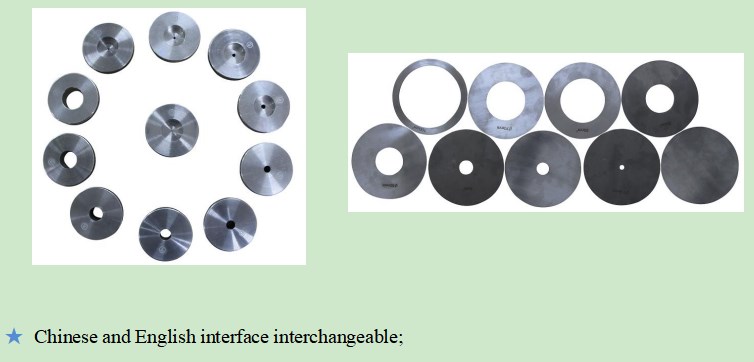

Perforated plate

Automatically

Measuring range

0.8~12000mm/s(L/m2.s)

Resolution

0.01mm/s

Measuring accuracy

≤±1%

Sample thickness range

≤ 8mm

Clamping method

Pneumatic clamping, automatically start the test after press the clamp

Suction volume adjustment

Auto dynamic adjustment by feedback data

Sample test area

20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm), 50cm2, 100cm2 optional)

Test pressure

1~4000Pa

Data processing capacity

Max. 3200

Test unit

mm / s, cm3 / cm2 / s, L / dm2 / min, m3 / m2 / min, m3 / m2 / h, dm3 / s, cfm

Power supply

AC220V±10%, 50Hz

Power

1500w

Dimensions

550×900×1200mm（L×W×H）

Weight

105kg
