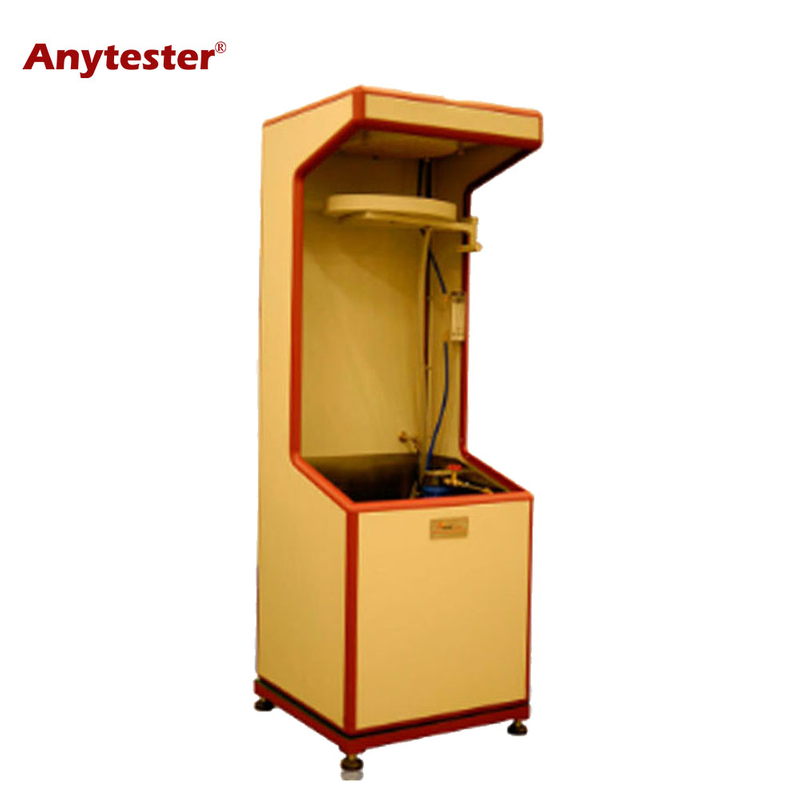

HY0810 Bundesmann Water Repellence Tester

HY0810 Bundesmann Water Repellence Tester is used to determine the resistance to the passage of simulated rain by fabrics being rubbed and rotated. Water which penetrates the fabric is measured and the test specimen weighed to determine the amount of water absorbed.

  • HY0810

  • Anytester

Availability:
Inquire Add to Basket

Product Description

HY0810 Bundesmann Water Repellence Tester is used to determine the resistance to the passage of simulated rain by fabrics being rubbed and rotated. Water which penetrates the fabric is measured and the test specimen weighed to determine the amount of water absorbed.


Standards

ISO 9865

BS EN 29865

DIN EN 29865

GB/T 14577




Features

★ It consists of 4 test cups

★ Centrifuge is optional to remove excess water from the fabric surface


Technical Specification

Model

HY0810

Test cup

4pcs

Rotate speed of test cup

6rpm

Rotate angle of test cup

100°

No. of spray nozzle

300pcs

Rain wiper speed

25rpm

Pressure to the fabric by the rain wiper

250cN

Height from spray nozzle to specimen surface

150cm

Rotate speed of centrifuge

700rpm

Power suply

AC220V, 50/60Hz, 2A

Dimensions

750×750×2100mm

Weight

185kg
