HY0461D
Anytester
Product Description
HY0461D Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.
Standards
ISO 9237, 7231, 5636 | ASTM D737 | BS 5636 |
DIN 53887 | JIS L1096 | GB/T 5453, 13764 |
Features
★ Touch screen control, LCD display
★ Professional software on PC for online operate
★ Adopt high precision low pressure difference sensor, more accurate
★ Easy to operate, no need to cut sample
★ Provided with 11 pcs of perforated plate to determine different textile
★ 7 units selectable, mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s
★ Several test heads can be selected, the standard configuration is 20m2
★ Chinese and English display languag selectable
★ Modified mechanical process, it’s more beautiful and durable.
Technical Specification
Model | HY0461D |
Perforated plate | Manual |
Measuring range | 0.1~12000mm/s(L/m2.s) |
Units | mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s |
Measuring accuracy | ≤±2% |
Test pressure | 1 ~ 4000Pa |

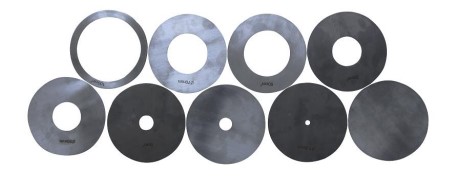

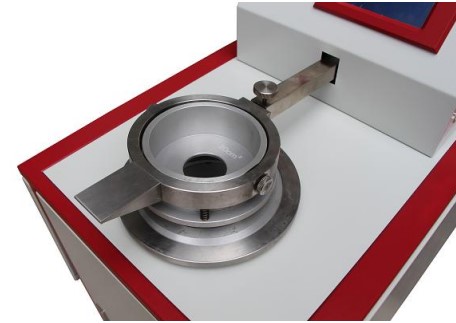

Test area/test rig | 20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm), 50cm2, 100cm2 optional) |

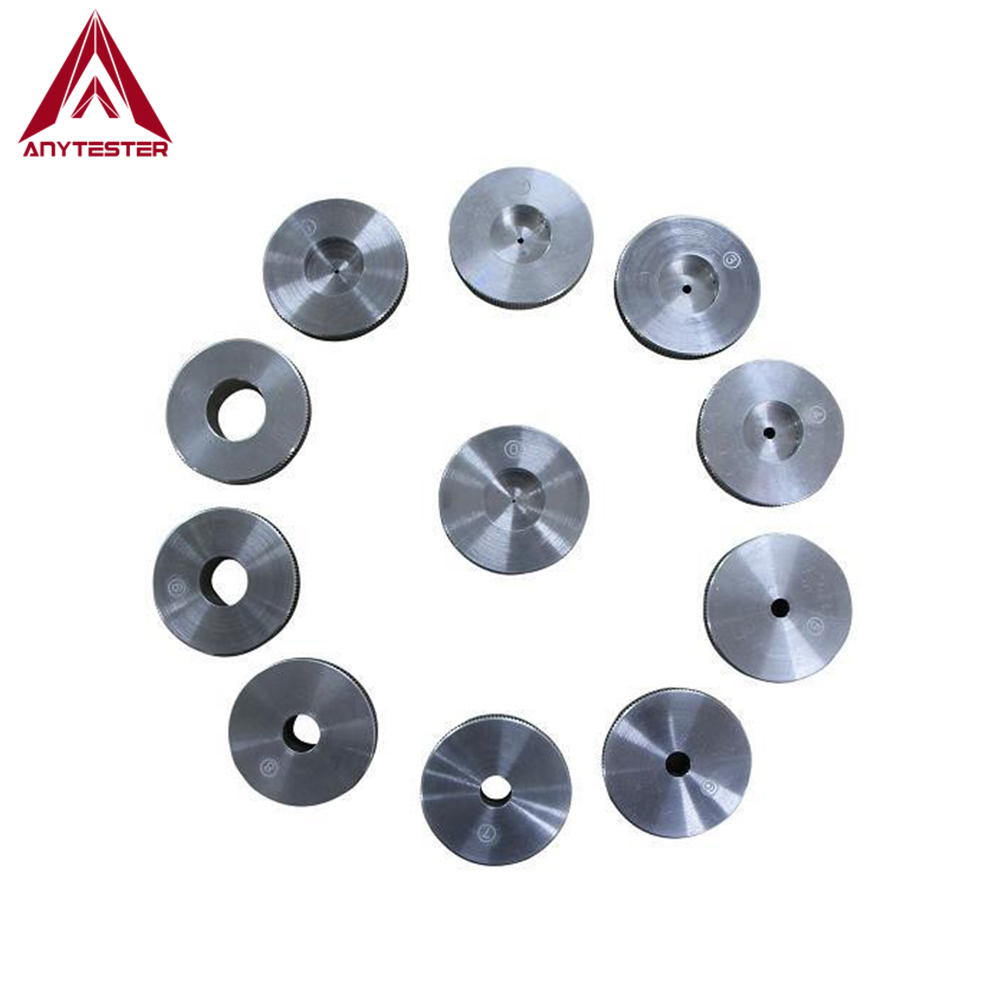

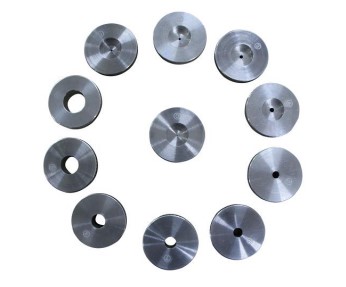

Perforated plate | Φ0.8mm, Φ1.2mm, Φ2.0mm, Φ3.0mm, Φ4.0mm, Φ6.0mm, Φ8.0mm, Φ10.0mm, Φ12.0mm, Φ16.0mm, Φ20.0mm |
Specimen thickness | ≤12mm |
Power supply | AC220V±10%, 50Hz |
Power | 2KW |
Dimensions | 1070×670×1080mm |
Weight | 75kg |
