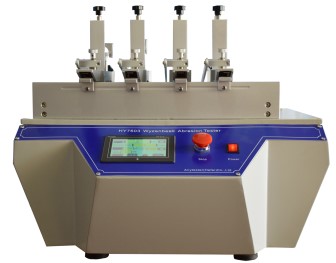

HY7603 Wyzenbeek Abrasion Tester ASTM D4157

HY7603 Wyzenbeek Abrasion Tester is used to determine the abrasion resistance of fabrics by the oscillatory cylinder method.

  • HY7603

  • Anytester

Availability:

Product Description

HY7603 Wyzenbeek Abrasion Tester is used to determine the abrasion resistance of fabrics by the oscillatory cylinder method.


Working Principle

The specimens are rubbed against a standard abradant or a wire mesh screen with a backward and forward motion over a curved surface under a specified tension and pressure. After a specified number of cycles, take out the specimens from the clamps on the machine and evaluate the abrasion performance of the specimens.


Standards

ASTM D4157




Features

★ Nice appearance, easy to operate.

1

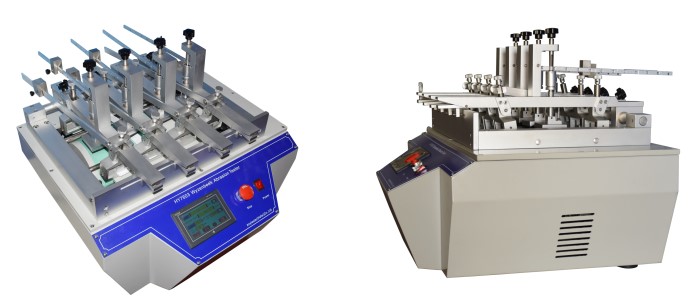

★ With 4 working positions, can test 4pcs of specimens at the same time;

2

★ The test table is made of aluminum alloy material, rustless, nice and durable. With 4pcs of sliding tension weights & tension levers and 4pcs of sliding pressure weights and pressure levers.

3

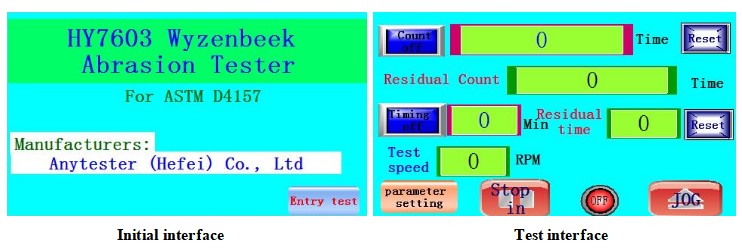

★ PLC touch screen control, easy to operate.

4

★ Two working modes selectable: counting mode or timing mode. The machine will stop at a set cycles or a set time.

5

Technical Specification

Model

HY7603

Test travel

76 ± 2 mm

Test speed

90±1 cycles/min, adjustable

Working position

4

Abrasion table

Curved surface: R 100 mm, length: 400 mm

Tension range

1~ 6 lbf adjustable

Tension adjustment weight

340g

Pressure range

1~3.5 lbf adjustable

Pressure adjustment weight

150g

Specimen size

45*230mm

Specimen number

16pcs

Dimensions

500*500*600mm

Weight

Approx. 80kg

Power supply

AC220V, 50Hz
