HY4420T
Anytester
Product Description

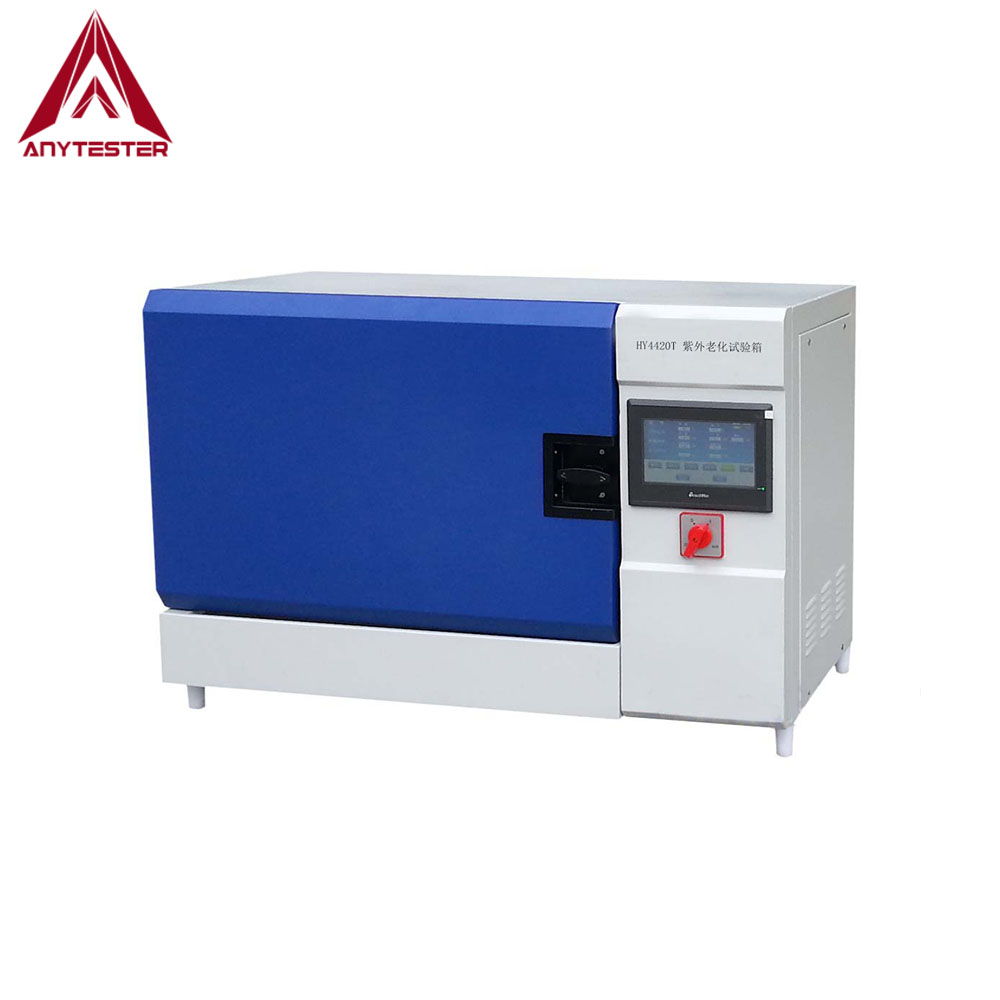

HY4420T Desktop Ultraviolet Accelerated Weatherometer is used to simulate ultraviolet radiation, rain spraying, condensation, temperature and humidity environment for accelerated ageing test of textile, rubber, plastic, paint, coating and other products.
Standards
ASTM D4329, D499, D4587, D5208, G154, G53 | ISO 4892-3, ISO 11507 | EN 534 EN 1062-4 |
BS3320, BS4303, BS2576 | GB/T 14522, GB/T 16585, GB/T 16422.3 | JIS D0205, SAE J2020 |
Features
★ It adopts 3pcs of 20w professional UV lamps as light source, it can set total illumination time, chamber temperature, spray time, etc.
★ Full stainless steel chamber, rustless and watertight.
★ With built-in water level switch, it will alarm and the machine will automatically stop when the water level is too low.
★ Large LCD touch screen operation, nice and more convenient.
Technical Specification
Model | HY4420T |
Temperature range | RT+5℃~60℃ |
Test time set range | 1h~99999h |
Spray time set range | 1min~99999min |
Spray interval set range | 1min~99999min |
Light source | UVA-340 or UVB-313 |
UV wavelength range | UVA: 315~400nm UVB: 280~315nm |
Lamp rated life | 1600h |
Lamp irradiance (new) | 0.9w/m2 |
Min. Distance between lamp and specimen | 50mm |
Speed of sample rack | 3.7cpm |
Spraying capacity | 2L/min |
Specimen size | 150mm×70mm |
Power supply | AC220V, 50Hz, 1.2kw |
Dimensions | 930mm×460mm×630mm (D×W×H) |
Weight | 72kg |
