LX Series Shore Hardness Tester

LX Series Shore Hardness Tester is used to determine the shore hardness of various material. With optional test frame, the test result will be reliable and stable.

  • LX

  • Anytester

Availability:
Inquire Add to Basket

Product Description

LX Series Shore Hardness Tester is used to determine the shore hardness of various material. With optional test frame, the test result will be reliable and stable.


Standards

GB/T 531, HG/T 2489

ISO 7619-1

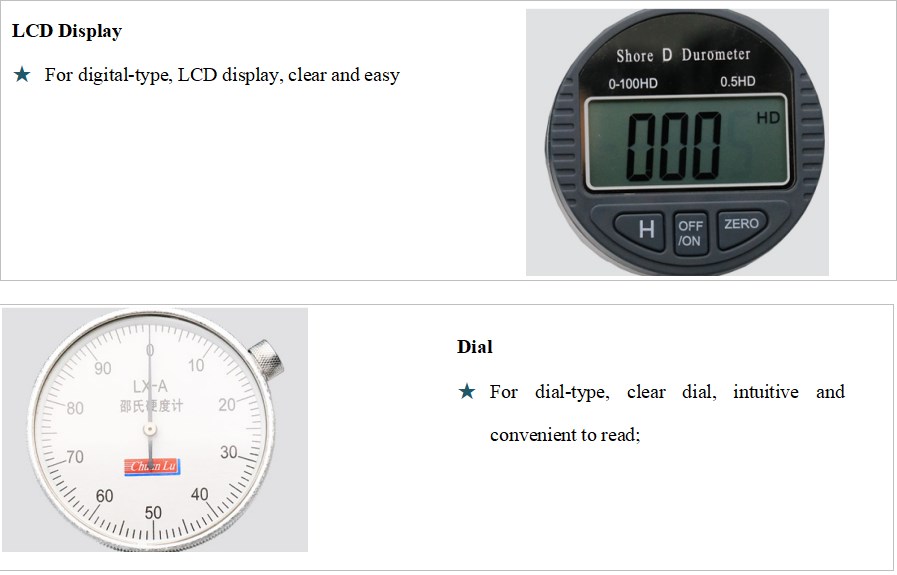

Features

1

2

Technical Specification

Model

LX-A

LX-C

LX-D

Display mode

Dial or digital

Applicable material

Low- and medium-hardness plastic

Leather

Various rubber

Polyester resin

Wax

Foaming

Foam

Sponge

Porous materials

Hard rubber

Hard resin

Acrylic

Glass

Thermal-plastic

Printing fiberboard

Measuring range

10~90HA

10~90HC

10~90HD

Travel of measuring head

0~2.5mm

Size of measuring head

¢0.79mm

SR2.5mm

SR0.1mm

Dimensions

115×60×25mm(W×D×H) (not including test frame)

Weight

150g (not including test frame)
