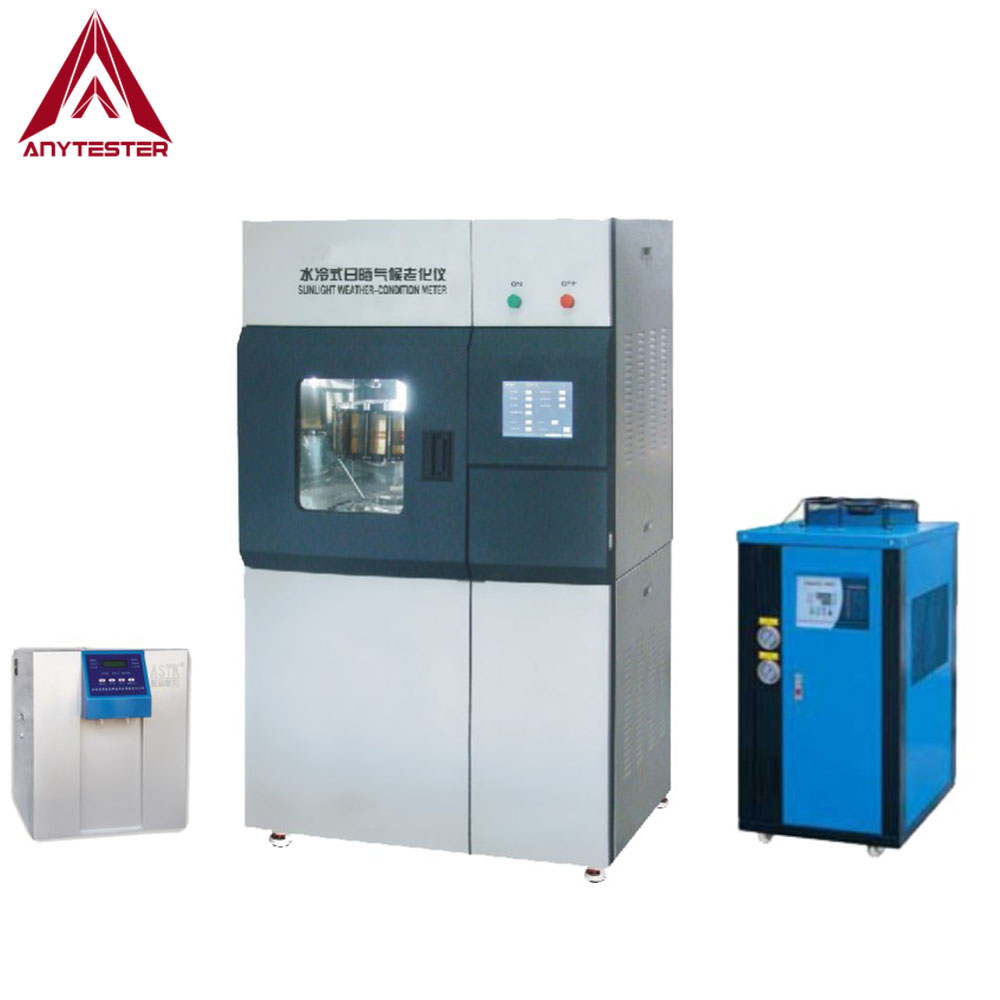

HY4410 Water-cooled Weather Conditions Meter is suit to determine the color fastness and aging to sunlight, weather resistance, compound color fastness to sunlight-sweat of colored textile, leather, leatherette, plastic, etc, by setting various parameters of irradiance, temperature, humidity, spray to simulate natural condition in lab. Be able to control irradiance real-time, automatically inspect and compensate irradiance, temperature, humidity.
ISO 105-B02/B04/B06, 11341, 4892-2, 03917
AATCC TM16, TM169
ASTM D2565, D4355, D4459, D6695, G155-1/155-4, G26
GB/T 12831, 15102, 15104, 16259, 16422.2, 1766, 18424, 1865, 4576, 8427, 9430
JIS L 0843
SAE J1885, J1960, J2212, J2412, J2527
★ Presetting various specifications, or customized programs, meet diverse range of standards, including AATCC, ISO, BS, JIS etc;
★ Touch screen, and build-in PLC, real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them;
★ KincoTM touch screen, and build-in PLC (KincoTM), real-time display the ongoing test’s graph, be able to presetting irradiance, temperature, humidity, and plot dynamic curve of them.
★ 4500W water-cooled xenon arc lamp system, accurately simulate sunlight spectrum. Irradiance auto- compensates system, control irradiance, temperature, and humidity timely through a closed loop.
★ Irradiation control, light irradiance sensor monitor, digital setting, automatic compensating system, stepless irradiation regulation.
★ Accurate chamber temperature control, irradiation temperature, and heater raise the temperature, air conditioning refrigeration system.
★ Ultrasonic humidification system makes spray water even and low noise. Saturated steam humidifying, industrial refrigerating machine dehumidifying, and close loop control the humidity.
★ Large amount of testing specimen, be able to hold as 3 times of specimen quantity as air-cooled machine in a test.
★ Custom program capability and storage for additional user-defined tests.
★ De-ionized water system to ensure purity of cooling water and spray water.
★ Each specimen holder has time recorder respectively. Ease to test different specimen in one test.
★ Multi-point inspection: malfunction alarm, self-diagnostic function, ease to maintenance.
★ Print the test result chart by stylus printer directly. No need support of PC.
Lamp power Supply
AC380V±5% 50Hz 9000W(Max)
4500W Water-cooled Long Xenon Arc Lamp
Rack Rotating Speed
Rack Outside Radius
224mm (Centered on the Xenon-arc Lamp)
Specimen Holder Exposure Area:
27 pcs（ISO）; 18pcs（AATCC）(Max)
Exposure Area of Specimen
Illumination cycle adjustable
Spray cycle adjustable
Each specimen adjustable timing
Chamber Temperature Range
Light Cycle：10％RH～85％RH ±5% RH
Dark Cycle：10％RH～98％RH ± 5% RH
Wide Bandwidth: (35～150)±1W/m2@300-400nm
Narrow Bandwidth: (0.800～3.000)±0.02W/m2 @420nm
Or specified by the custom with 340nm, 300~800nm
DI water Container
AC380V±5% 50Hz 9000W(Max)

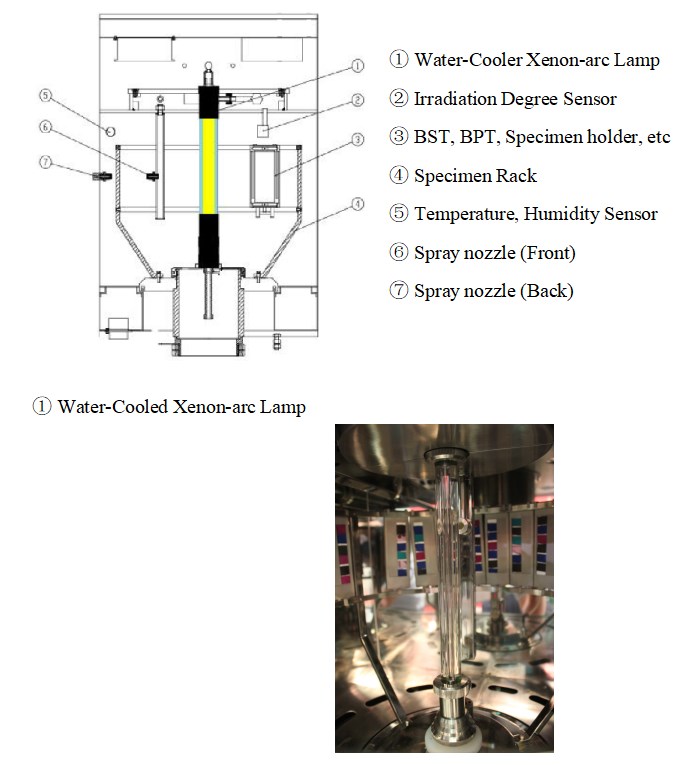

Structure inside the Exposure Chamber
