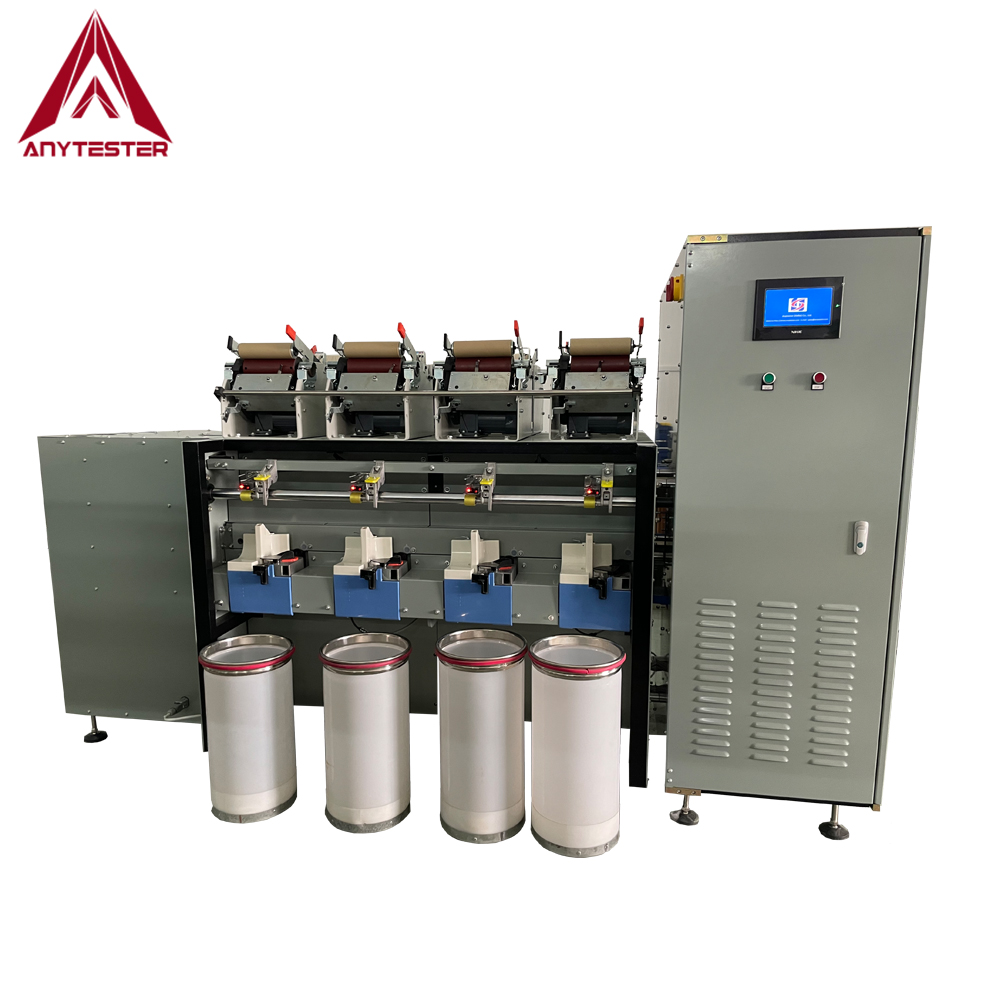

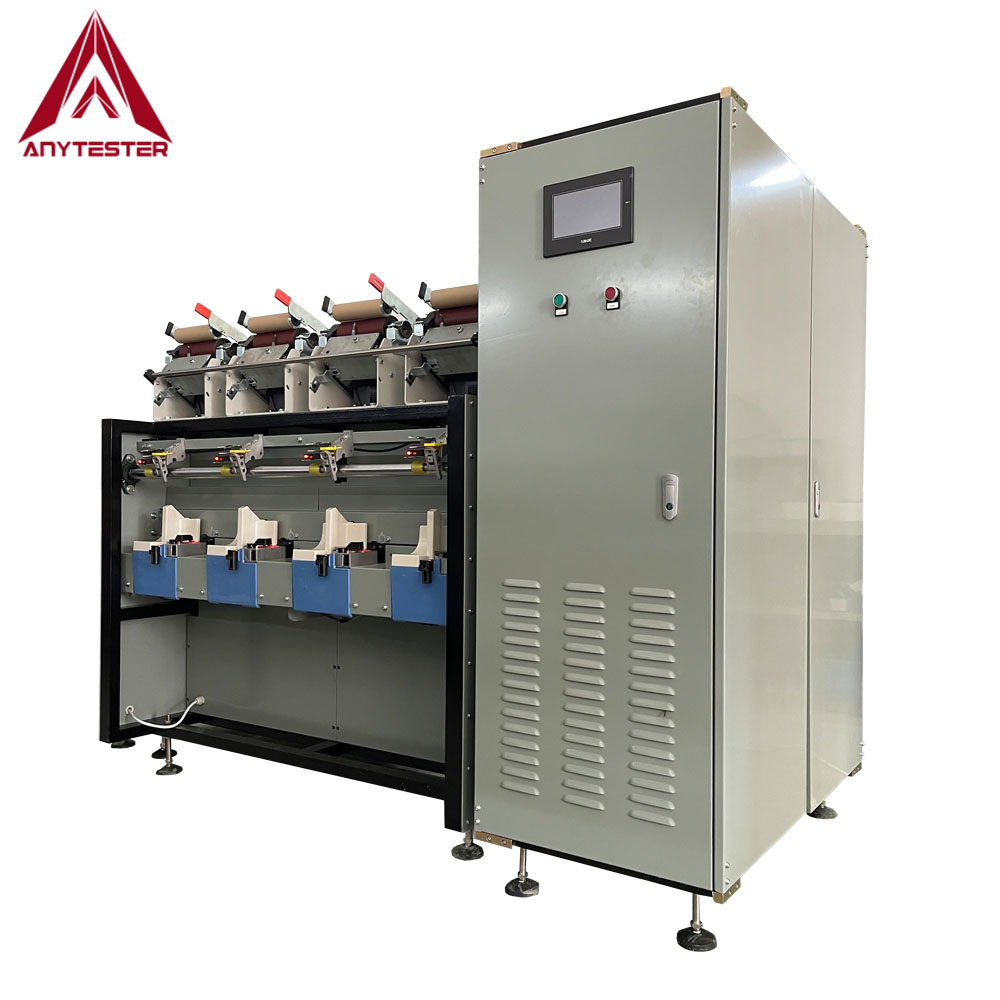

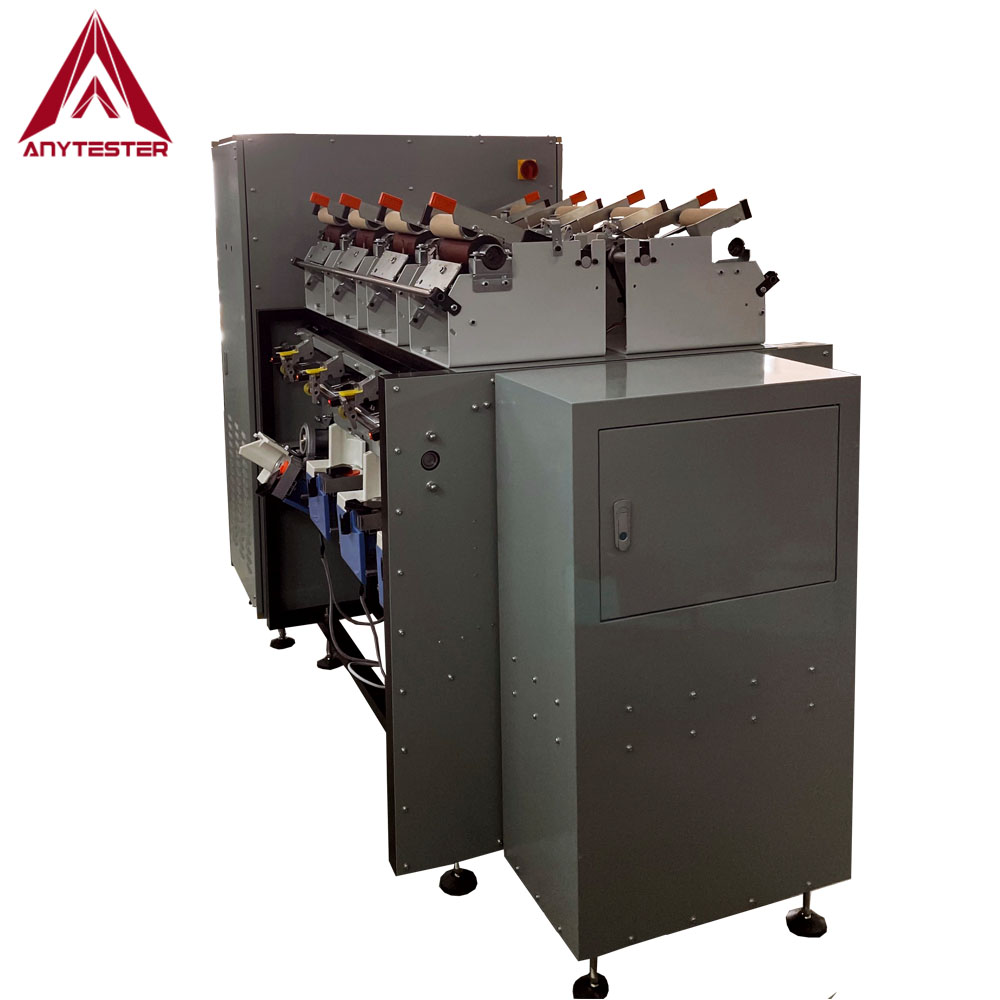

AT206R Laboratory Rotor Spinning Machine for Cotton

AT206R Laboratory Rotor Spinning Machine is part of the mini spinning system. Its mainly used in university, researching center etc. and it is used to convert fiber into yarn.

  • AT206R

  • Anytester

Availability:

Product Description

AT206R Laboratory Rotor Spinning Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to convert fiber into yarn.


Video

Features

★ It adopts touch screen and PLC control.

★ Imported frequency converter of high efficiency.

★ Mini type machine, save researching cost and easy to operate and maintain.

★ Can be used for cotton fiber or wool fiber (alternative) with different parts


Technical Specification

Model

AT206R

Spindle number

1, 2, 3, 4 or customized

Fiber type

Cotton

Revolving cup speed

30000rpm

Combing roller

6000rpm

Drafting range

30 ~ 250

Coiling speed

20 ~ 110m/min

Fiber length

22 ~ 42 mm

Output capacity

0.25 ~ 1 kg per hour or customized

Power

220V/380V, 50/60Hz, 640W

Dimension

800*600*1700mm
