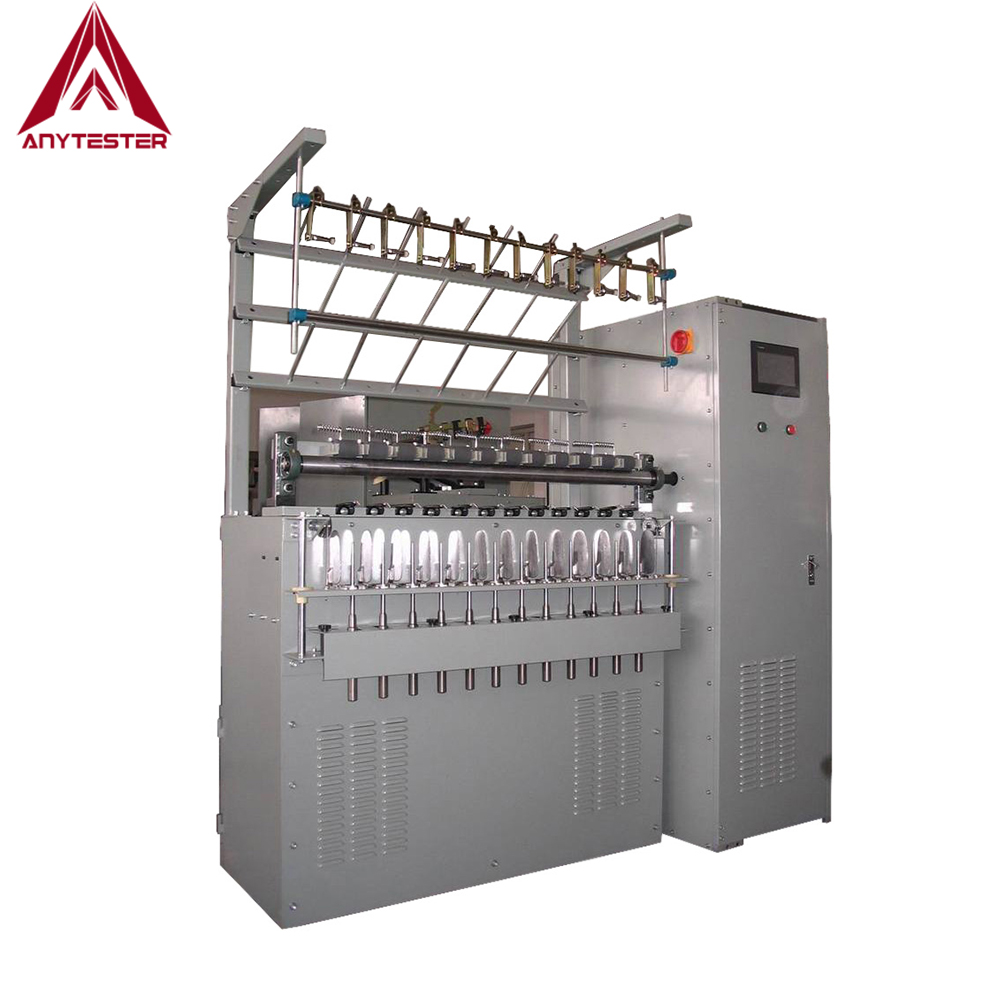

AT208 Laboratory Twisting Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to twist plied yarn into folded yarns through ring spinning and twisting.
AT208
Anytester
Product Description
AT208 Laboratory Twisting Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and it is used to twist plied yarn into folded yarns through ring spinning and twisting.
Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Technical Specification
Model | AT208 |
Spindle number | 6 or 12 |
Spindle length | 205mm |
Spindle speed | 5000~20000 RPM |
Spindle gauge | 42mm |
Roller diameter | 25mm |
Ring diameter | 38/42/45mm |
Output capacity | 0.25 ~ 1kg/h |
Max. output speed | 42m/min |
Twist range | 1200 ~ 2000 twist/m |
Power | 220V/380V, 50/60Hz, 850W |
Dimension | 1200*800*1600mm |
