AT209 Lab Yarn Cone Winding Machine

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.

  • AT209

  • Anytester

Availability:

Product Description

AT209 Lab Cone Winding Machine is a specified equipment in the textile industry as the bridge from the spinning of yarn to the manufacturing of fabric. It is the final process in the spinning of yarn to use tube yarn/cop to make bobbins/cones of large capacity for the manufacturing of fabric. The purpose of winding is to produce bobbin/cones of large capacity and to eliminate faults on yarn. For other purpose of loose winding before dyeing or compact winding after dyeing, please inform us before ordering.


Features

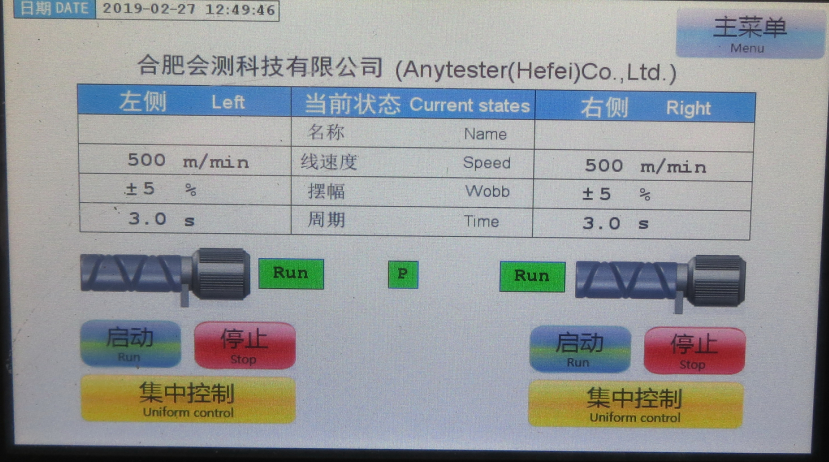

1. Two control modes: uniform control on touch screen (optional) for spindles on each side and independent control on control panel for each spindle;



2. Automatic length setting up to 999999 meter;

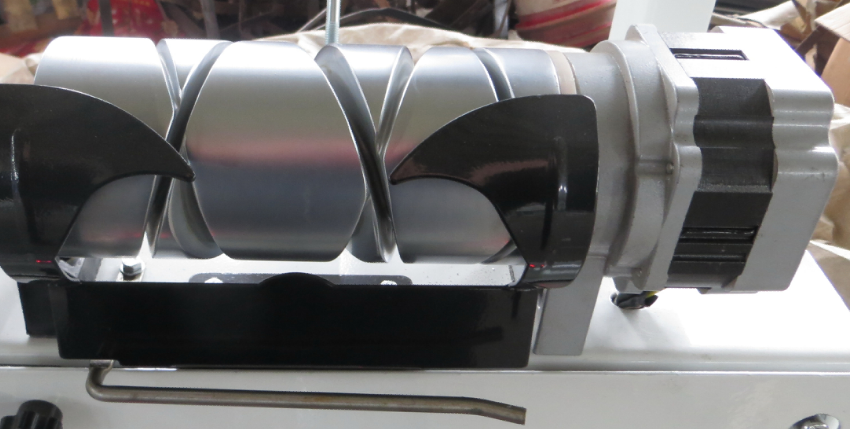

3. DC brushless motor to independently drive each grooved drum with adjustable winding speed;


  4. Optical yarn breaking detector for each spindle;

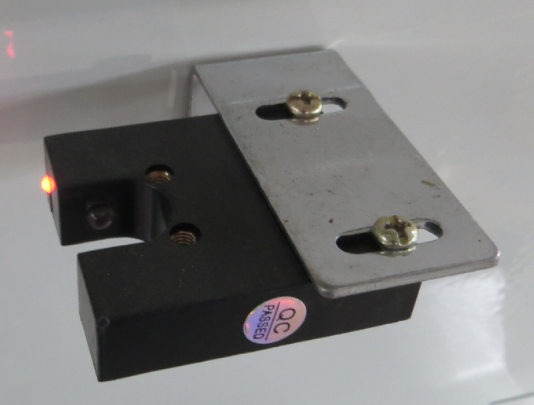

Optical Yarn-breaking Detector

5. Microcomputer controlled anti-aliasing;

6. Optional knotter and optional electronic yarn cleaner;

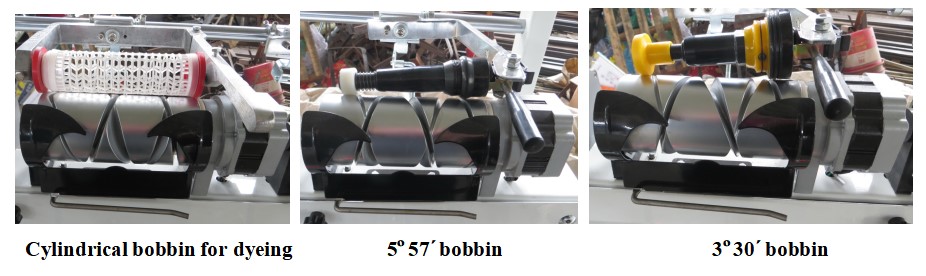

7. Optional bobbin clamps for different bobbins;

001

NOTE-Please inform us the bobbin type that you use before order, so we can supply the right bobbin for you.

Technical Specification

Model

AT209

Number of spindles

4, 6, 12, 24, 36, …, 108, 120

Grooved drum

O/D82mm

Pitch: 2.5×147

Take-up package

3º30´, 4º20´,5º57´,9º15´or cylindrical

Max. package diameter

¢280mm

Max. length setting

999999 meter, electronic setting

Drive mode

DC brushless motor with adjustable speed

Max. winding speed

1100meter/minute

Yarn-guiding traverse

Standard 147mm

Radial anti-aliasing system

Microcomputer control

Rated power

60W/spindle at max. speed

Power supply

AC220V 50Hz, single-phase
