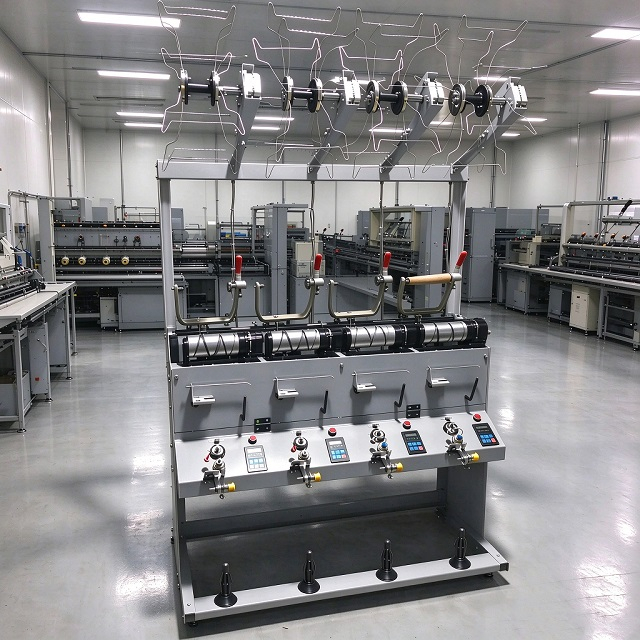

AT209M Multifunctional Yarn Winding Machine

AT209M Multifunctional Yarn Winding Machine is able to wind bobbin yarn to bobbin yarn, bobbin yarn to hank yarn and hank yarn to bobbin yarn. It is widely used to wind cotton yarn, chemical fiber, filament, low stretch yarn.

Features:

★ Double points tension control system with micro motors, uniform yarn tension. It is appropriate for high speed waxing winding and easy to operate.

★ This machine can be set the length of winding; When there is broken yarn it will stop automatically; when yarn is fully filled, it will also stop; also, it has the function of slow start.

★ High-speed creel with gas spring, which can keep constant winding pressure. The creel is stable and reliable. And it will make the loose bobbin be suitable.

★ The machine has the device to protect yarn, our adjustable block yarn sheet metal can prevent the yarn be a mass.

★ This machine assemble with grooved drums (0°，3°30’，4°20’，5°57’，9°15’), this kind of Ni-P alloy grooved drum has optimized groove shape which have the advantages of good wear resistance and static elimination.

★ Brush-less DC motor with longer axis, convenient to adjust the winding speed.
