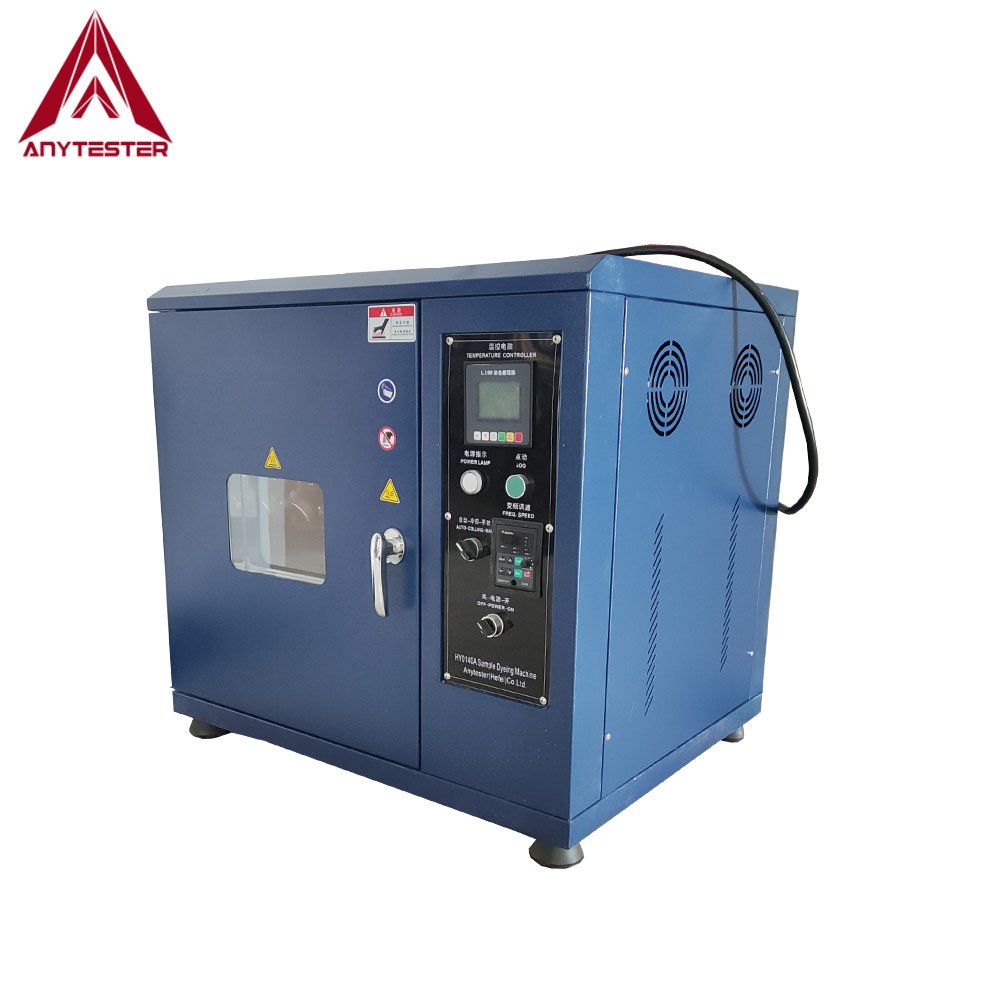

AT272 Series Infrared Lab Dyeing Machine (original model HY0140) is the newest infrared lab dyeing machine. It combines the advantages of common infrared machines and high temperature glycerol machines; also it overcomes their deficiencies of large material consumption and pollution.
Availability: | |
---|---|
Application
AT272 Series Infrared Lab Dyeing Machine (original model HY0140) is the newest infrared lab dyeing machine. It combines the advantages of common infrared machines and high temperature glycerol machines; also it overcomes their deficiencies of large material consumption and pollution.
Product Description
★ Intelligent design for chemical lid, easy to add dose chemicals during the dyeing process without opening the lid (optional)
★ Equipped with a programmable intelligent computer control
★ Up to 64 test program settable
★ Adopt solid state relay to control temperature, makes it more accuracy and uniform
★ It use infrared heating system which is low power consumption, no smoking pollution and loss of glycerol, it has good thermal insulation effect and is effective in saving energy and costs.

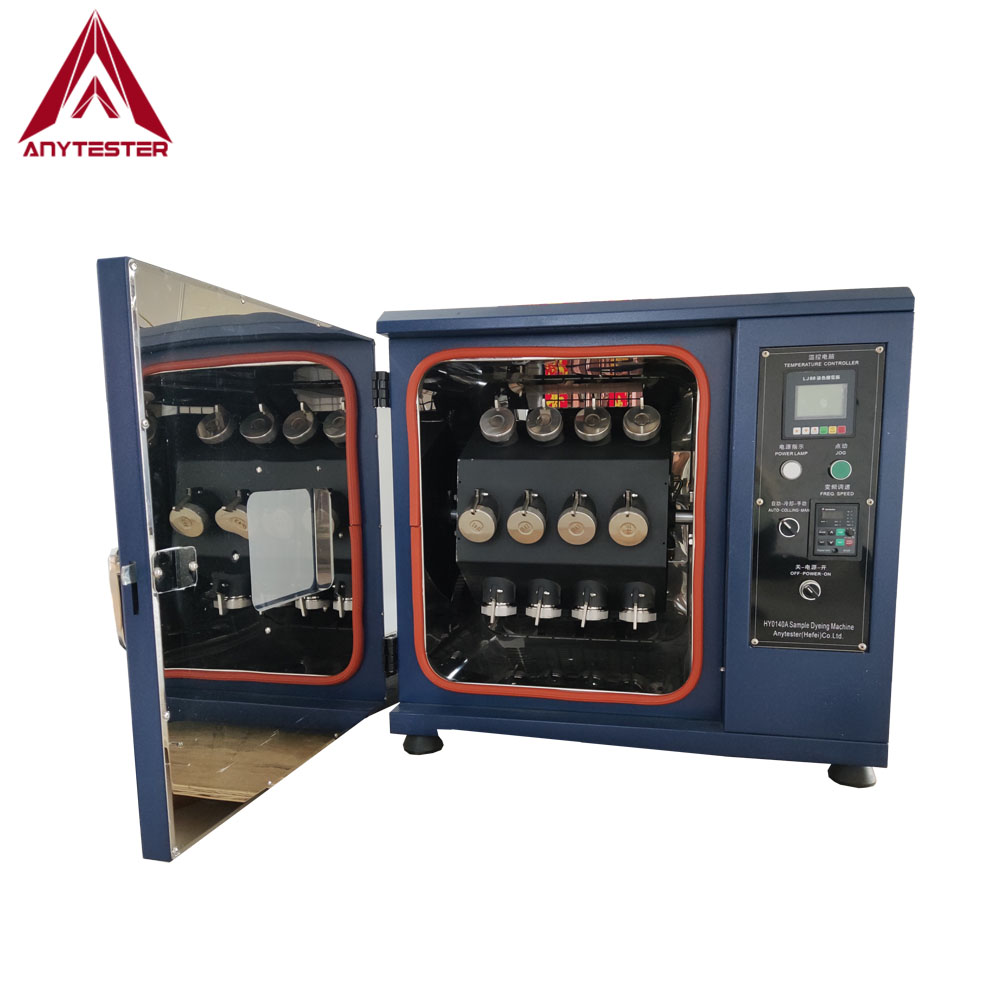

★ 360o tumbling rotation make the dyeing more uniform and is widely used for all fabric
★ It used air cooling system without using water and cut down the cost.
★ It can work at different liquor ratio from 1:5 to 1:100. It can be matched with spray dyeing machine.
★ The body is made of stainless, good appearance and durable.
★ Different working position and dyeing pot volume selectable.
Specification
Model | AT272 Series |
Dyeing pot numbers | 12, 16, 18, 24 selectable |
Dyeing pot volume | 200ml, 300ml, 350ml, 450ml,500ml selectable |
Temperature range | RT.~ 140oC |
Max. heating rate | 5oC/min |
Temperature accuracy | ±0.5 |
Liquor ratio | 1:5 ~ 1:100 |
Rotation speed | 0 ~ 60 rpm |
Heating system | Infrared |
Cooling system | Air |
Power supply | 220V, 50Hz, |
Dimensions | 660*680*780mm |
Weight | 120kg |
